Features:
- Analog inputs are short circuit secured to ZP or +24 V
- 8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
- Input shunt resistors protected to 30 V by PTC resistor

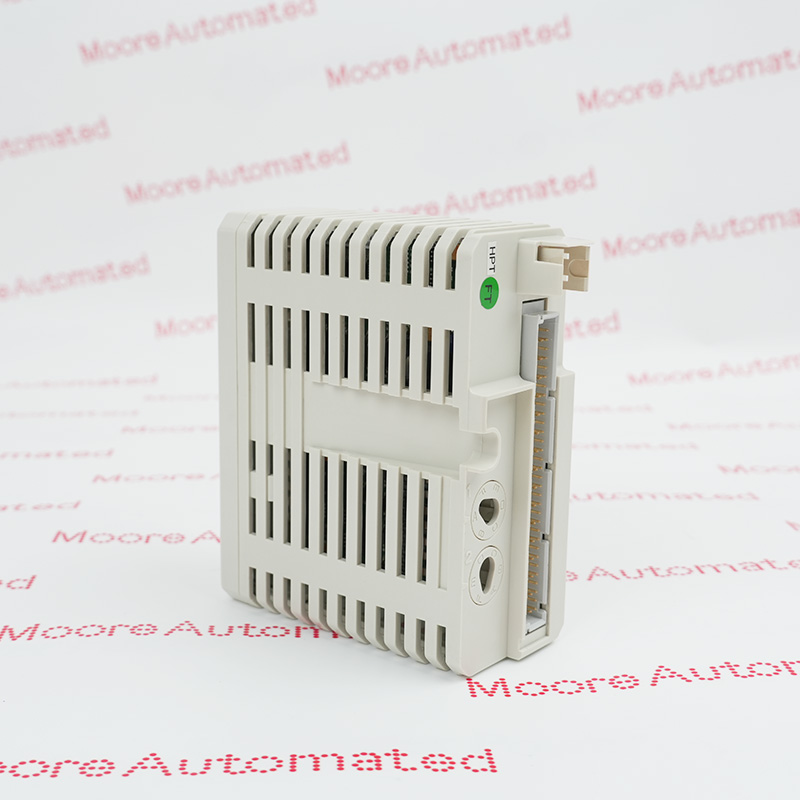

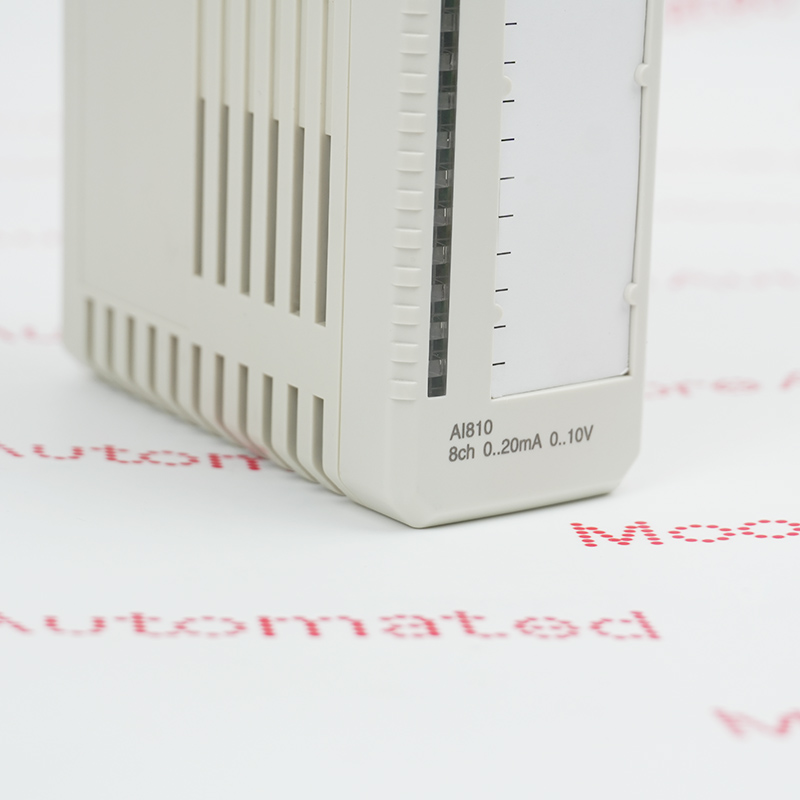

The AI810 analog input module has 8 channels. Each channel can be either a voltage input or a current input. The current input can withstand a transmitter power supply short circuit of at least 30V DC without damage. Current limiting is achieved by a PTC resistor. The input resistance of the current input is 250 ohms (including the PTC).
The voltage input can withstand overvoltage or undervoltage of at least 30V DC. The input resistance is 290k ohms. The transmitter power supply can be connected to L1+, L1- and/or L2+, L2-.
The AI810 3BSE008516R1 ABB Analog Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI810 3BSE008516R1 Analog Input Module maunal(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB AI810 3BSE008516R1 works by converting analog electrical signals from field instruments into digital data that the control system can process. Field sensors and transmitters (such as temperature, pressure, or flow transmitters) typically generate standardized current signals (typically 4–20 mA). The AI810 3BSE008516R1 receives these analog signals through its input channels and processes them using internal signal processing circuitry, including filtering and amplification stages. The processed analog signals are then converted into digital values by an analog-to-digital converter (ADC). These digital measurements are transmitted to the controller via the S800 I/O system bus for real-time monitoring, control algorithms, and process diagnostics in automation systems.
Sensor Data Acquisition: Used to read standard signals from field devices such as temperature transmitters, pressure sensors, and flow meters.
Industrial Process Control: Commonly used in DCS (Distributed Control Systems) and PLC environments, particularly ABB Ability System 800xA and Advant OCS.
Industry-Specific Applications: Commonly found in high-reliability industries such as oil and gas, chemical plants, and water treatment plants.
