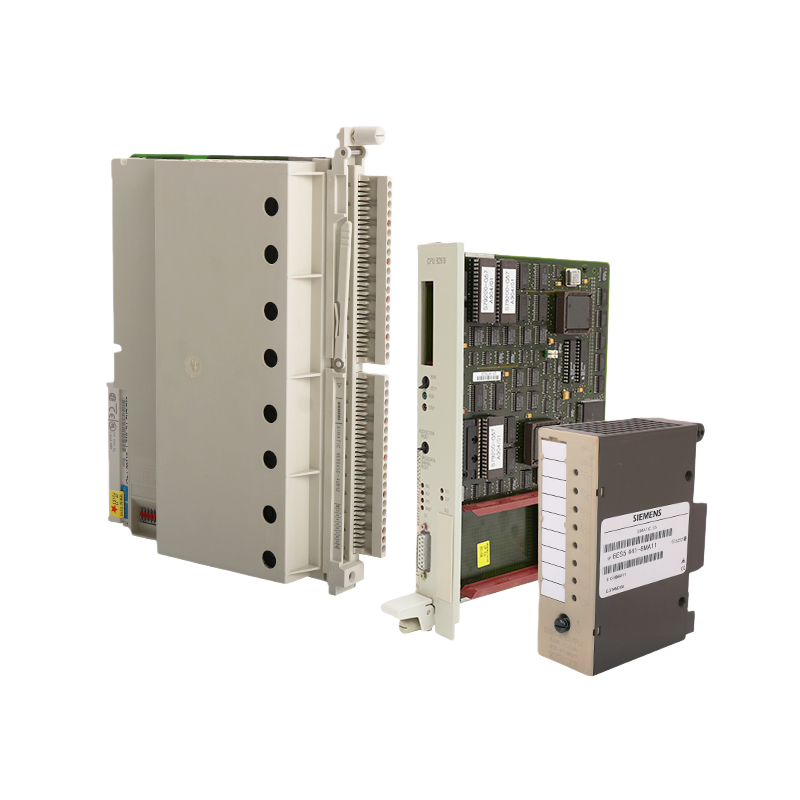

Siemens Simatic S5 Control System Modules and Spare Parts

Moore Automated guarantees the operational integrity of global industrial facilities by supplying reliable access to legacy automation spare parts. With a proven legacy spanning twenty years, we excel in sourcing high-performance components for Distributed Control Systems and Programmable Logic Controllers.

The Siemens Simatic S5 platform operates as the foundational control architecture across numerous heavy manufacturing sectors. It consistently handles high-intensity mechanical actuations and complex process workflows. Procuring discontinued electronics rapidly mitigates severe equipment downtime risks during critical system maintenance.

By combining extensive industry knowledge with a rigorously tested inventory, we ensure manufacturing enterprises maintain continuous production outputs. Our rapid global logistics network serves as a vital resource for plant managers across more than 65 countries, preventing prolonged operational halts.

Maintaining this robust infrastructure relies entirely on precise data exchange across the industrial backplane. Input and output components function as the direct communication bridge between the primary processing unit and the physical machinery on the factory floor.

Industrial Signal Acquisition and Physical Actuation

Effective automation demands flawless discrete signal processing. Standard digital input configurations, such as the 6ES5431-8FA11, process 24V direct current binary signals originating from proximity sensors, limit switches, and simple pushbuttons.

Operating within different electrical environments necessitates alternative hardware solutions. Specifically, facilities utilizing 115V alternating current control circuits rely on specialized components like the 6ES5435-7LA11 to capture high-voltage discrete signals safely using dedicated optical isolation circuitry.

For continuous variable measurement, analog input modules execute high-precision analog-to-digital conversions. The 6ES5460-7LA12 processes fluctuating parameters like chemical pressure, tank temperature, and fluid flow rates. This hardware feeds accurate data streams directly to the central processor for real-time logic adjustments.

Translating internal logic calculations into physical movement requires reliable output hardware. Site engineers frequently deploy specific digital output modules, including the 6ES5454-7LA11, across automated packaging lines. These units drive heavy-duty relays and pneumatic solenoid valves efficiently without signal degradation.

Central Processing Cores and Specialized Architecture

The central processing unit acts as the computational core for the entire automated logic program. Large-scale production networks demand rapid instruction execution times to maintain tight synchronization. High-performance CPU modules, such as the 6ES5928-3UB12, provide high-frequency data processing capabilities across extensive machinery networks.

Specific industrial applications require dedicated hardware configurations to manage independent safety protocols. The 6ES5095-8FB01 functions as a compact Simatic S5-95F Fail-Safe CPU. Frequently miscategorized by third-party vendor catalogs as a standard memory unit, this specialized controller executes critical safety logic independently from the main processor.

It guarantees that automated machinery defaults to a secure, de-energized state during severe hardware faults. Furthermore, integrating legacy systems with modern data networks necessitates unique physical interfaces. The 6ES5581-0RA12 AT slot module provides a specialized physical housing and backplane connection.

This engineering design allows standard PC-compatible cards to operate directly within the traditional S5 rack. It facilitates advanced data logging, secondary network communications, and direct IT/OT integration directly on the factory floor.

Hardware Compatibility Verification for Legacy Systems

Integrating replacement electronics into aging infrastructure demands strict technical assessment prior to physical installation. Engineering teams must validate multiple hardware parameters to prevent catastrophic system failures. The primary step involves confirming the replacement unit matches the exact communication protocols and signal transmission standards of the rack backplane.

Technicians must meticulously check voltage specifications and pin configurations. Distinguishing clearly between the physical isolation ratings of 24V direct current and 115V alternating current modules prevents severe terminal block short circuits or electrical fires.

Finally, maintenance personnel must ensure the internal firmware revisions of the replacement components align perfectly with the overarching task scheduling logic of the main CPU. This rigorous verification process allows facility managers to achieve seamless, plug-and-play hardware integration.

FAQs about Siemens Simatic S5 Modules

Q1: How do technicians preserve the original logic program when replacing a discontinued CPU module?

Operators must back up the entire user program and all associated data blocks to an EPROM card or external storage medium using dedicated Siemens programming equipment. Upon installing the replacement hardware, technicians download the stored program and carefully verify the I/O mapping structure in an offline test mode.

Q2: Can standard 24V DC input modules be interchanged with 115V AC modules within the same rack slot?

Direct substitution is strictly prohibited. While they share identical physical dimensions and backplane connector interfaces, 115V AC components utilize vastly different internal voltage step-down and optical isolation circuitry compared to standard 24V DC variants. Attempting interchangeability causes immediate hardware logic failure.

Q3: What specific function does an AT slot module provide in a standard logic controller architecture?

An AT slot module serves as a dedicated physical bridge allowing standard IBM AT-compatible PC cards to operate directly on the PLC backplane. This specialized hardware facilitates complex mathematical calculations, large-scale data acquisition, and secondary communications that exceed the capabilities of the primary legacy processor.
