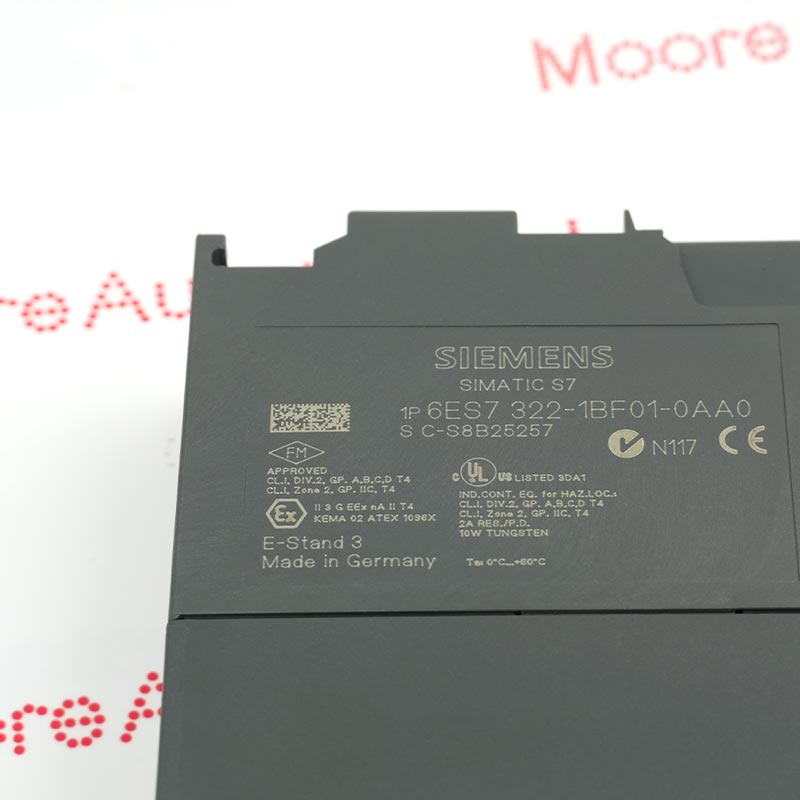

      6ES7322-1BF01-0AA0

      Digital Output Module

      Product Information

      Product Describe

      SIMATIC S7-300

      Digital output SM 322

      isolated, 8 DO, 24 V DC,

      2A, 1x 20-pole

      industrial automation system

      • Manufacturer:
        Siemens
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        4 x 11.6 x 12.5 cm
      • Weight:
        0.18 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • LKZ_FDB/ CatalogID:
        ST73
      • Storage Temperature:
        -25°C to +70°C
      • Humidity:
        5–95% (non - condensing)
      • Operating Temperature:
        0°C to +60°C
      • Isolation:
        500V AC between channels and logic
      • Stock:
        20
      By purchasing this item, you agree to the Terms & Conditions
      Moore Automated is NOT an authorized distributor of Siemens
      right background
      1-year warranty

      All our products come with a 1-year warranty for your peace of mind.

      Service means taking a customer problem and making it your own challenge. Years of experience and listening skills enable us to think and act quickly and accordingly. You have a problem? – We have the solution!
      Moore Automated is not an authorized distributor, reseller or representative of the products featured on this website.
      All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
      Learn More Policy
      Manuals
      • Order Online:
        We have been working hard to update our inventory.

        If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show “Ask”. Please create an online quote or contact us by phone, fax or email to check availability.
      • Order by:
        You can also contact us by phone, fax or email to order. We are here to help you!
      • E-mail:
        We need the following information to process your order quickly and accurately: Your complete ship and receipt information
      • Delivery:
        How do you want to ship? Shipping information
      • Payment:
        How will you pay? Payment procedure
      Learn More Policy
      Quantity*
      Mobile*
      Company
      E-mail*
      Content*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote

      Quick Search

      • Part or Model Number

        • Please try to be as accurate as possible with your search.
        • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
        • We can't find any results for “”.
          SEE MORE
            SEE PRODUCTS IN SEARCH PAGE ()

          • Filter by Manufacturer

          • Filter by Category

          Featured Manufacturers

          FAQ

          • What is the fundamental industrial role of the 6ES7322-1BF01-0AA0 module in an S7-300 control architecture?
            The 6ES7322-1BF01-0AA0 is an isolated digital output expansion module (SM 322) designed to interface discrete PLC logic with external actuators by providing eight independent high-current output channels. It is used to drive field devices such as solenoid valves, contactors, and signal lamps in distributed automation systems.
          • How many output channels does the 6ES7322-1BF01-0AA0 have, and what is the rated current per channel?
            The 6ES7322-1BF01-0AA0 features 8 digital outputs, each capable of sourcing up to 2 A at 24 V DC, enabling robust direct control of higher-power loads without intermediate amplification.
          • What is the permissible supply voltage range for the 6ES7322-1BF01-0AA0’s load voltage (L+)?
            For the 6ES7322-1BF01-0AA0, the rated load voltage is 24 V DC, with an allowable operating range from 20.4 V to 28.8 V DC, ensuring compatibility with standard industrial 24 V systems while accommodating supply variation.
          • How does the output voltage behave on the 6ES7322-1BF01-0AA0 during an active logic “1”?
            When an output channel on the 6ES7322-1BF01-0AA0 is in the logical “1” state (energized), the minimum output voltage remains within L+ – 0.8 V, ensuring sufficient drive voltage is delivered under load conditions.
          • What is the typical power dissipation of the 6ES7322-1BF01-0AA0 during standard operation?
            Under typical conditions, the 6ES7322-1BF01-0AA0 exhibits a power loss of approximately 6.8 W, a design detail necessary for comprehensive heat management in confined control enclosures.
          • What mechanical form factor and connector interface does the 6ES7322-1BF01-0AA0 utilize?
            Mechanically, the 6ES7322-1BF01-0AA0 mounts as a compact SM 322 digital output card with a single 20-pole front connector, facilitating organized wiring and straightforward integration into a SIMATIC S7-300 rack.
