      Siemens 6ES7214-1BD23-0XB0
      Siemens 6ES7214-1BD23-0XB0
      Siemens 6ES7214-1BD23-0XB0
      Siemens 6ES7214-1BD23-0XB0
      Siemens 6ES7214-1BD23-0XB0
      Siemens 6ES7214-1BD23-0XB0

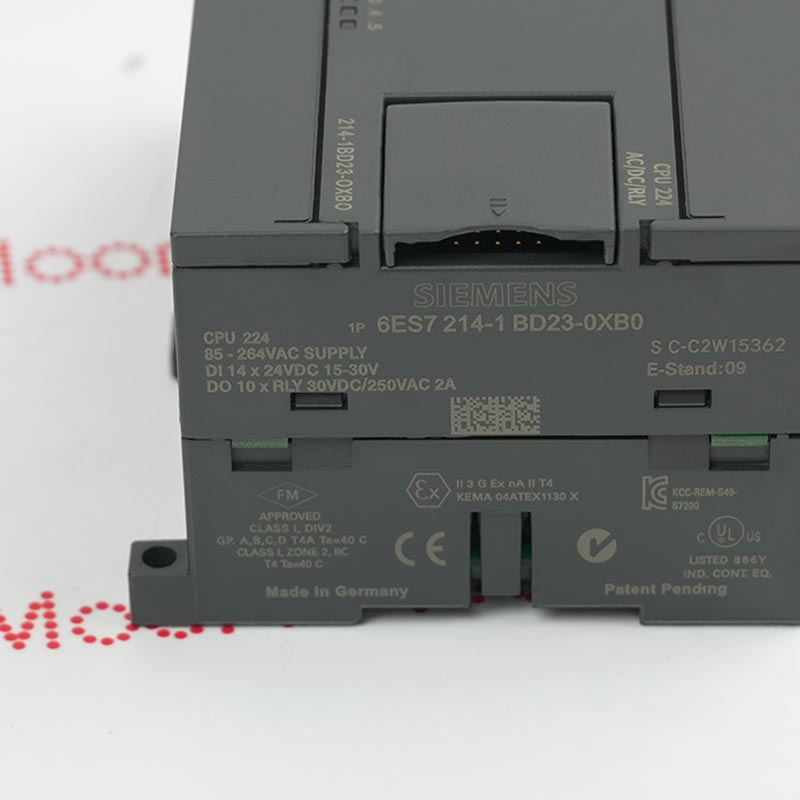

      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      6ES7214-1BD23-0XB0

      COMPACT CPU UNIT
      In Stock

      Product Information:

      SIMATIC S7-200, CPU 224, COMPACT UNIT,

      AC POWER SUPPLY 14 DI DC/10 DO, RELAY,

      8/12 KB CODE/8 KB DATA,

      PROFIBUS DP EXTENDABLE

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 6ES7214-1BD23-0XB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        12.05 x 8 x 6.2 cm
      • Weight:
        0.41 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • Supply voltage:
        120 V AC to 230 V AC
      • Line frequency:
        63 Hz
      • Rated value (DC):
        24 V DC
      • Rated value (AC):
        100 V AC
      • Inrush current, max.:
        20 A
      • from supply voltage L1, max.:
        200 mA
      • Switching capacity of the outputs on lamp load, max.:
        200 W
      • Counting frequency (counter) max.:
        30 kHz
      • Stock:
        30
      Ask for Quote

      Manuals

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What is the core architectural function of the 6ES7214-1BD23-0XB0 within distributed automation systems?
        The 6ES7214-1BD23-0XB0 functions as a compact central processing unit (CPU 224) for the SIMATIC S7-200 family, integrating both discrete inputs/outputs and program/data memory to execute ladder logic and sequential control tasks within industrial automation environments.
      • What are the electrical supply specifications for the 6ES7214-1BD23-0XB0 CPU, and how do they influence installation design?
        This CPU accepts mains AC supply at both 120 V AC and 230 V AC with an allowable frequency range of 47–63 Hz, and provides an internal DC 24 V load voltage (L+) with a permitted range of 5 V to 30 V DC — a critical factor when designing power distribution within control panels.
      • How many integrated digital I/O channels does the 6ES7214-1BD23-0XB0 provide, and what is their configuration?
        The 6ES7214-1BD23-0XB0 provides 14 DC digital inputs optimized for 24 V signal acquisition and 10 relay-type digital outputs for switching AC/DC loads directly up to defined ratings — enabling hybrid control of sensors and actuators without immediate need for external I/O expansion.
      • What memory capacities are available on the 6ES7214-1BD23-0XB0, and how do these affect program complexity?
        Embedded within the 6ES7214-1BD23-0XB0 are 12 KB of program memory (8 KB when runtime edit is active) and 8 KB of data memory, which supports moderate control logic and data handling for small-to-medium automation tasks. Additionally, an optional pluggable memory module may extend storage for recipes or logging.
      • What is the processing performance and control capability of the 6ES7214-1BD23-0XB0 CPU?
        The 6ES7214-1BD23-0XB0 achieves a maximum bit instruction execution time of 0.22 µs, supporting responsive control logic performance. The CPU also manages up to 256 S7 counters and timers each, enabling flexible timing and counting functionality across industrial processes.
      • Can the 6ES7214-1BD23-0XB0 interface with external networks, and if so, how?
        Yes — the 6ES7214-1BD23-0XB0 includes an integrated RS-485 interface that supports PPI and MPI communications, and can be extended to PROFIBUS DP networks. This allows it to act as a node in larger communication infrastructures, exchanging process data with other PLCs or supervisory systems.
      • What expansion capabilities are available to the 6ES7214-1BD23-0XB0, and what are the practical limits?
        The 6ES7214-1BD23-0XB0 can support up to 7 expansion modules from the S7-200 family, allowing significant scaling of digital and analog I/O while preserving consistent programming and operational behavior across the control system.
