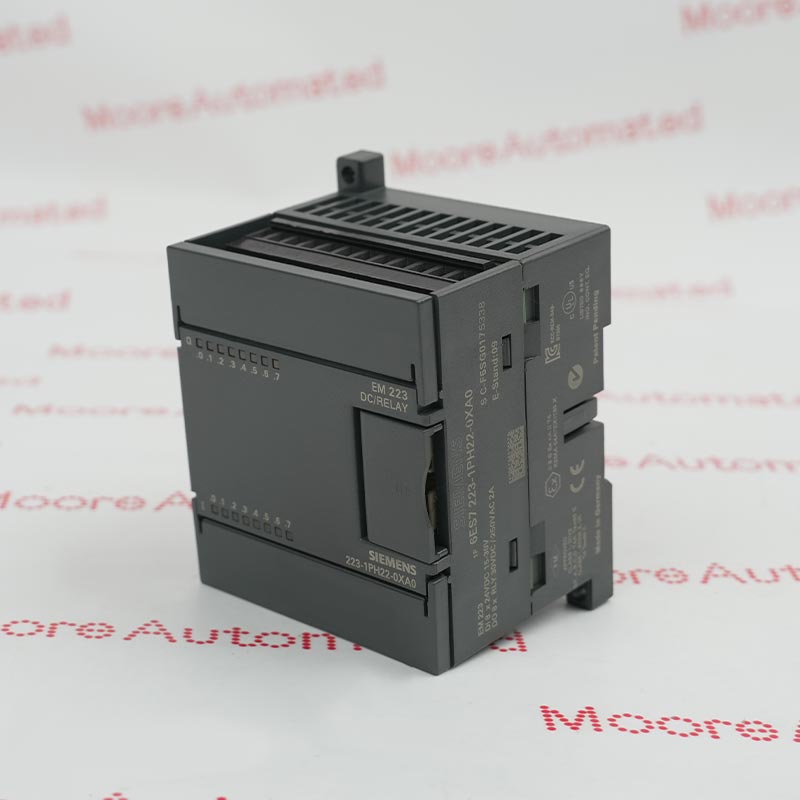

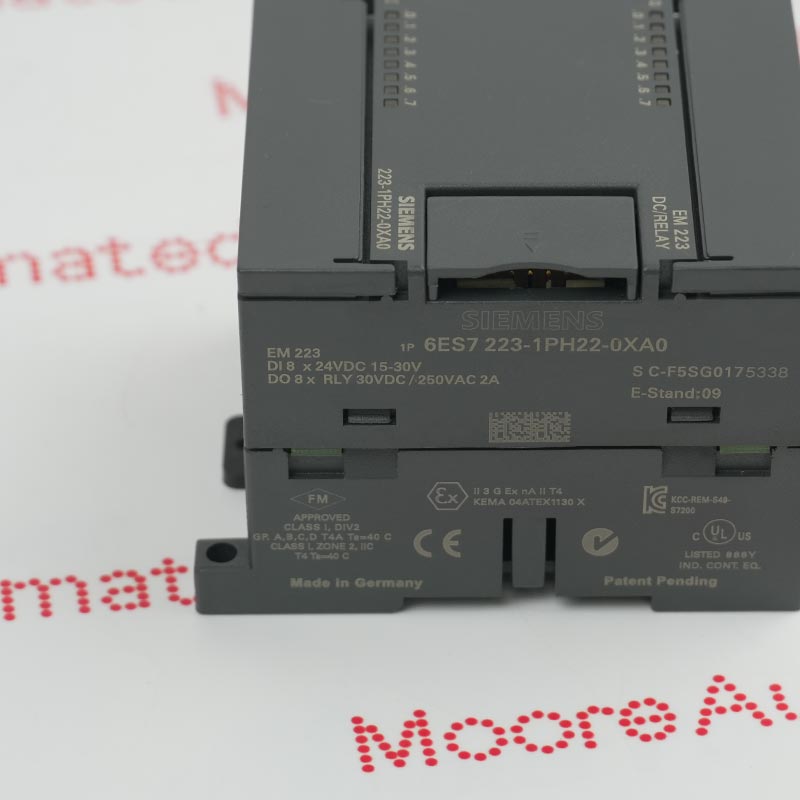

      Siemens 6ES7223-1PH22-0XA0
      Siemens 6ES7223-1PH22-0XA0
      Siemens 6ES7223-1PH22-0XA0
      Siemens 6ES7223-1PH22-0XA0
      Siemens 6ES7223-1PH22-0XA0
      Siemens 6ES7223-1PH22-0XA0
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      6ES7223-1PH22-0XA0

      DIGITAL I/O MODULE
      In Stock

      Product Information:

      SIMATIC S7-200, DIGITAL I/O EM 223,

      FOR S7-22X CPU ONLY, 8

      DI 24 V DC, SINK/SOURCE,

      8 DO RELAY, 2A/POINT

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 6ES7223-1PH22-0XA0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        7.12 x 8 x 6.2 cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • Rated value (DC):
        24 V DC
      • Rated value (AC):
        230 V; 24 V AC to 230 V AC
      • from backplane bus 5 V DC, max.:
        80 mA
      • Power loss, typ.:
        3 W
      • Number of digital outputs:
        8; Relays
      • Isolation Isolation checked with:
        500 V AC
      • Category Series:
        SIMATIC S7-200
      • Stock:
        20
      Ask for Quote

      Manuals

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What is the architectural role of the 6ES7223-1PH22-0XA0 within a SIMATIC S7-200 automation system?
        The 6ES7223-1PH22-0XA0 is a compact digital I/O expansion module (EM 223) engineered to augment the I/O capacity of SIMATIC S7-200 controllers — specifically compatible with S7-22X CPUs — enabling distributed control of field-level devices via standardized binary signals.
      • What are the precise digital input characteristics supported by the 6ES7223-1PH22-0XA0 module?
        This module incorporates 8 digital inputs with a nominal input voltage of 24 V DC. The inputs are configurable as sink/source, facilitating flexible sourcing/sinking polarity for discrete field sensors. Input “0” state is recognized from 0 – 5 V, and a valid “1” logic level ranges between 15 V DC and 30 V DC.
      • What are the output specifications and load capabilities of the 6ES7223-1PH22-0XA0?
        The 6ES7223-1PH22-0XA0 provides 8 relay-based digital outputs, each capable of switching up to 2 A per channel. Relay outputs allow AC and DC load control with galvanic isolation, enabling the direct switching of actuators, lamps, and solenoids within the permissible voltage ranges.
      • How does the input signal propagation delay affect system timing with the 6ES7223-1PH22-0XA0?
        For the 6ES7223-1PH22-0XA0, the maximum propagation delay from a “0” to “1” input transition at rated input voltage is approximately 4.5 ms for standard inputs — a critical metric when evaluating deterministic response times in discrete control applications.
      • Can the 6ES7223-1PH22-0XA0 be used as a standalone controller?
        No — the 6ES7223-1PH22-0XA0 functions strictly as an I/O expansion module and requires an S7-200 base CPU (specifically S7-22X series) to orchestrate logic execution. It lacks standalone processing or programming capability.
      • What is the product lifecycle status of the 6ES7223-1PH22-0XA0?
        According to Siemens industry cataloging, the 6ES7223-1PH22-0XA0 is categorized as a PM410 product cancellation, meaning it has been officially discontinued. Support may be limited to spare parts and service provisions via Siemens or authorized partners.
