Features:

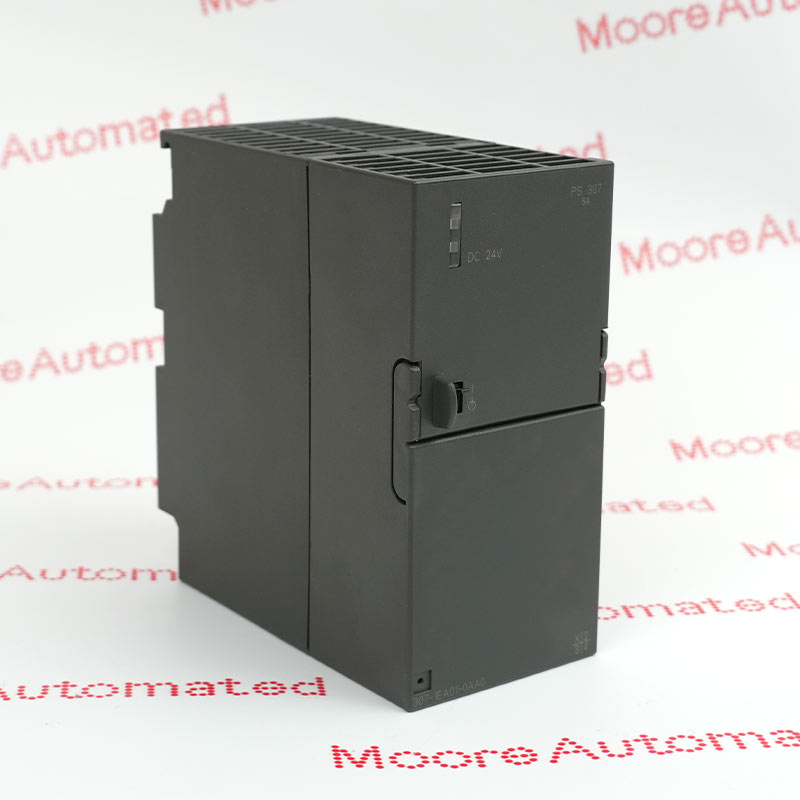

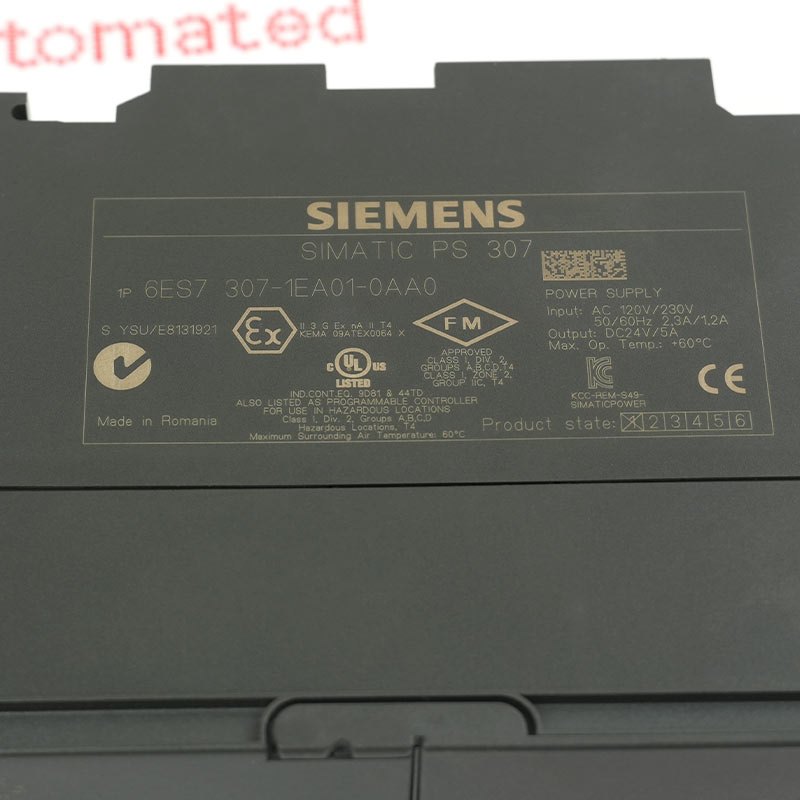

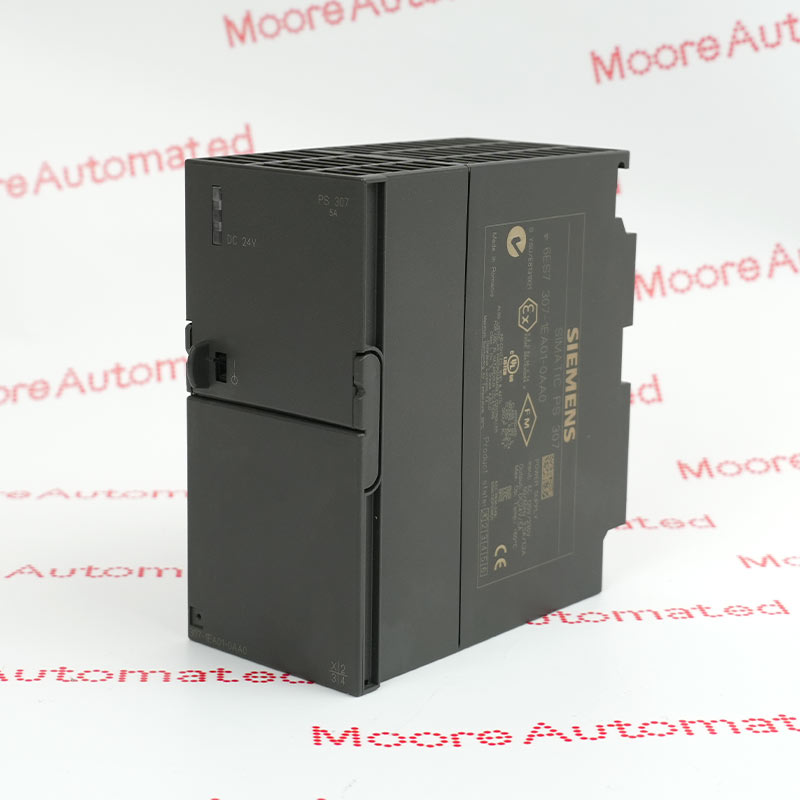

- SIMATIC PS307/1AC/24VDC/5A
- SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V/5 A DC
- Regulated power supply Module
This module converts industrial AC input voltage into a stable 24V DC output, providing a reliable power foundation for the CPU, I/O modules, and communication modules. Its design emphasizes high stability and interference immunity, ensuring a stable voltage output even in environments with significant industrial power grid fluctuations, guaranteeing the normal operation of automation systems.
At the system functionality level, the 6ES7307-1EA01-0AA0 features overload protection, short-circuit protection, and voltage monitoring, effectively improving the operational reliability of the entire control system. Its compact design allows for standard DIN rail mounting and easy integration into S7-300 control cabinets. Furthermore, it supports collaborative power supply with other modules to meet the energy needs of automation systems of varying sizes.
The 6ES7307-1EA01-0AA0 Siemens Regulated power supply Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7307-1EA01-0AA0 Regulated power supply Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7307-1EA01-0AA0 first rectifies and filters the input AC power, then performs voltage conversion and regulation through a high-frequency switching circuit, ultimately outputting a stable DC voltage. Under the action of the feedback control loop, the output voltage is monitored and dynamically adjusted in real time, thereby ensuring stable power supply even under load changes or input fluctuations, achieving efficient and reliable power management functions.
- S7-300 System Power Supply: Primarily used to provide 24V power to the S7-300 CPU, I/O modules, sensors, and actuators.
- Industrial Engineering: Commonly used in manufacturing, automotive, and packaging industries.
- Hazardous Environments: Certified by UL, ATEX, and GL, suitable for complex systems and harsh industrial environments.
