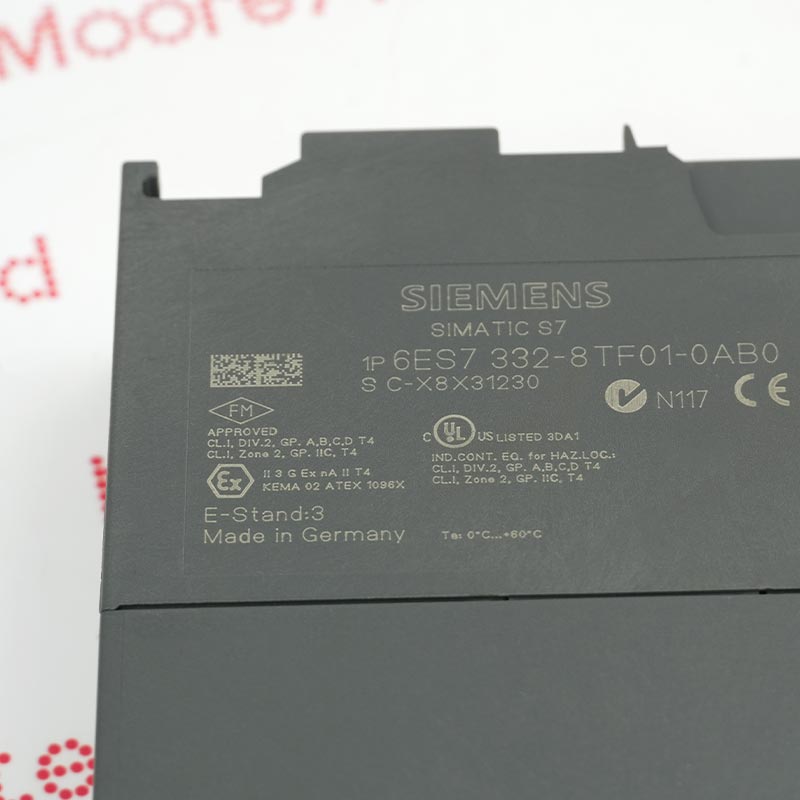

      6ES7332-8TF01-0AB0

      HART analog output module

      Product Information

      Product Describe

      HART analog output

      8 AO, 0/4 - 20 mA HART

      HART auxiliary variables

      local diagnostic buffer with time

      • Manufacturer:
        Siemens
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        4x12.5x11.7cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • Rated value (DC):
        24 V
      • Input current from load voltage L+ (without load):
        max 350 mA
      • Power loss:
        typ 6 W
      • Number of analog outputs:
        8
      • Current output, no-load voltage:
        max 24 V
      • Load impedance with current outputs:
        max 750 Ω
      • Voltages at the outputs towards MANA:
        +60/-0.5 V
      • Cable length shielded:
        max 800 m
      • Resolution with overrange (bit including sign):
        max 16 bit
      • Isolation tested with:
        500 V DC
      • Stock:
        30
      By purchasing this item, you agree to the Terms & Conditions
      Moore Automated is NOT an authorized distributor of Siemens
      right background
      1-year warranty

      All our products come with a 1-year warranty for your peace of mind.

      Service means taking a customer problem and making it your own challenge. Years of experience and listening skills enable us to think and act quickly and accordingly. You have a problem? – We have the solution!
      Moore Automated is not an authorized distributor, reseller or representative of the products featured on this website.
      All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
      Learn More Policy
      Manuals
      • Order Online:
        We have been working hard to update our inventory.

        If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show “Ask”. Please create an online quote or contact us by phone, fax or email to check availability.
      • Order by:
        You can also contact us by phone, fax or email to order. We are here to help you!
      • E-mail:
        We need the following information to process your order quickly and accurately: Your complete ship and receipt information
      • Delivery:
        How do you want to ship? Shipping information
      • Payment:
        How will you pay? Payment procedure
      Learn More Policy
      Quantity*
      Mobile*
      Company
      E-mail*
      Content*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote

      Quick Search

      • Part or Model Number

        • Please try to be as accurate as possible with your search.
        • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
        • We can't find any results for “”.
          SEE MORE
            SEE PRODUCTS IN SEARCH PAGE ()

          • Filter by Manufacturer

          • Filter by Category

          Featured Manufacturers

          FAQ

          • What is the intended function of the 6ES7332-8TF01-0AB0 within an ET 200M SIMATIC DP automation architecture?
            The 6ES7332-8TF01-0AB0 is a SIMATIC DP HART-enabled analog output module (SM 332) designed for distributed I/O stations on the ET 200M platform. Its principal role is to convert controller output data into continuous current signals (0/4–20 mA) for interfacing with analog field devices such as valves, actuators, and process transmitters via the DP communication backbone.
          • How many analog channels does 6ES7332-8TF01-0AB0 support, and what output ranges are configurable?
            The 6ES7332-8TF01-0AB0 furnishes eight independent analog output channels, each capable of driving current in the range of 0 to 20 mA and 4 to 20 mA in accordance with HART analog loop standards. This multi-channel capability enables simultaneous control of multiple field actuators or transmitters from a single distributed module.
          • What supply and power performance characteristics define the 6ES7332-8TF01-0AB0?
            The 6ES7332-8TF01-0AB0 module operates from a 24 V DC load supply (L+) with reverse-polarity protection, drawing a maximum of 350 mA from the load voltage and 110 mA from the backplane 5 V DC bus. Its typical power dissipation is approximately 6 W, which must be accounted for in the design of the I/O station power budget.
          • What load and cabling conditions are supported by 6ES7332-8TF01-0AB0 outputs?
            Each of the eight current outputs on the 6ES7332-8TF01-0AB0 can drive a maximum load impedance of 750 Ω in the rated output range, with permissible inductive loads up to 10 mH. When using shielded cabling, maximum run lengths of up to 800 m per channel are supported to reach remote field devices.
          • What advanced communication or diagnostic features does 6ES7332-8TF01-0AB0 include?
            The 6ES7332-8TF01-0AB0 incorporates support for HART secondary variables, enabling access to auxiliary process data in addition to primary output signals. It also features a local diagnostic buffer with time stamping, firmware update functionality, and redundancy support, enhancing operational transparency and facilitating sophisticated diagnostic strategies within a PROFINET/DP environment.
          • How does 6ES7332-8TF01-0AB0 ensure robust operation in industrial settings?
            The module’s design includes reverse polarity protection for the 24 V supply to guard against incorrect wiring or transient events. It undergoes isolation testing at 500 V DC and is constructed to an IP20 degree of protection, suitable for cabinet-mounted industrial applications.
          • What product lifecycle or obsolescence considerations should engineers be aware of regarding 6ES7332-8TF01-0AB0?
            Siemens has announced the start of the phase-out process for the 6ES7332-8TF01-0AB0 product, with the phase-out effective from October 2023 under the PLM code “PM400.” Engineers planning long-term projects should consider lifecycle implications and potential migration paths to newer modules or spare-parts strategies.
