After a hardware failure, Miya’s team connected field evidence, exact Series C I/O identification, compatibility analysis and a controlled replacement plan—then stayed involved through installation and recovery checks.
Accountable project owner
For a failed control system, the useful answer is not “we have something similar.” It is a documented path from the installed label to the correct replacement, followed by the checks needed before the customer returns the system to service.
The opportunity & challenge
The Middle East customer required multiple Honeywell Experion PKS Series C I/O components after an equipment failure. The urgency did not remove the need to verify each complete 8C-prefixed model code, because a wrong suffix, signal role or termination arrangement would only extend the stoppage.
The opportunity
The customer shared installed-equipment information and the affected positions. Miya organised the requirement into a single working record so sourcing, technical review and dispatch could move together.
The challenge
The replacement decision had to account for the I/O role, suffix, revision, receiving carrier or termination assembly, terminal map and configuration dependencies—not only the Honeywell brand and grey enclosure.
Seven-step recovery route
Each step produced a decision or a record. The process stayed detailed enough for maintenance and purchasing teams to see what had been confirmed, what still required site validation and who owned the next action.
The customer identified the failed equipment, affected operating function, alarm or diagnostic evidence, cabinet position and urgency. Photos of the installed module and surrounding hardware were requested before any replacement claim was made.
Miya’s team checked each exact model code, Honeywell part number, suffix, revision, faceplate, connector pattern and available nameplate evidence. The installed position and related termination assembly were recorded so the review was tied to the actual site.
The team compared functional role, signal direction, channel requirements, supply level, receiving hardware, terminal allocation, configuration dependencies and environmental execution. Any uncertainty was returned to the customer as a specific question rather than hidden in the quotation.
Exact-match items were prioritised. Where an alternative execution was considered, the proposal stated the technical assumptions, required companion hardware and checks that the customer’s engineer had to approve before installation.
Actual-item photos, label details, condition, quantity and packing scope were connected to the quotation. Commercial terms—availability, lead time, warranty and included records—were stated in writing so the customer could compare total procurement risk, not price alone.
Before removal, the site retained wiring, addressing and configuration records. During installation, the maintenance team followed the approved isolation procedure, inspected the receiving hardware, fitted the verified items and restored power in the documented sequence.
The customer reviewed module diagnostics and tested the affected signal or control path. The system returned to stable service, and the confirmed model relationship was retained for the customer’s future spares planning and faster repeat support.
Model evidence
The model prefix was never treated as a product family by itself. Six related Experion PKS Series C I/O references are shown below to demonstrate how full model codes, part numbers and hardware roles must be reviewed together.

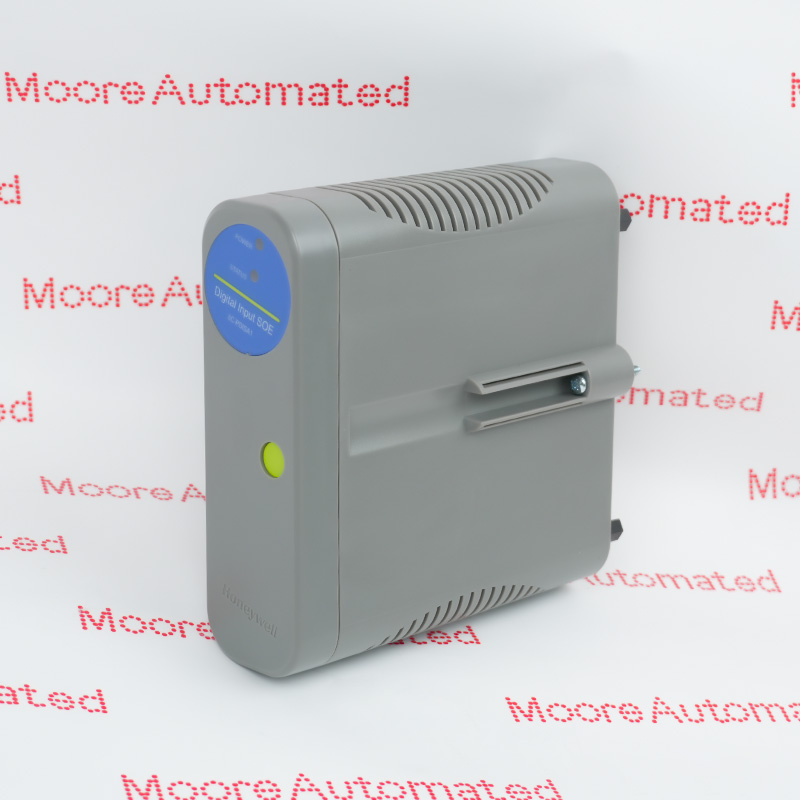

Digital Input Sequence of Events execution. The full part number and installed function remain part of the review.
View product →
Header-board identity shown as a complete assembly; its PWA marking and revision must be reviewed separately.
View product →
Digital-output termination hardware. Terminal numbering, field wiring and paired module execution must agree.
View product →
HART analog input hardware. Channel role, receiving hardware and configuration must match the approved site record.
View product →
HART analog output hardware. The output function and complete execution must be confirmed before substitution.
View product →
HART analog input execution. Model suffix, revision and paired termination arrangement remain essential checks.
View product →Beyond Honeywell
Compatibility checklist
This table makes the technical reasoning visible to maintenance, engineering and MRO purchasing teams. It also prevents a quotation from hiding unanswered compatibility questions.
| Verification point | Evidence used | Why it matters | Release condition |
|---|---|---|---|
| Complete identity | Model, part number, suffix, PWA and revision markings | Similar housings may contain a different execution. | All available markings agree with the approved record. |
| Functional role | DI/SOE, output termination or header-board function | An input, output or companion assembly cannot be selected by appearance. | The replacement performs the documented site function. |
| Receiving hardware | Carrier, slot, connector, IOTA or termination relationship | Mechanical fit does not prove electrical or system compatibility. | Paired hardware and keying are confirmed. |
| Signal & terminals | Signal type, supply, channel allocation and terminal map | A mismatch can create faults, unsafe states or failed commissioning. | Site drawings and module execution agree. |
| Configuration | Database, addressing, diagnostics and retained settings | Hardware replacement may still require approved configuration restoration. | The customer’s engineer approves the recovery plan. |
| Post-install proof | Power-up diagnostics, loop/function checks and operating observation | Pre-shipment inspection cannot prove the customer’s installed system. | The affected path is tested before process release. |
Successful outcome

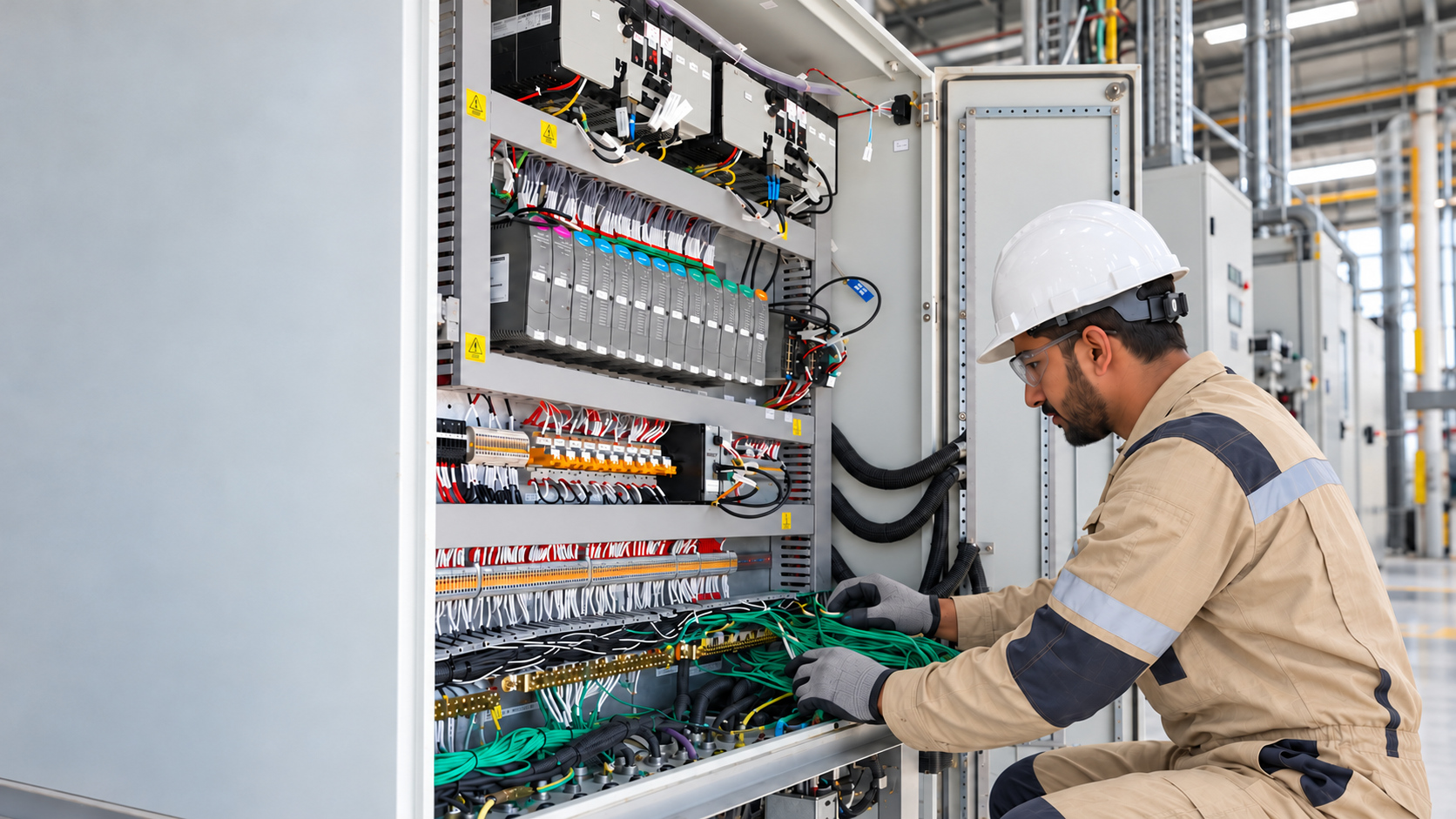

The customer received verified Experion PKS Series C I/O hardware, a clear explanation of the compatibility basis and support through installation and commissioning checks. After collecting the order, the customer’s technician fitted and tested the hardware at the customer’s factory. Diagnostics and the affected operating path were then verified before the system returned to stable service. No unverified financial saving or downtime figure is claimed.
Recovery record
Commercial assurance
Exact terms still belong in the written quotation. The page explains the decision framework without inventing a warranty, stock date, price or delivery time that was not supplied for this case.
Defined in writing for the quoted batch, with actual-item evidence where agreed.
Confirmed against the physical sourcing record before commitment.
Applicable terms, exclusions and the responsible contact stated in the quotation.
Verified model relationships retained to shorten future spares enquiries.
Frequently asked questions
Visible, practical answers for maintenance engineers and MRO buyers planning an urgent Experion PKS I/O recovery.
Confirm the complete model, part number, suffix, revision, I/O function, receiving hardware, terminal arrangement and approved configuration. Photograph the installed position and connected hardware before removal.
Not on appearance alone. The installed platform, signal type, channel allocation, termination assembly, revision and configuration dependencies must be reviewed and approved.
Send the complete label photo, installed position, quantity, required condition, cabinet or system reference, fault symptoms, destination and required-on-site date. Include drawings or a bill of materials where available.
Depending on the order, Moore Automated can provide actual-item photos, nameplate details, condition confirmation, quantity and packing evidence, and the agreed inspection record.
No. Installation, configuration restoration, diagnostics and loop or function checks must still be completed under the site’s approved commissioning and safety procedures.
An alternative is not presented as a drop-in replacement without a compatibility basis. The proposal should state the assumptions, receiving hardware, required configuration changes and checks the customer’s engineer must approve.
The team organises model verification, compatibility questions, replacement options, availability evidence, dispatch planning and technical follow-up through one accountable contact.
