Features:
- IOEC I/O Control Module
- Control Module used in ABB medium voltage AC drives
- Industrial automation and power management systems
As a highly integrated control module, it boasts powerful computing capabilities and extremely high control precision, enabling real-time closed-loop control of complex power electronic topologies. This module not only possesses excellent deterministic task processing capabilities, enabling synchronous operation of multiple inverter or rectifier modules, but also integrates rich communication interfaces, supporting seamless sub-microsecond data exchange with fieldbuses and power hardware via high-speed fiber optic links, thereby ensuring high availability and stability of the system in industrial production processes.
This module can monitor the status of power semiconductor devices (such as IGCTs or IGBTs) in real time, capturing transient anomalies in voltage and current through a high-speed feedback loop and executing millisecond-level fault protection logic to prevent equipment damage. Its AE01 submodule configuration provides optimized input/output expansion capabilities, enabling it to flexibly adapt to various demanding industrial applications, such as excitation systems, static frequency converters (SFCs), and wind power grid-connected control.

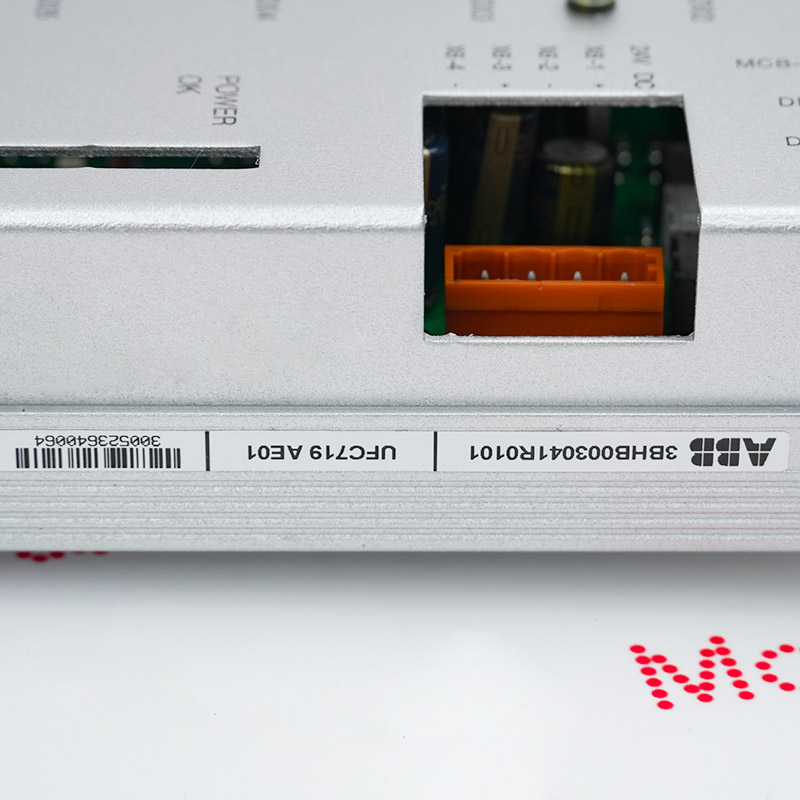

The 3BHB003041R0101 UFC719 AE01 ABB IOEC I/O Control Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3BHB003041R0101 UFC719 AE01 IOEC I/O Control Module INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It combines the flexibility of a real-time operating system (RTOS) with the high-speed parallel processing capabilities of a field-programmable gate array (FPGA): the RTOS handles complex control algorithms (such as vector control or direct torque control) and system diagnostics, while the FPGA generates ultra-high-precision pulse-width modulation (PWM) signals and processes highly time-sensitive low-level inputs and outputs.
This module is widely used in complex automated environments across multiple industries:
Power Generation and Transmission: Managing high-voltage inverter systems.
Manufacturing and Process Control: Coordinating complex mechanical equipment and distributed I/O nodes.
Marine Automation: Serving as a ship control module for ship drive and management systems.
