Features:

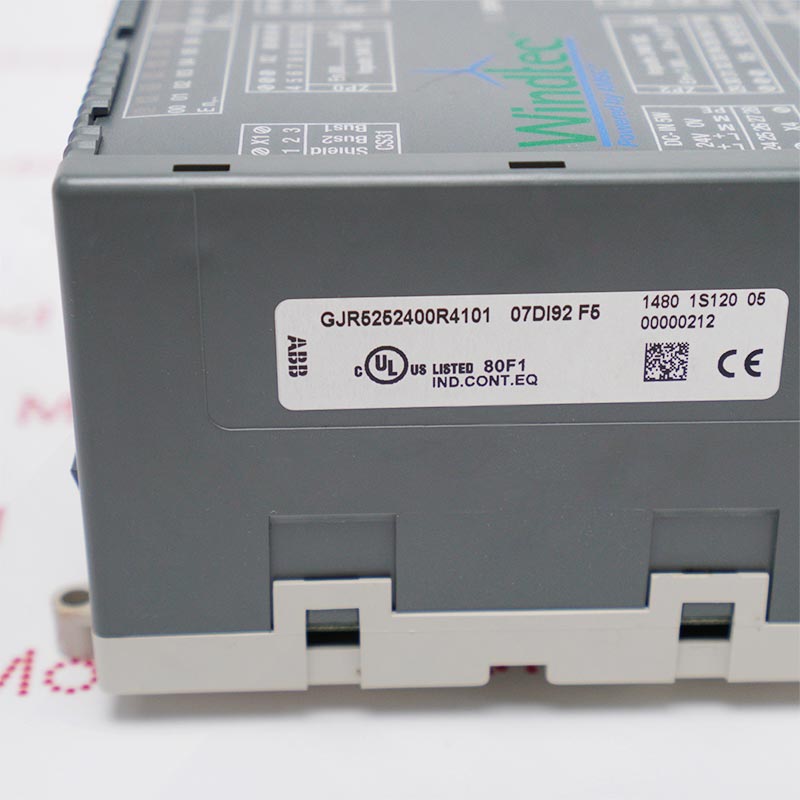

- ABB article GJR5252400R4101 identifies 07DI92 as a 32-channel digital input module.
- System role: acquires grouped 24 V DC field states for the AC31 system bus.
- Compatibility is controlled by the complete article, installed position, connectors and approved project record.
07DI92 GJR5252400R4101 must remain matched to ABB Advant Controller 31 automation systems. Record the receiving equipment, connector assignment and installed settings before removal.
After installation, verify power and diagnostics first, then prove communication or I/O status and the assigned function under a controlled test before process release.
Documentation rule: use only an exact-model official English PDF when one is available. Unverified nearby-model ratings are withheld.
07DI92 GJR5252400R4101 technical documentation and verified Moore Automated resources.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

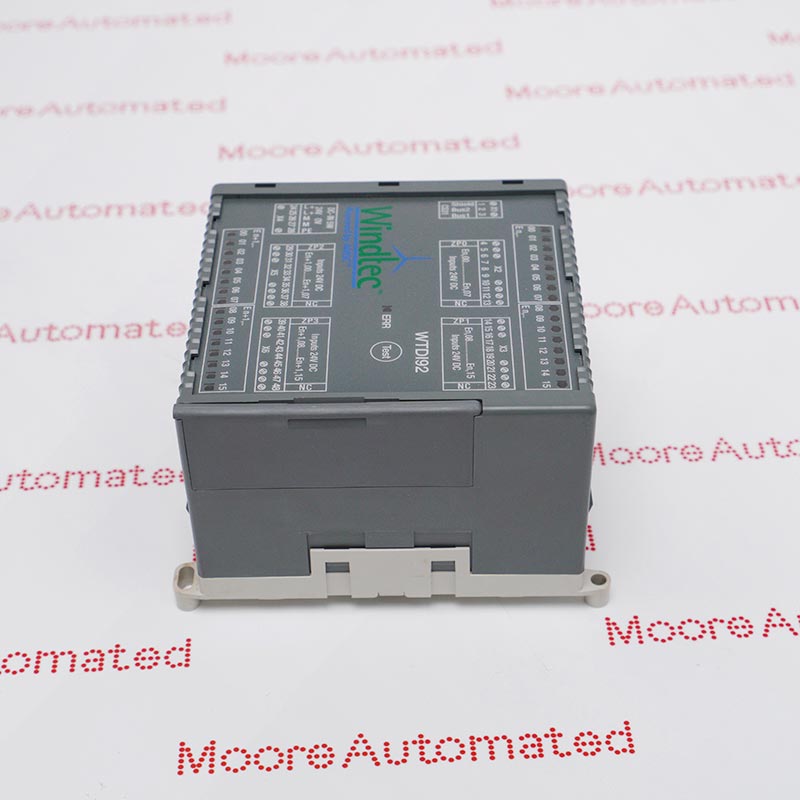

This 32-channel digital input module acquires grouped 24 V DC field states for the AC31 system bus. Match the complete ABB identity and receiving-equipment record before installation.
Keep 07DI92 on the documented signal, bus or power path. Preserve connector orientation, installed position and approved settings.
After replacement, compare diagnostics with the saved baseline and prove the assigned 32-channel digital input module function under controlled test conditions.
