Features:
- The 512 kB program-memory and 50 MHz processor configuration provides the documented 0.06 / 0.09 / 0.70 us binary/word/floating-point instruction timing for this exact order code.
- One Ethernet interface, two configurable serial ports and FieldBusPlug connectivity support the verified AC500 V2 network and remote-I/O architecture through the selected terminal base.
- Display-based diagnostics, battery-backed data and modular S500 expansion assist service replacement when the processor, base, firmware and application target are all confirmed.

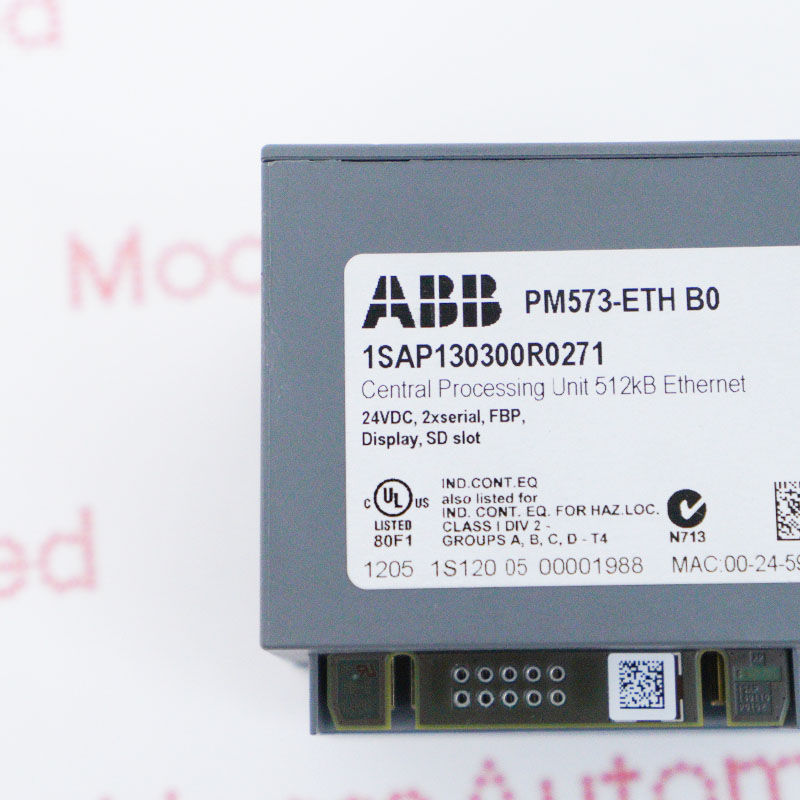

ABB identifies PM573-ETH 1SAP130300R0271 as an AC500 V2 processor module with 512 kB program memory, a 50 MHz 32-bit processor and one onboard Ethernet interface. The module provides two configurable RS-232/RS-485 serial interfaces, a FieldBusPlug interface, a front display with function keys and a memory-card slot. Its Ethernet path supports the documented web-server, SNTP and IEC 60870-5-104 functions through a compatible Ethernet terminal base. Central S500 and S500-eCo expansion can reach ten modules when the station design, current budget and terminal-base arrangement permit it, while approved external communication modules extend the fieldbus architecture. The processor stores selected data through battery-backed resources and supports cyclic, time-controlled and multitasking execution. Correct replacement requires the R0271 order code, processor generation, terminal base, firmware, project target and connected communication modules to be checked together.
ABB PM572, PM573, PM582, PM583, PM585, PM590, PM591, PM592 Processor Module Data Sheet 3ADR010064 Rev. 14 (2025-11-28).
Moore Automated supports exact-item verification and spare-part enquiries for the ABB PM573-ETH 1SAP130300R0271.
ABB PM573-ETH 1SAP130300R0271 official processor-module data sheet (excerpt), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Identify the installed TB5x1-ETH base and its communication-module capacity. The processor module alone does not include the base or guarantee connector compatibility.
Restore COM1 and COM2 as RS-232 or RS-485 according to the project. Verify baud rate, Modbus or CS31 role and termination before reconnecting remote stations.
Use the correct AC500 V2 device target, firmware and library set. Review battery-backed data and startup handling before transferring the application.
