Features:
- The documented output power is 5 VDC.
- The documented motor currents is 30A to 1050A.
- The documented operating voltage is 440V.

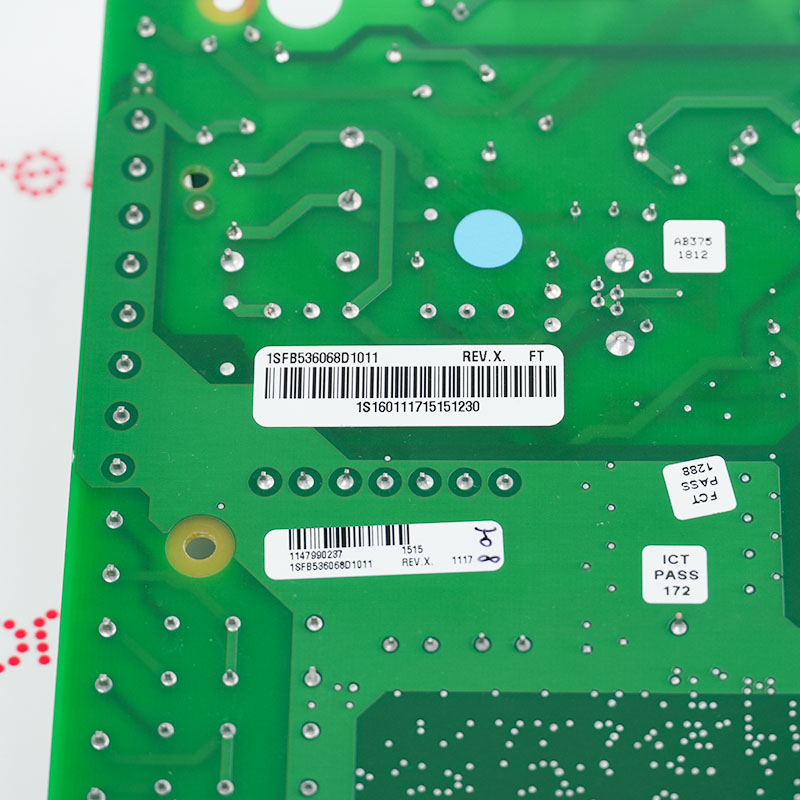

1SFB536068D1011 is an ABB SoftStart control motherboard selected by its complete product identity and documented equipment role. Suitability depends on the installed ABB Advant OCS hardware, interfaces and application requirements matching the supplied unit.
Before replacement, record the nameplate, installed position, terminal or connector arrangement and paired assemblies. After installation, verify every affected power, communication, protection, control or I/O function before returning 1SFB536068D1011 to service.
The 1SFB536068D1011 ABB SoftStart control motherboard is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB 1SFB536068D1011 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1SFB536068D1011 performs the documented softstart control motherboard function within the ABB Advant OCS system. Confirm the recorded power, signal, communication and mechanical interfaces against the approved equipment record. Do not infer ratings or interchangeability from appearance; the complete label and hardware revision control selection.
Replacement of 1SFB536068D1011 requires an exact match to the receiving ABB Advant OCS hardware, connected assemblies and configuration record. Record the installed position and connections before removal, preserve required settings, and verify every affected function after installation.
Before energizing 1SFB536068D1011, inspect mounting, connector keying, terminal allocation, protective grounding and paired equipment. After startup, review diagnostics and complete controlled functional tests before returning the equipment to service.
