Features:

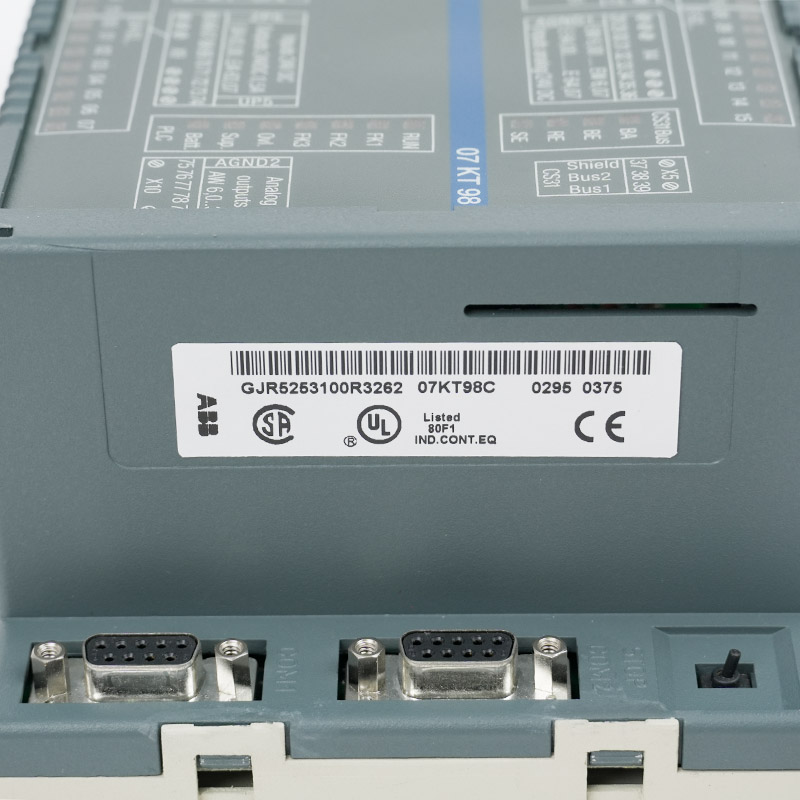

- 07 KT 98 Advant Controller Module
- Basic unit with max. 1 MB user program
- + 1 MB user data + 256 kB RETAIN, CS31 system bus
The 07KT98 GJR5253100R3262 is an industrial contactor module designed for high-power electrical switching and motor control applications. Its primary function is to enable the safe and reliable connection and disconnection of electrical loads such as motors, heaters, or other heavy equipment in industrial automation and power distribution systems. This module features rapid switching capability while maintaining stable operation under harsh load conditions.
In practical applications, the 07KT98 GJR5253100R3262 can achieve automated circuit control via remote commands or PLC integration, thereby improving system safety and operational efficiency. It is commonly used in applications requiring precise load control and overload protection, such as motor starters, industrial machinery, and switchboards. This module is meticulously designed for high mechanical durability, electrical durability, and reliable performance under frequent switching operations.
The 07KT98 GJR5253100R3262 ABB Advant Controller Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 07KT98 GJR5253100R3262 Advant Controller Module maunal(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 07KT98 GJR5253100R3262 operates based on the principle of electromagnetic drive. When a control voltage is applied to the module coil, an electromagnetic field is generated. The magnetic field closes the internal contacts, allowing current to flow to the connected load. When the control voltage is removed, the return spring opens the contacts, cutting off the current. Through this electromagnetic switching mechanism, the contactor can safely, quickly, and reliably control high-power electrical loads.
1. PROFIBUS-DP: Supports transfer speeds up to 12 Mbit/s.
2. ARCNET: Achieves a transfer speed of 2.5 Mbit/s via a BNC connector.
3. CS31 System Bus: For I/O expansion, supporting up to 31 remote modules.
4. Memory: 1MB user program memory, 1MB data memory, and 256kB data retention RAM.
5. Processing Speed: 0.07 milliseconds per 1kB program.
6. Physical Features: Includes a SmartMedia card slot for external backup and a lithium battery for data retention.
The 07KT98 is widely used in various industries requiring reliable, modular control for medium-sized processes.
1. Marine and Marine Engineering: With its high vibration resistance and integrated protection features, the 07KT98 is particularly suitable for ship monitoring and engine control systems, serving as a "dedicated ship controller."
2. Power and Utilities: Used to manage communication between field sensors and a central DCS in power plants, water treatment plants, and wastewater treatment plants.
3. Process Manufacturing: Used to control batch operations in the chemical, pulp and paper, and food and beverage industries.
4. Discrete Manufacturing: Used to coordinate high-speed machine control and automated assembly lines.
