POWER SUPPLY Function
ACS Fit
Commissioning
Features:
- The documented product type is Control Board.
- The documented catalog description is POWER SUPPLY.
- The documented system compatibility is ACS 800.
DSMB-02C is an ABB POWER SUPPLY BOARD selected by its complete product identity and documented equipment role. Suitability depends on the installed ACS 800 hardware, interfaces and application requirements matching the supplied unit.

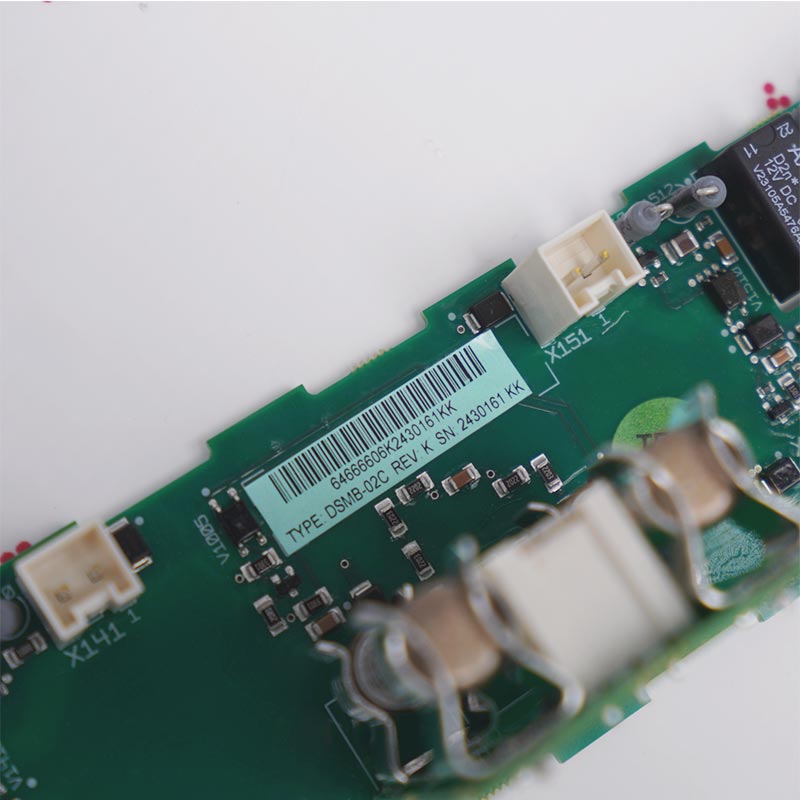

Before replacement, record the nameplate, installed position, terminal or connector arrangement and paired assemblies. After installation, verify every affected power, communication, protection, control or I/O function before returning DSMB-02C to service.
The DSMB-02C ABB POWER SUPPLY BOARD is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB DSMB-02C documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
DSMB-02C performs the documented power supply board function within the ACS 800 system. Confirm the recorded power, signal, communication and mechanical interfaces against the approved equipment record. Do not infer ratings or interchangeability from appearance; the complete label and hardware revision control selection.
Replacement of DSMB-02C requires an exact match to the receiving ACS 800 hardware, connected assemblies and configuration record. Record the installed position and connections before removal, preserve required settings, and verify every affected function after installation.
Before energizing DSMB-02C, inspect mounting, connector keying, terminal allocation, protective grounding and paired equipment. After startup, review diagnostics and complete controlled functional tests before returning the equipment to service.
