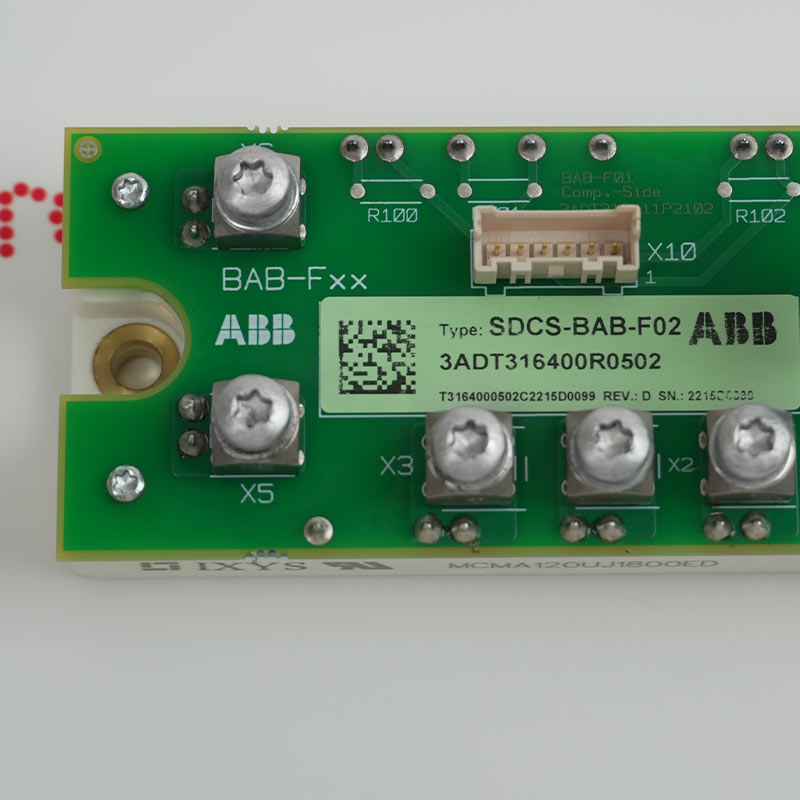

Its primary function is as a basic analog control board, responsible for managing signal acquisition, signal conditioning, and interface coordination between field instruments and the main drive control unit. The SDCS-BAB-F02 3ADT316400R0502 supports processing analog reference inputs, feedback signals, and monitoring channels, thereby achieving stable and precise drive regulation.
In industrial DC drive configurations, the SDCS-BAB-F02 3ADT316400R0502 improves control accuracy by stabilizing voltage and current measurement signals before they are transmitted to the central control processor. It helps improve speed regulation, torque control, and protection monitoring by ensuring high-fidelity acquisition of key operating parameters. Furthermore, the board's modular design allows for integration into ABB drive racks, supporting maintenance and simplifying replacement procedures.
The SDCS-BAB-F02 3ADT316400R0502 ABB Field circuit interfaces board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-BAB-F02 3ADT316400R0502 Field circuit interfaces Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Input excitation signals (such as armature current feedback, excitation current measurements, or reference voltages) are filtered, scaled, and electrically isolated as needed. The conditioned signal is then converted to a standard level compatible with the driver's control electronics. Through this structured signal processing path, the SDCS-BAB-F02 3ADT316400R0502 enables precise closed-loop regulation of DC motor performance while maintaining electrical stability and protection integrity.
