Features:
- The documented product type is Field Control.
- The documented protection is IP 21.
- The documented power supply is 120 Vac (+10, -15%).

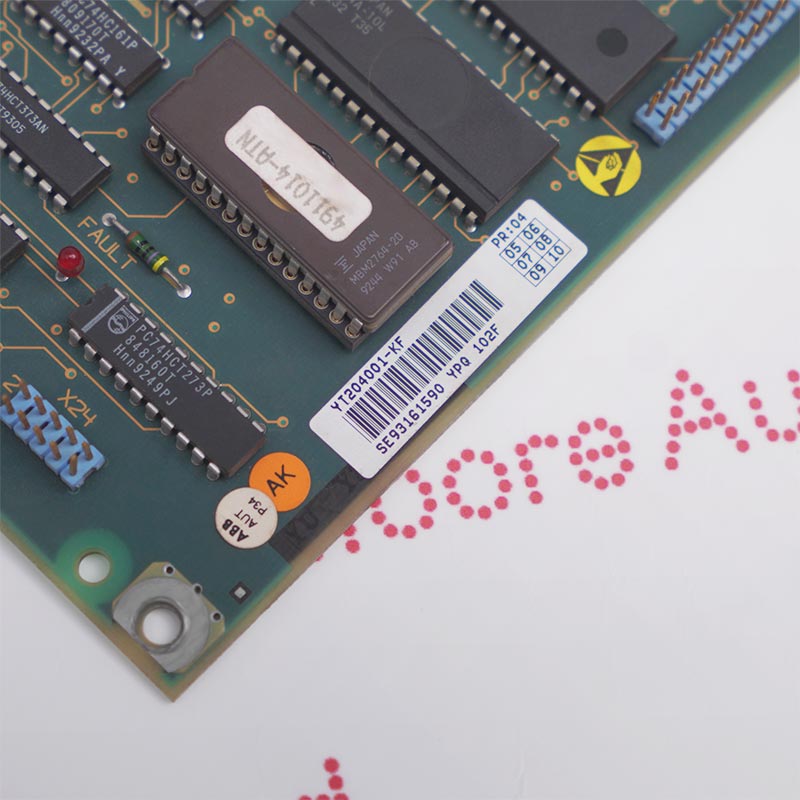

YPQ 102F is an ABB Industrial Field Control Board selected by its complete product identity and documented equipment role. Suitability depends on the installed ABB Drives hardware, interfaces and application requirements matching the supplied unit.
Before replacement, record the nameplate, installed position, terminal or connector arrangement and paired assemblies. After installation, verify every affected power, communication, protection, control or I/O function before returning YPQ 102F to service.
The YPQ 102F ABB Industrial Field Control Board is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB YPQ 102F documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
YPQ 102F performs the documented industrial field control board function within the ABB Drives system. Confirm the recorded power, signal, communication and mechanical interfaces against the approved equipment record. Do not infer ratings or interchangeability from appearance; the complete label and hardware revision control selection.
Replacement of YPQ 102F requires an exact match to the receiving ABB Drives hardware, connected assemblies and configuration record. Record the installed position and connections before removal, preserve required settings, and verify every affected function after installation.
Before energizing YPQ 102F, inspect mounting, connector keying, terminal allocation, protective grounding and paired equipment. After startup, review diagnostics and complete controlled functional tests before returning the equipment to service.
