Breaker Mechanism Match
Stored Energy Safety
Charging Cycle Test
Features:
- The documented product type is Stored-energy charging motor, and this value must match the supplied unit.
- The documented equipment family is ABB circuit-breaker mechanisms, and this value must match the supplied unit.
- The documented supply check is Exact nameplate voltage and frequency, and this value must match the supplied unit.

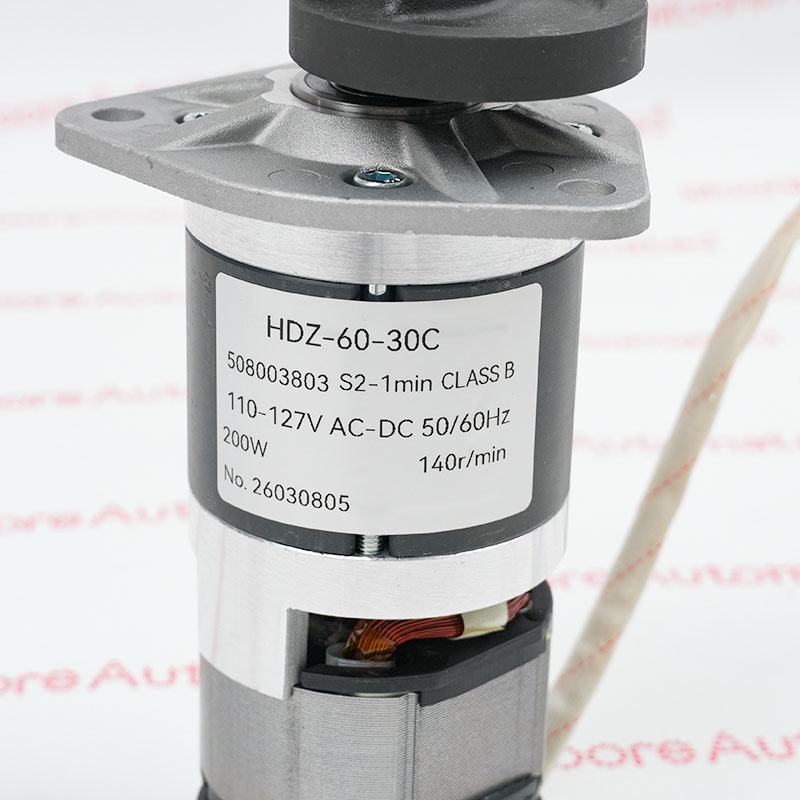

ABB HDZ-60-30C is documented for the applicable General Automation system configuration. Its recorded specification includes product type Stored-energy charging motor, equipment family ABB circuit-breaker mechanisms, supply check Exact nameplate voltage and frequency. Correct selection depends on the complete article identity, installed equipment, mechanical or electrical interfaces and the documented configuration rather than appearance alone. Using the exact model helps maintenance teams avoid incompatible revisions, connector arrangements and application variants.
Before installing HDZ-60-30C, record the original nameplate, installed position, connected assemblies and every relevant configuration detail. Compare the supplied unit with the existing hardware and applicable ABB service documentation, isolate all affected energy sources and preserve required settings or calibration data. After installation, inspect each affected interface and complete controlled functional checks before returning the equipment to service.
The HDZ-60-30C ABB Stored-energy charging motor is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB HDZ-60-30C documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
Verify breaker type, serial number and parts list before selecting HDZ-60-30C.
Discharge and secure the mechanism before touching the motor or transmission.
Prove rotation, charge time, cut-off switch, indication and repeated operating cycles.
