Features:
- ABB article 3BSE007130R1 identifies the PFVI131 power supply unit used with documented Pressductor measurement equipment.

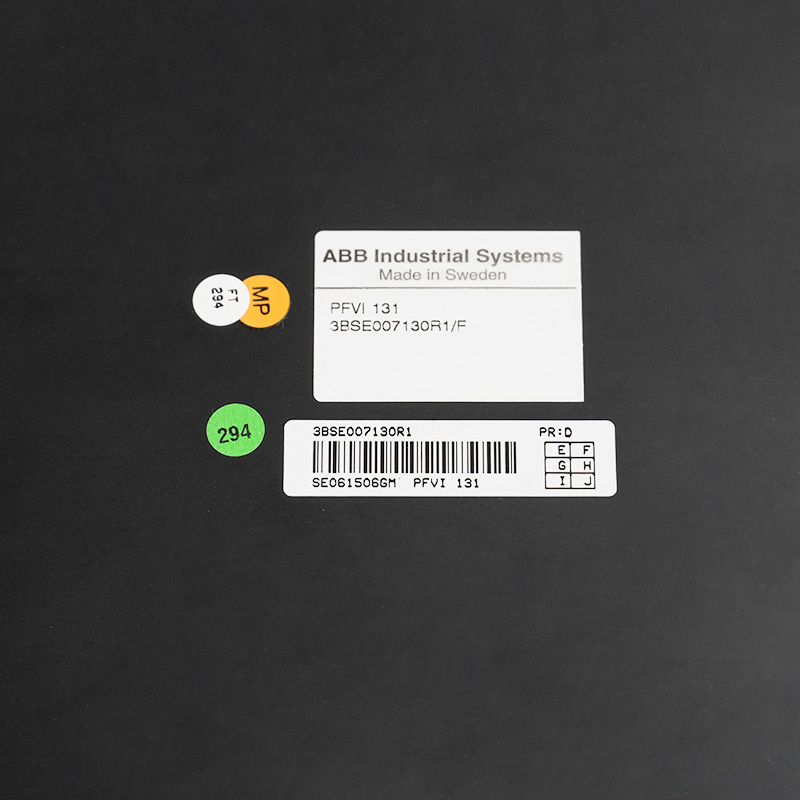

- Confirm article 3BSE007130R1, PFVI131 designation, input supply, output connections, receiving measurement unit and mounting arrangement before replacement.
- Use PFVI131 only in the documented ABB force or tension measurement installation whose wiring and connected equipment identify this exact supply unit.
PFVI131 3BSE007130R1 must be matched to the receiving equipment and project record. Isolate the supply, label every conductor, inspect the connectors and transfer the unit without changing the documented grounding or sensor-system wiring. After installation, verify supply status, output to the connected measuring system, zero response and the complete Pressductor signal chain.
Official source: official ABB PFVI131 product PDF. Values not tied to the exact official source are withheld.
PFVI131 3BSE007130R1 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete model, article number and installed configuration before replacement. All links open in a new page.
Match PFVI131 and article 3BSE007130R1 to the installed measuring system.
Preserve the documented supply, grounding and Pressductor signal-chain arrangement.
Verify supply status, connected electronics and sensor response before service.
