Features:
- Allen-Bradley 1762-IQ8 is an eight-point 24 V DC sinking/sourcing input module for MicroLogix expansion I/O.
- Match the 24 V DC input category, field polarity, common terminal, controller load budget and slot configuration.
- Rockwell Automation MicroLogix 1200 Programmable Controllers User Manual supports the exact-model values listed on this page.

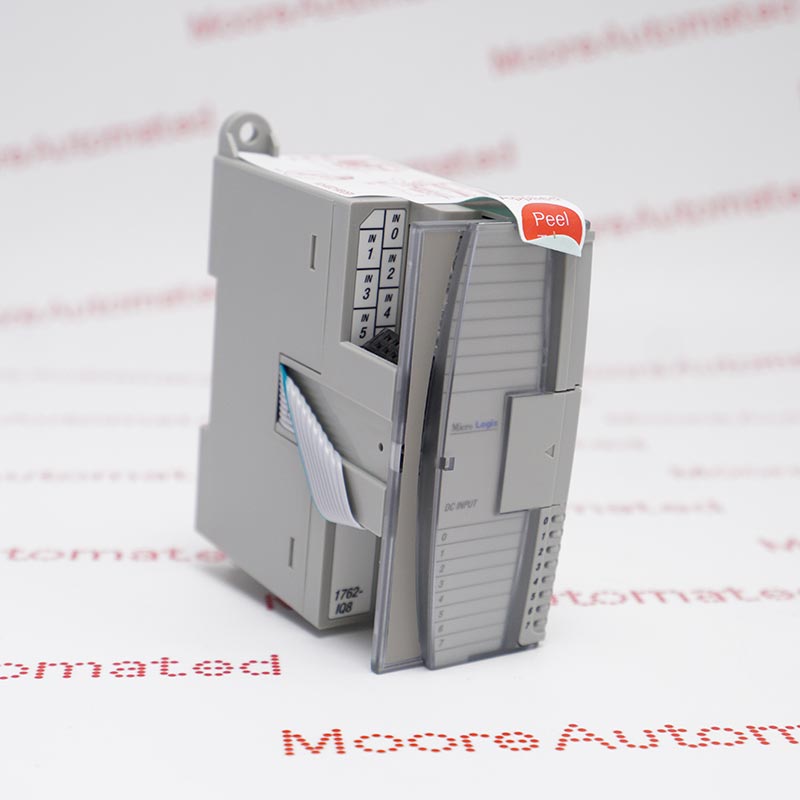

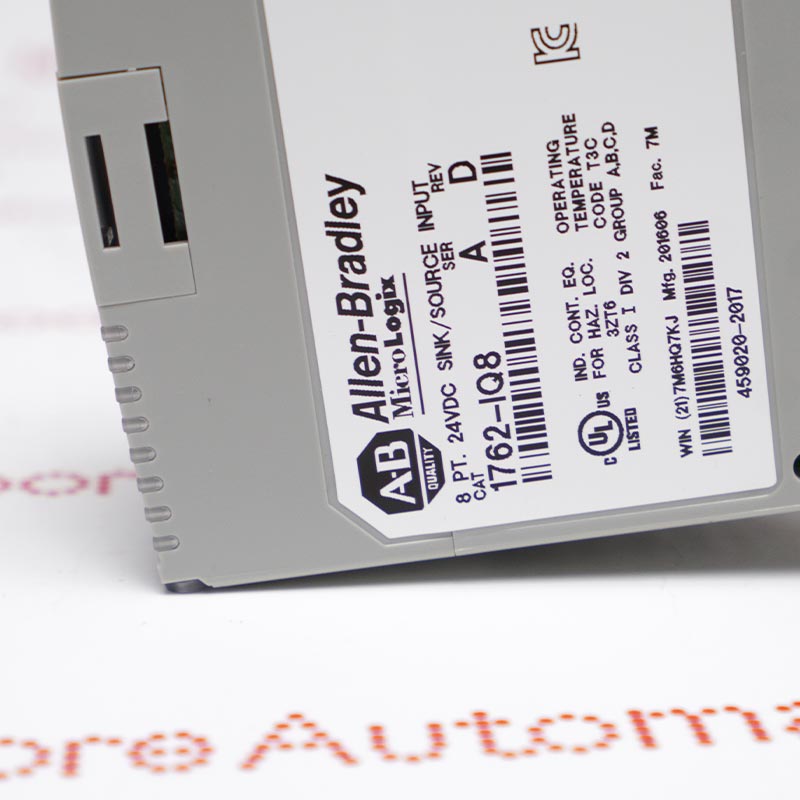

Allen-Bradley 1762-IQ8 is an eight-point 24 V DC sinking/sourcing input module for MicroLogix expansion I/O. It adds eight discrete sensor or contact inputs to a supported MicroLogix system.
Match the 24 V DC input category, field polarity, common terminal, controller load budget and slot configuration. Before removal, record the nameplate, installed position, wiring or cables and approved settings. After installation, verify power and diagnostics first, then test every affected signal, communication or control path before return to service.
The Allen-Bradley 1762-IQ8 eight-point sinking/sourcing DC input module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
1762-IQ8 documentation and reference links.
Important Notice: Confirm the complete catalog number, receiving hardware, firmware or wiring configuration before replacement.
Wire the common for the actual sinking or sourcing field-device arrangement.
Include the 50 mA 5 V load in the MicroLogix expansion-power calculation.
Exercise all eight devices and compare terminal voltage, LED and input image.
