- Digital DC Input Modules is Input Module, 12-24V DC, 8 Input for the documented 1771-IB execution.
- The complete catalog identity and hardware revision must match the approved receiving-system record.
- Connector allocation, paired assemblies and configuration data must be preserved during replacement.

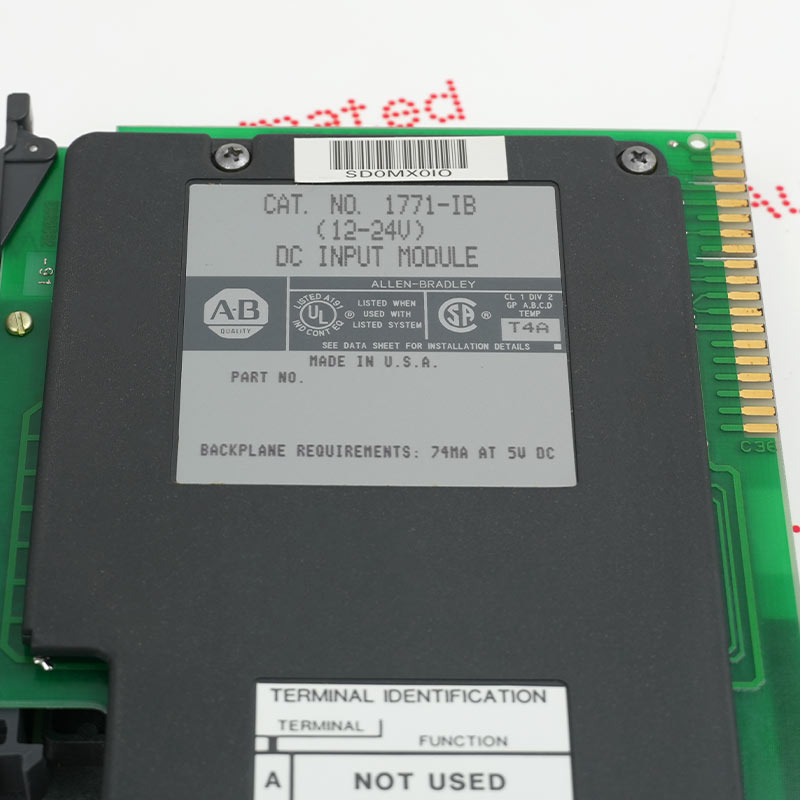

1771-IB is an Allen-Bradley Digital DC input module selected by its complete product identity and documented equipment role. Correct selection depends on the installed controller, hardware execution, connected assemblies and approved 1771 Series I/O configuration rather than appearance alone.
Before installing 1771-IB, record the original nameplate, slot or mounting position, terminal or connector allocation, paired assemblies and relevant settings. Compare the supplied unit with approved documentation, isolate affected energy sources, preserve configuration data and complete controlled diagnostics and functional checks before return to service.
The 1771-IB Allen-Bradley Digital DC input module is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 1771-IB documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1771-IB performs the documented digital dc input module role within the 1771 Series I/O platform. Digital DC Input Modules is Input Module, 12-24V DC, 8 Input; Operating Voltage Range is 12-24 V DC; Module Type is Digital DC Input Module
Replacement of 1771-IB requires a verified match to the receiving 1771 Series I/O hardware, controller revision, connected assemblies and configuration record. Preserve the installed slot, connectors and required settings before removal, then verify every affected function after installation.
After installing 1771-IB, confirm power, communication, I/O or motion interfaces as applicable; review controller diagnostics; restore approved configuration data; and complete the documented functional test before production release.
