Features:
- Operating Voltage Range is 100-240 V AC for the documented 2711-B5A8X execution.
- The complete catalog identity and hardware revision must match the approved receiving-system record.
- Connector allocation, paired assemblies and configuration data must be preserved during replacement.

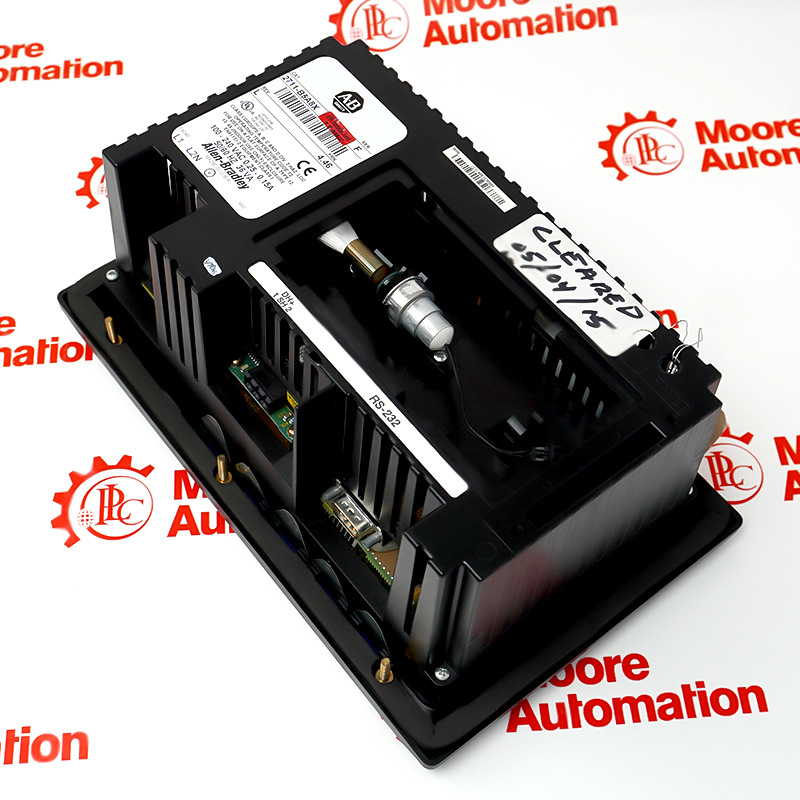

2711-B5A8X is an Allen-Bradley Panelview 550 Touchscreen/Keypad selected by its complete product identity and documented equipment role. Correct selection depends on the installed controller, hardware execution, connected assemblies and approved PanelView configuration rather than appearance alone.
Before installing 2711-B5A8X, record the original nameplate, slot or mounting position, terminal or connector allocation, paired assemblies and relevant settings. Compare the supplied unit with approved documentation, isolate affected energy sources, preserve configuration data and complete controlled diagnostics and functional checks before return to service.
The 2711-B5A8X Allen-Bradley Panelview 550 Touchscreen/Keypad is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 2711-B5A8X documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

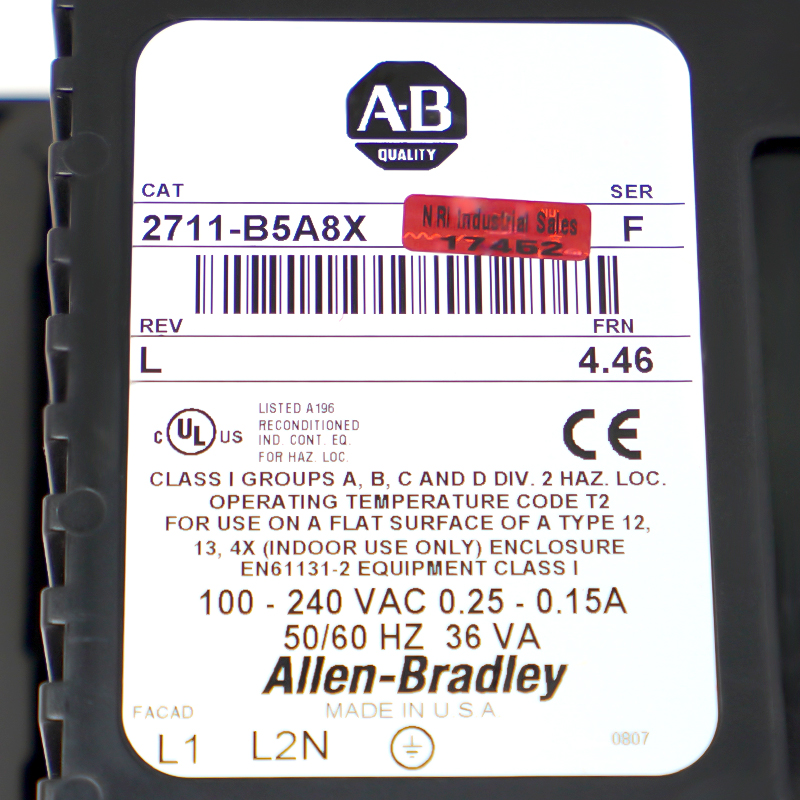

2711-B5A8X performs the documented panelview 550 touchscreen/keypad role within the PanelView platform. Operating Voltage Range is 100-240 V AC; Documented Current is 0.15 A; Line Frequency is 50/60 Hz
Replacement of 2711-B5A8X requires a verified match to the receiving PanelView hardware, controller revision, connected assemblies and configuration record. Preserve the installed slot, connectors and required settings before removal, then verify every affected function after installation.
After installing 2711-B5A8X, confirm power, communication, I/O or motion interfaces as applicable; review controller diagnostics; restore approved configuration data; and complete the documented functional test before production release.
