Features:
- Output Channels is 16 for the documented 1746-OG16 execution.
- The complete catalog identity and hardware revision must match the approved receiving-system record.
- Connector allocation, paired assemblies and configuration data must be preserved during replacement.

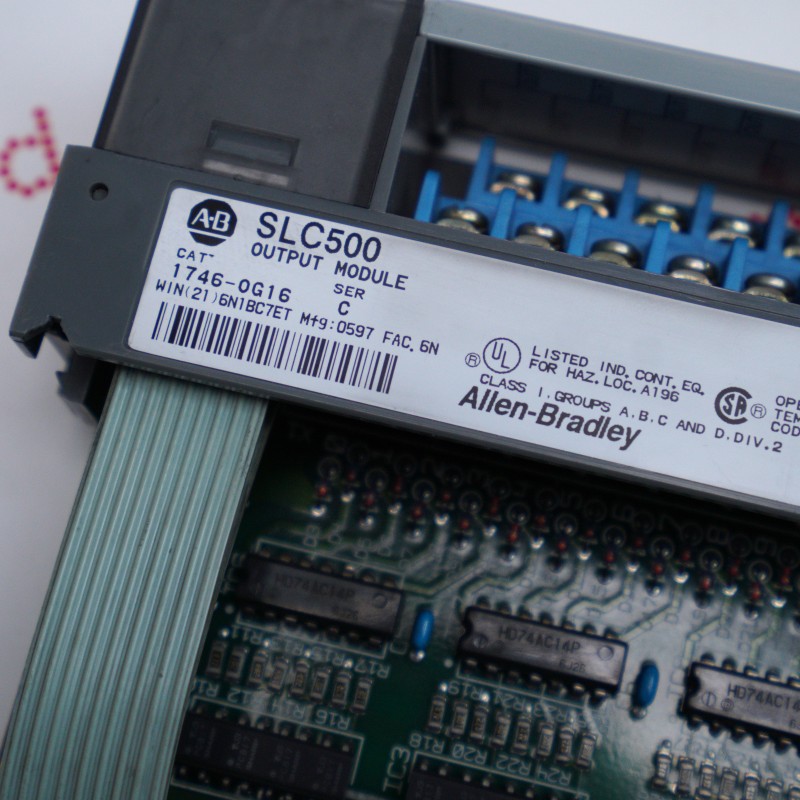

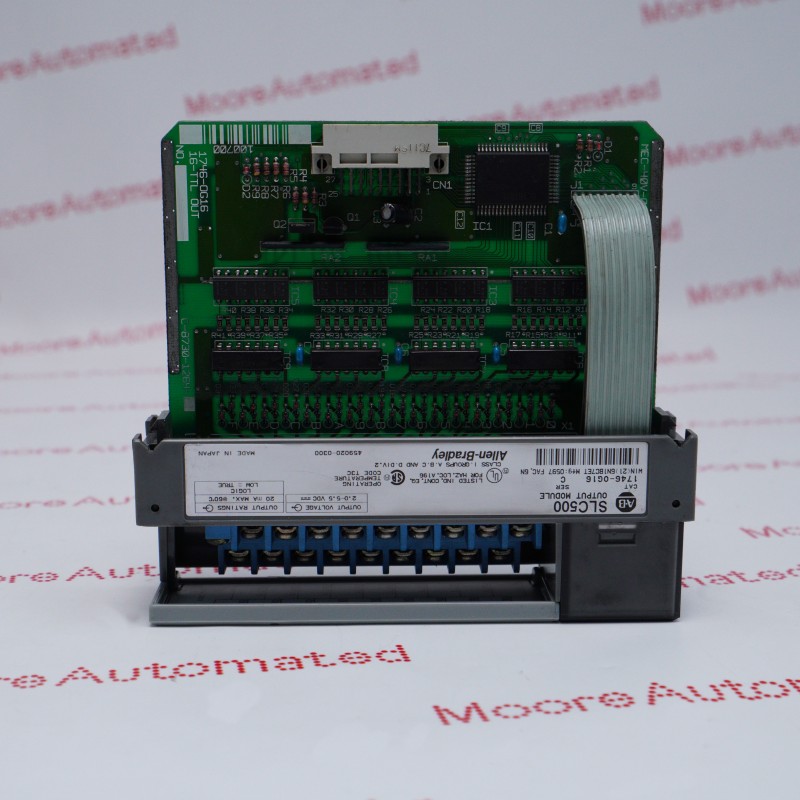

1746-OG16 is an Allen-Bradley Current Sinking TTL Output Module selected by its complete product identity and documented equipment role. Correct selection depends on the installed controller, hardware execution, connected assemblies and approved SLC 500 configuration rather than appearance alone.
Before installing 1746-OG16, record the original nameplate, slot or mounting position, terminal or connector allocation, paired assemblies and relevant settings. Compare the supplied unit with approved documentation, isolate affected energy sources, preserve configuration data and complete controlled diagnostics and functional checks before return to service.
The 1746-OG16 Allen-Bradley Current Sinking TTL Output Module is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 1746-OG16 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1746-OG16 performs the documented current sinking ttl output module role within the SLC 500 platform. Output Channels is 16; Operating Voltage Range is 4.5-5.5 V DC; Documented Current is 20 MA
Replacement of 1746-OG16 requires a verified match to the receiving SLC 500 hardware, controller revision, connected assemblies and configuration record. Preserve the installed slot, connectors and required settings before removal, then verify every affected function after installation.
After installing 1746-OG16, confirm power, communication, I/O or motion interfaces as applicable; review controller diagnostics; restore approved configuration data; and complete the documented functional test before production release.
