      Balluff BES 516-114-SA1-05
      Balluff BES 516-114-SA1-05
      Balluff BES 516-114-SA1-05
      Balluff BES 516-114-SA1-05
      Balluff BES 516-114-SA1-05
      Balluff BES 516-114-SA1-05

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Temperature-rated inductive sensors

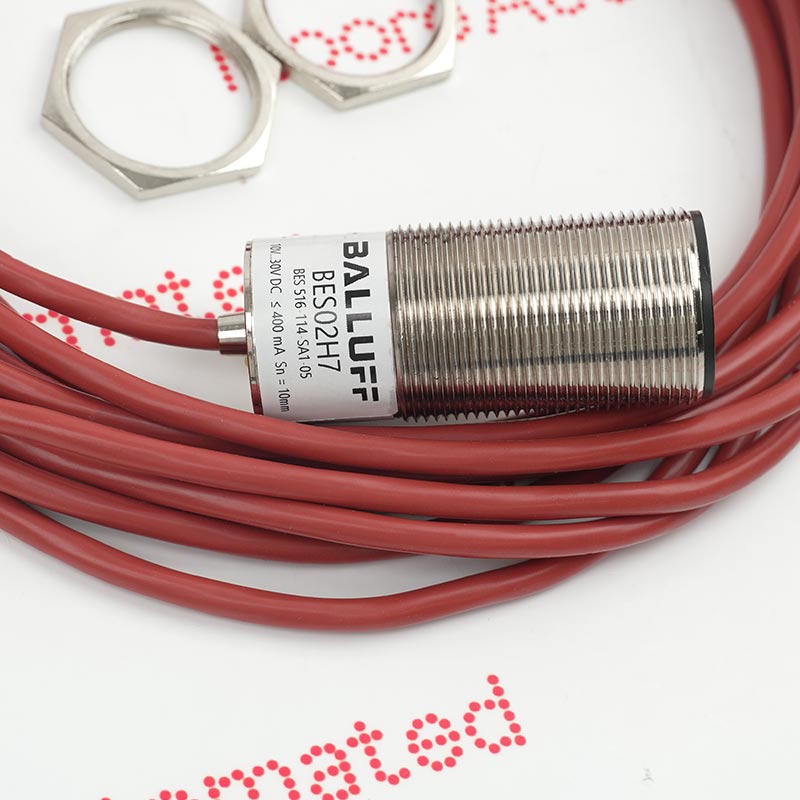

      BES 516-114-SA1-05

      Spare Part Number

      PNBES 516-114-SA1-05

      Product Information:

      Inductive Sensors

      Temperature-rated

      inductive sensors

      industrial automation system

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      BES 516-114-SA1-05

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Balluff
      • Product Category:
        General Automation
      • Spare Part Number:
        BES 516-114-SA1-05
      • Estimated shipping dimensions:
        12.5 x 20.3 x 3.6 cm
      • Weight:
        0.23 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Mounting in steel:
        shielded
      • Assured operating distance Sa:
        0...8.0mm
      • Hysteresis:
        15%
      • Ambient temperature range:
        -25...+120°C
      • Time delay before availability:
        10ms
      • Wiring:
        4-Wire
      • Rated opertional current:
        400mA
      • Series:
        Balluff
      • Stock Availability:
        10
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      BES516114SA105 BES 516 114 SA1 05

      Manuals

      PRODUCT & ORDER FAQS

      Questions buyers ask about BES 516-114-SA1-05

      • What are the primary sensing characteristics and operational principles of the BES 516-114-SA1-05 proximity sensor?

        The BES 516-114-SA1-05 employs inductive proximity sensing technology, enabling non-contact detection of metallic targets within a sensing range of 5 mm. Its operating principle relies on oscillating electromagnetic fields, which are disrupted by the presence of conductive objects, thereby triggering the sensor output.

      • How does the BES 516-114-SA1-05 ensure reliability and precision in harsh industrial environments?

        Constructed with a robust stainless steel housing and an ingress protection rating of IP67, the BES 516-114-SA1-05 exhibits superior resistance against dust, moisture, and mechanical stresses. This durability ensures consistent detection performance even under severe conditions such as vibration, oil contamination, and temperature fluctuations ranging from -25°C to +70°C.

      • What are the response time and switching frequency capabilities of the BES 516-114-SA1-05, and how do these parameters affect dynamic sensing applications?

        With a rapid switching frequency up to 1 kHz and a response time of approximately 0.5 ms, the BES 516-114-SA1-05 is well-suited for high-speed detection tasks, including conveyor systems, automated assembly lines, and robotics where precise and timely object detection is critical.

      • What diagnostic or status indication features are integrated into the BES 516-114-SA1-05 to facilitate maintenance and troubleshooting?

        The sensor includes an integrated LED indicator that provides immediate visual feedback on switching status, enabling quick verification of sensor operation during commissioning and routine maintenance, thereby minimizing downtime and troubleshooting complexity.

      • What electromagnetic compatibility (EMC) and environmental standards does the BES 516-114-SA1-05 comply with?

        The BES 516-114-SA1-05 adheres to stringent EN 60947-5-2 standards for proximity switches and conforms to CE marking directives ensuring electromagnetic compatibility, industrial safety, and environmental robustness for deployment in global industrial automation markets.

      • What is the recommended approach for integrating the BES 516-114-SA1-05 into existing automation control systems?

        Integration involves connecting the sensor’s PNP output to the programmable logic controller (PLC) or discrete input module, ensuring the supply voltage falls within the prescribed range of 10 to 30 V DC. Adhering to recommended wiring practices, including shielding and proper grounding, enhances signal integrity and reduces susceptibility to electrical noise.
