Features:
- 330500-00-02 is identified by sensitivity 100 mV/in/s +/-5% within the documented 330500 Velomitor piezo-velocity sensors configuration.
- The official specification gives frequency response as 4.5 Hz to 5 kHz +/-3 dB, which must be retained during selection.
- Commissioning must also preserve velocity range (50 in/s peak) and the stated connection limits.

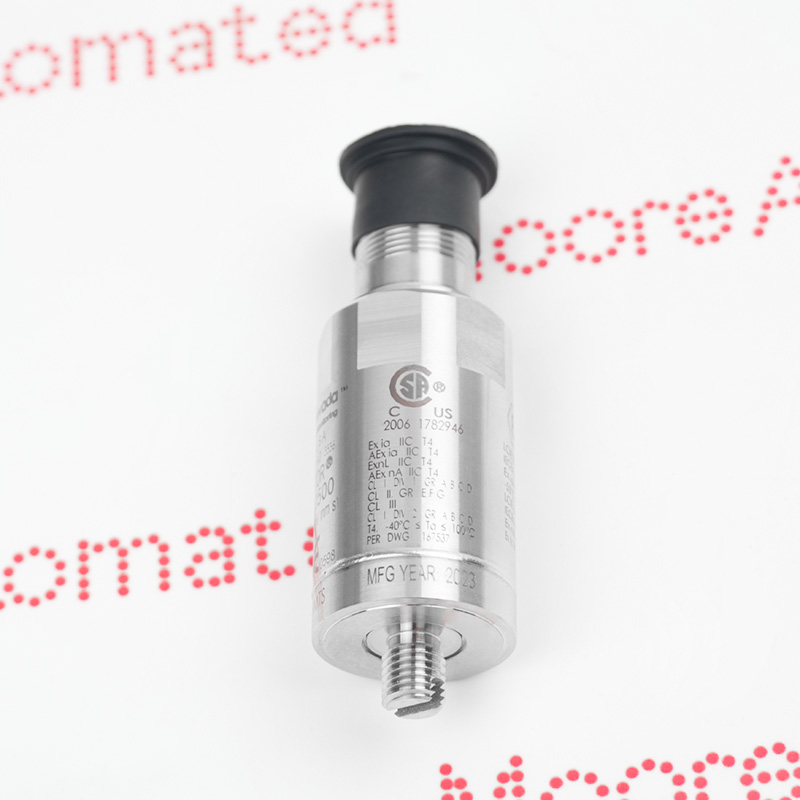

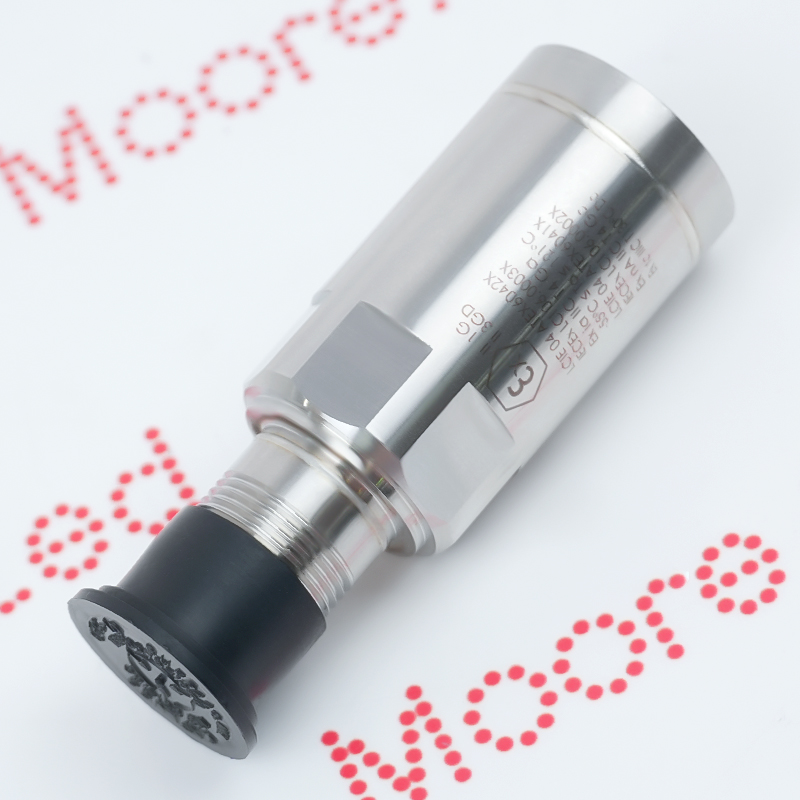

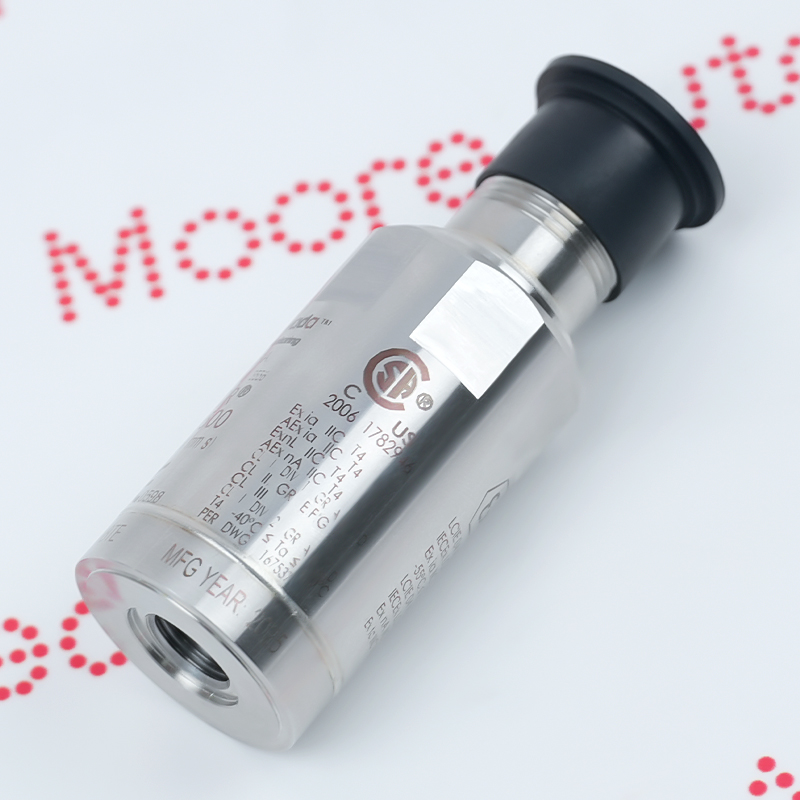

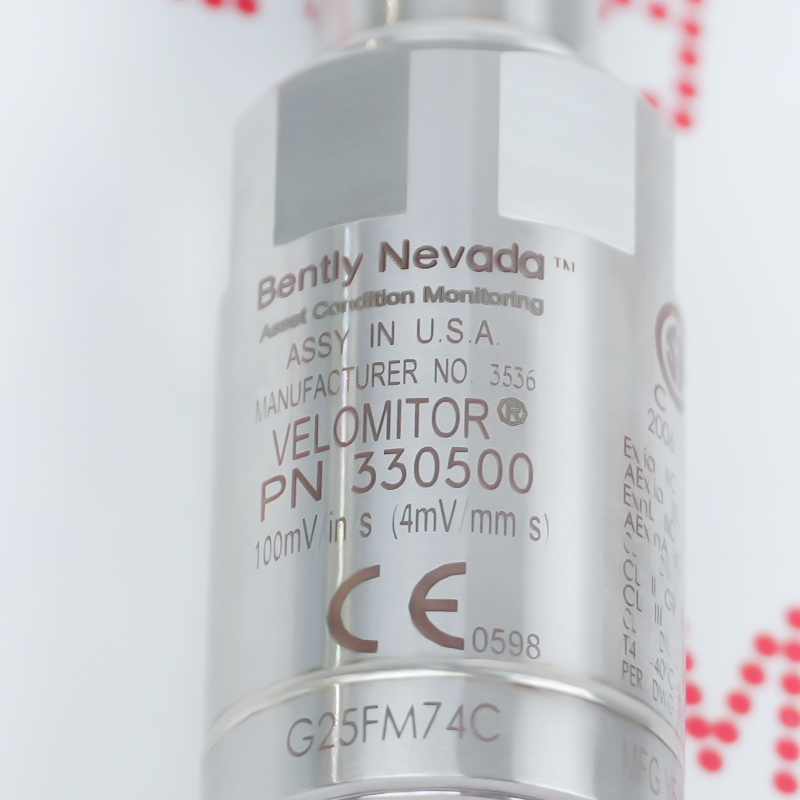

A hermetically sealed Velomitor sensor that measures absolute bearing-housing, casing or structural vibration as velocity. The model provides 100 mV/in/s sensitivity, a broad 4.5 Hz to 5 kHz response, case isolation and a -12 VDC nominal output bias. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official 330500 Velomitor piezo-velocity sensors documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 330500-00-02.
Bently Nevada 330500-00-02 piezo-velocity vibration sensor exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete 330500-00-02 identity and compare sensitivity, frequency response and velocity range with the installed design before approving a replacement.
Use a monitoring input designed for the negative-bias three-wire Velomitor signal and 100 mV/in/s scaling. Confirm cable pinout, channel power, mounting adapter and expected frequency range.
Mount rigidly on a prepared surface with the required adapter or stud, keep the sensing axis aligned, secure the cable and confirm bias voltage, polarity and vibration response before enabling alarms.
