Features:
- Over-Speed PROTECTION MONITORING MODULE
- Designed to provide high-reliability safety monitoring for rotating machinery
- TMR (Triple Modular Redundancy) with three Monitors E1668
It plays a crucial role in maintaining stable communication between field devices and the upper-level control platform, ensuring consistent data transmission and reliable system coordination. Its robust construction and industrial-grade design enable long-term stable operation in environments with electrical noise, vibration, and temperature fluctuations.
Protect rotating machinery, such as turbines, expanders, compressors and motors, in accordance with the following safety requirements: SIL3/IEC61508 and DIN EN ISO 13849:2008 Cat.3 PLe and/or API 670 to prevent overspeed and other harsh operating conditions.

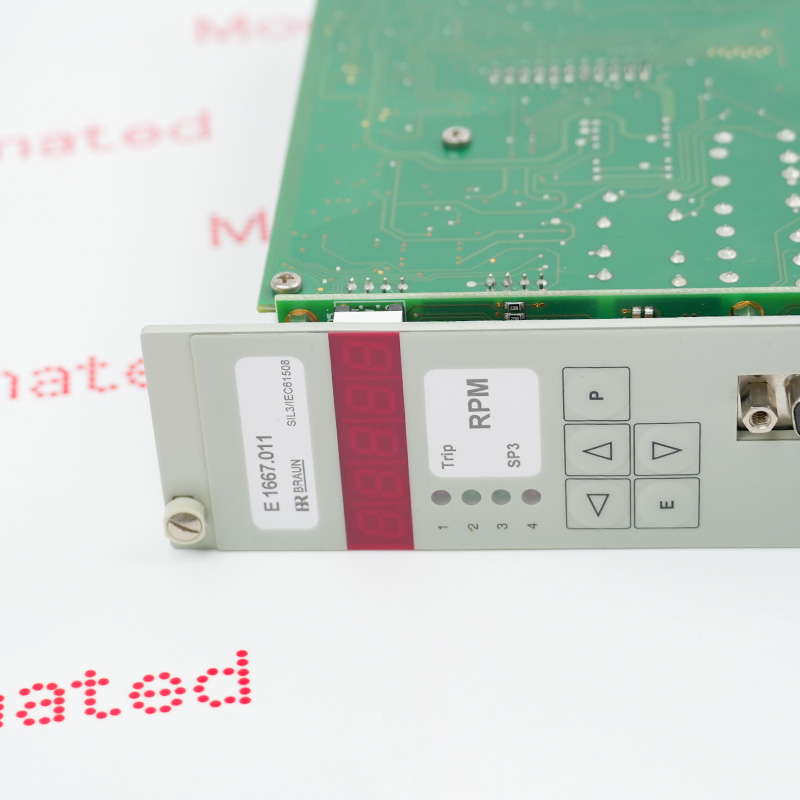

The E1667.011 Braun Protection Monitoring Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Braun E1667.011 Protection Monitoring Module info(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It receives input signals from connected devices, processes these signals through internal circuitry, and then transmits the processed output signals to the control system. This closed-loop interaction ensures precise control, stable communication, and synchronized operation within the automation network.
2003 (Three-out-of-Three) Voting Mechanism:E1667 monitors typically operate in a three-unit configuration. The system will only trigger a trip if at least two monitors detect overspeed, thus avoiding false trips due to a single sensor failure.
Multi-Sensor Evaluation:Each module receives signals from three independent sensors (e.g., Hall effect sensors, eddy current sensors, or magnetic sensors) and calculates speed based on its own input or the median of the three sensors.
Fast Response Time:The system trip response time is less than 15 milliseconds, meeting the stringent requirements of API 670 and API 612 standards.
Maintenance-Free Operation:Designed for a lifespan of up to 20 years, requiring no external verification testing, significantly reducing the total cost of ownership.
