Features:
- Provides the documented field-wiring, termination or LocalBus connection function.
- Matches a defined card, carrier side or channel arrangement in DeltaV hardware.
- Requires exact keying, connector orientation and cable-path verification.

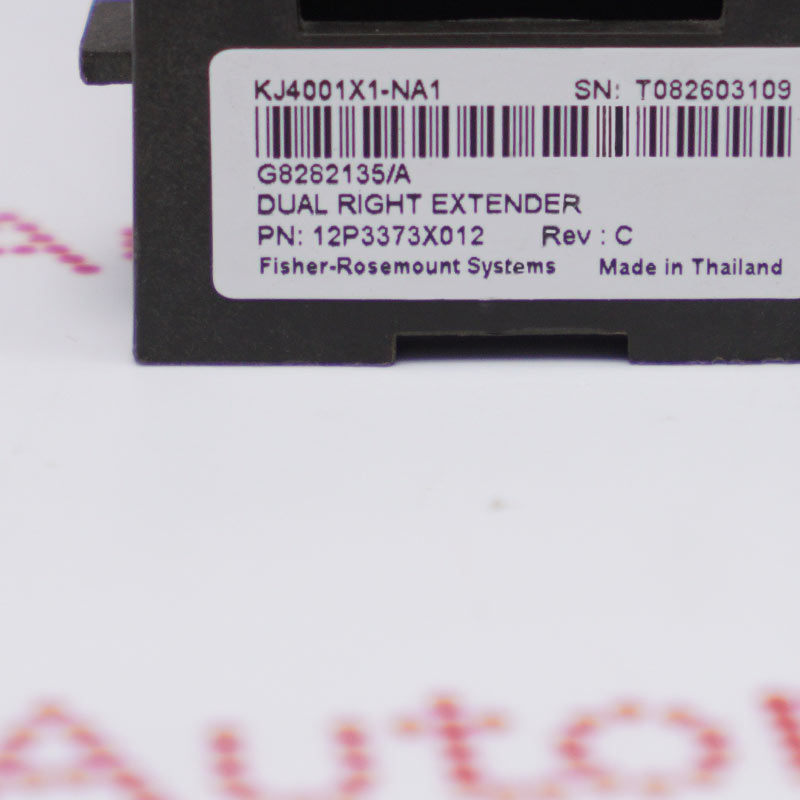

KJ4001X1-NA1 is the Emerson DeltaV One-wide right carrier extender. The exact part number defines its hardware function and receiving platform; the replacement must be checked against the installed carrier or terminal block, field wiring, controller generation and project configuration.
For service work, retain the original channel assignments, keying, network settings and hardware revision. Source boundary: Emerson DeltaV hardware references identify the product type; project-specific compatibility, firmware and lifecycle status require order-stage confirmation. Accessories, terminal blocks, cables and licenses are included only when they are stated in the written quotation.
The official lifecycle status of KJ4001X1-NA1 was not independently confirmed in the cited hardware reference. Moore Automated can check exact-item supply, revision and condition against the written quotation.
Emerson 12P3373X012 official product PDF and reference links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Identify whether the assembly terminates analog, discrete, serial, fieldbus or LocalBus connections.
Match the terminal or cable to the exact I/O card, carrier side, channel count and redundancy arrangement.
Verify connector keying, pin count, cable orientation, shield practice and field power before installation.
