Features:
- Acquires the documented dry-contact or powered discrete input signals.
- Provides the official channel count and isolation arrangement for the exact card.
- Uses the specified terminal block, keying and field-voltage configuration.

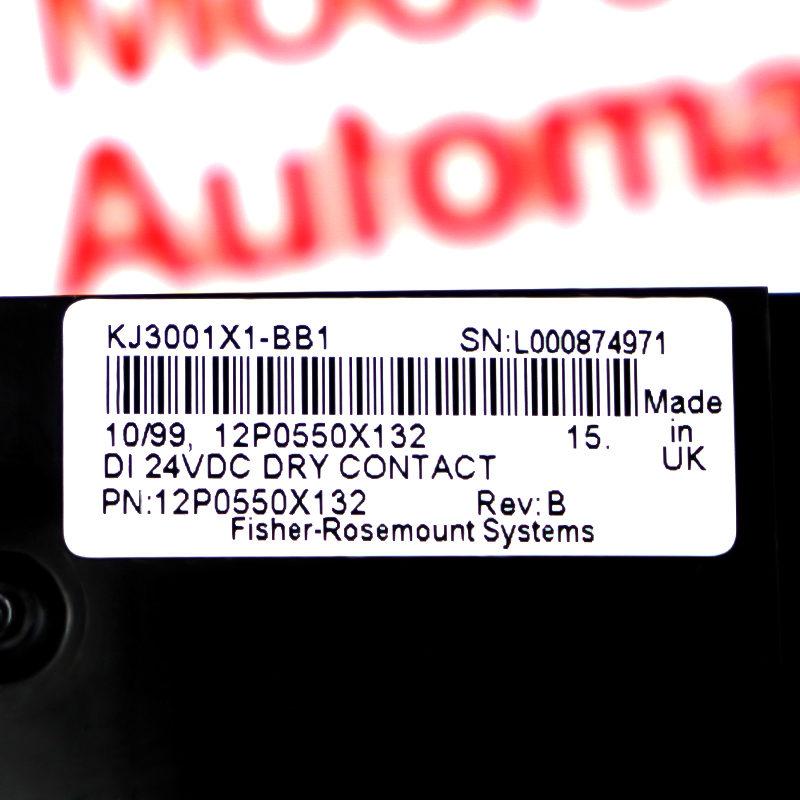

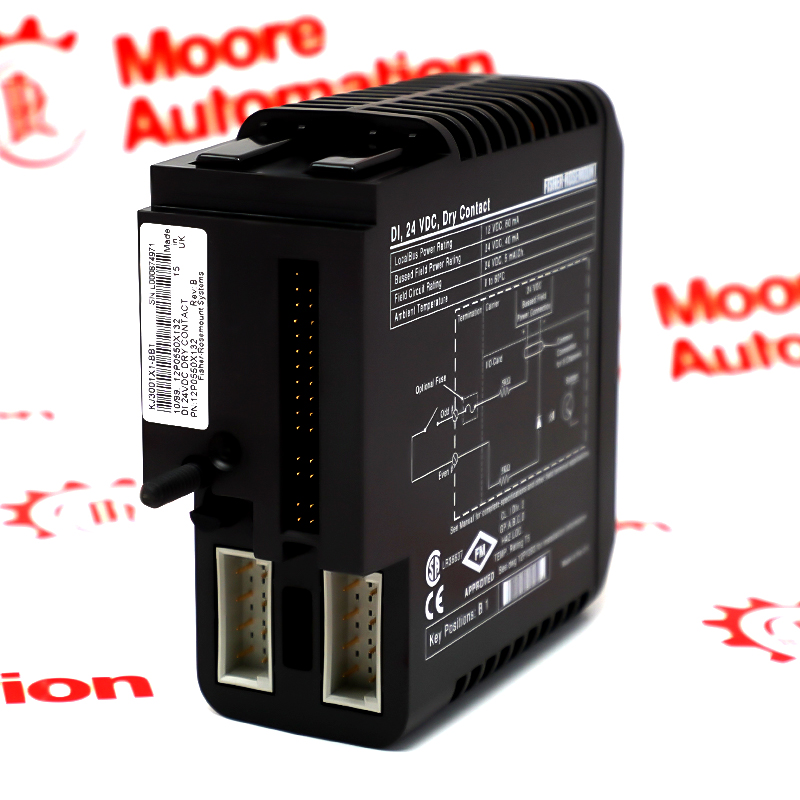

KJ3001X1-BB1 is the Emerson DeltaV DI, 8-Channel, 24 VDC, Dry Contact card. The exact part number defines its hardware function and receiving platform; the replacement must be checked against the installed carrier or terminal block, field wiring, controller generation and project configuration.
For service work, retain the original channel assignments, keying, network settings and hardware revision. Source boundary: Emerson DeltaV hardware references identify the product type; project-specific compatibility, firmware and lifecycle status require order-stage confirmation. Accessories, terminal blocks, cables and licenses are included only when they are stated in the written quotation.
The official lifecycle status of KJ3001X1-BB1 was not independently confirmed in the cited hardware reference. Moore Automated can check exact-item supply, revision and condition against the written quotation.
Emerson KJ3001X1-BB1 12P0550X132 DeltaV product reference links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm dry-contact, isolated, NAMUR, AC or DC input type and field supply before connecting devices.
Apply only the documented on/off thresholds and filtering for the exact card and DeltaV configuration.
Match the input card to its approved terminal block, key position, common wiring and channel assignment.
