Features:
- Connects DeltaV to a configured PROFIBUS DP segment.
- Acts within the documented master or interface role of the exact card.
- Requires correct bus cabling, address, termination and device configuration.

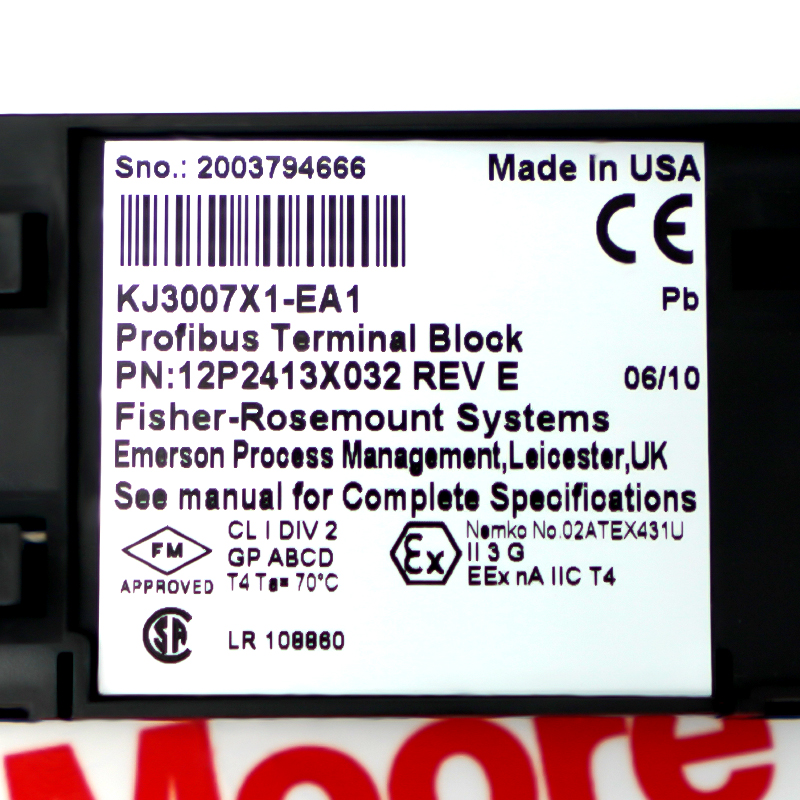

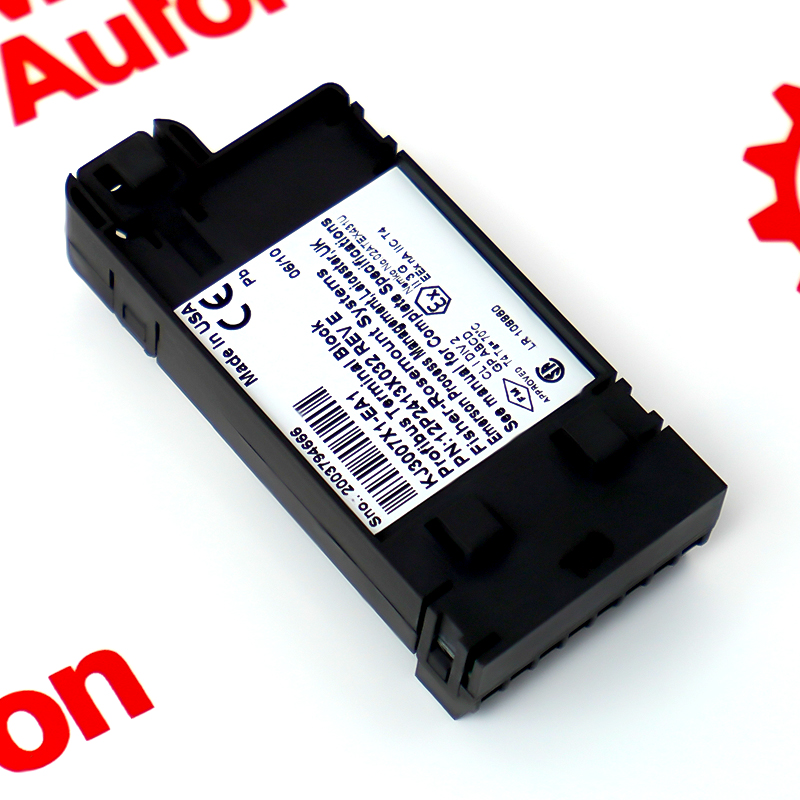

KJ3007X1-EA1 is the Emerson DeltaV Profibus DP terminal block. The exact part number defines its hardware function and receiving platform; the replacement must be checked against the installed carrier or terminal block, field wiring, controller generation and project configuration.
For service work, retain the original channel assignments, keying, network settings and hardware revision. Source boundary: Emerson DeltaV hardware references identify the product type; project-specific compatibility, firmware and lifecycle status require order-stage confirmation. Accessories, terminal blocks, cables and licenses are included only when they are stated in the written quotation.
The official lifecycle status of KJ3007X1-EA1 was not independently confirmed in the cited hardware reference. Moore Automated can check exact-item supply, revision and condition against the written quotation.
Emerson KJ3007X1-EA1 12P2413X032 DeltaV product reference links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm card generation, master/slave role, node count and DeltaV software support for the installed segment.
Use approved PROFIBUS cable, connectors and termination at the physical segment ends.
Match station addresses, baud rate, GSD files and cyclic data mapping before commissioning.
