- Switches the documented AC or DC field loads from DeltaV logic.
- Provides the official channel count and high-side or isolated output architecture.
- Requires matched terminal hardware, field power and protective loading.

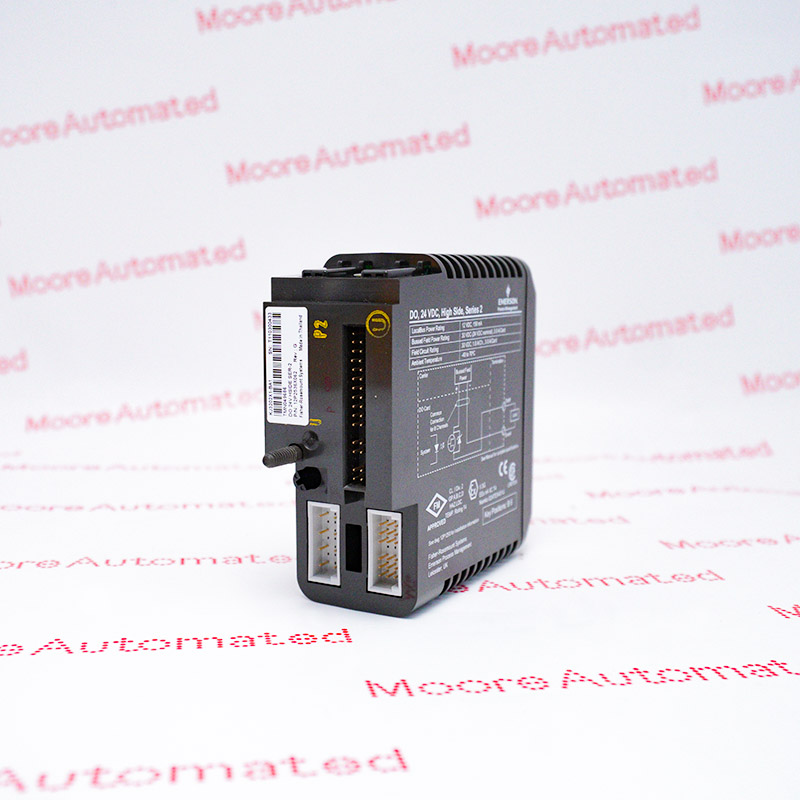

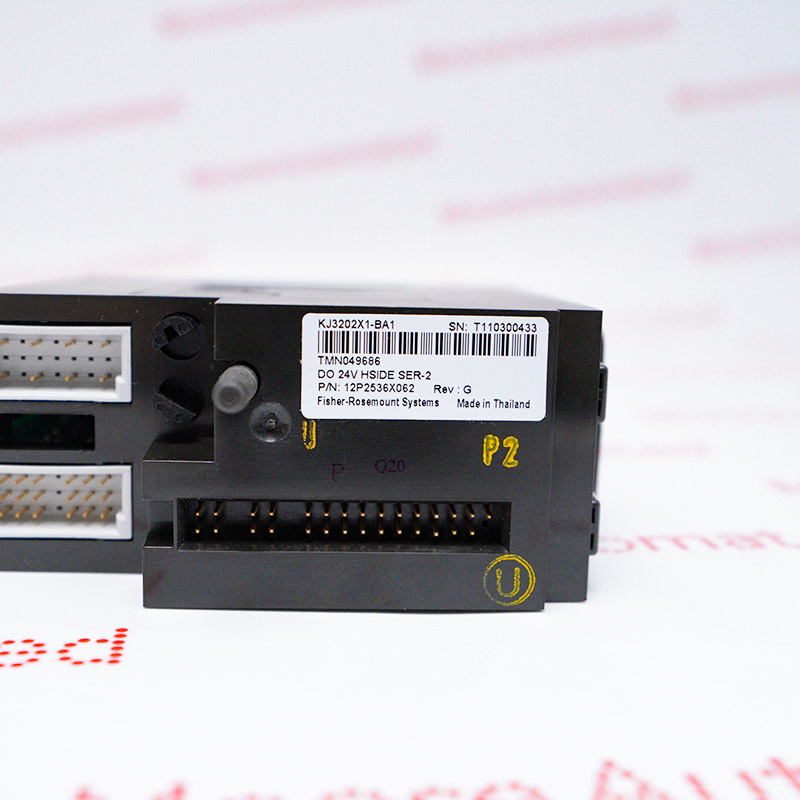

KJ3202X1-BA1 is the Emerson DeltaV Series 2 DO, 24 VDC, High-Side card. The exact part number defines its hardware function and receiving platform; the replacement must be checked against the installed carrier or terminal block, field wiring, controller generation and project configuration.
For service work, retain the original channel assignments, keying, network settings and hardware revision. Source boundary: Emerson DeltaV hardware references identify the product type; project-specific compatibility, firmware and lifecycle status require order-stage confirmation. Accessories, terminal blocks, cables and licenses are included only when they are stated in the written quotation.
The official lifecycle status of KJ3202X1-BA1 was not independently confirmed in the cited hardware reference. Moore Automated can check exact-item supply, revision and condition against the written quotation.
Emerson VE4032S1T2B1 KJ3202X1-BA1 12P2536X062 DeltaV product reference links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Match channel count, output voltage and high-side or isolated switching arrangement to the field circuit.
Confirm load current, inrush, suppression, shared power and fuse requirements before energizing outputs.
Use the documented terminal block, keying and field-power connections for the exact output card.
