Features:
- Serial Interface FTA for Modbus for the documented Honeywell Experion / TPS.
- Interface Type: EIA-RS232-D or EIA-485.
- Number of Serial Ports: 2 per SIM, 1 per FTA.

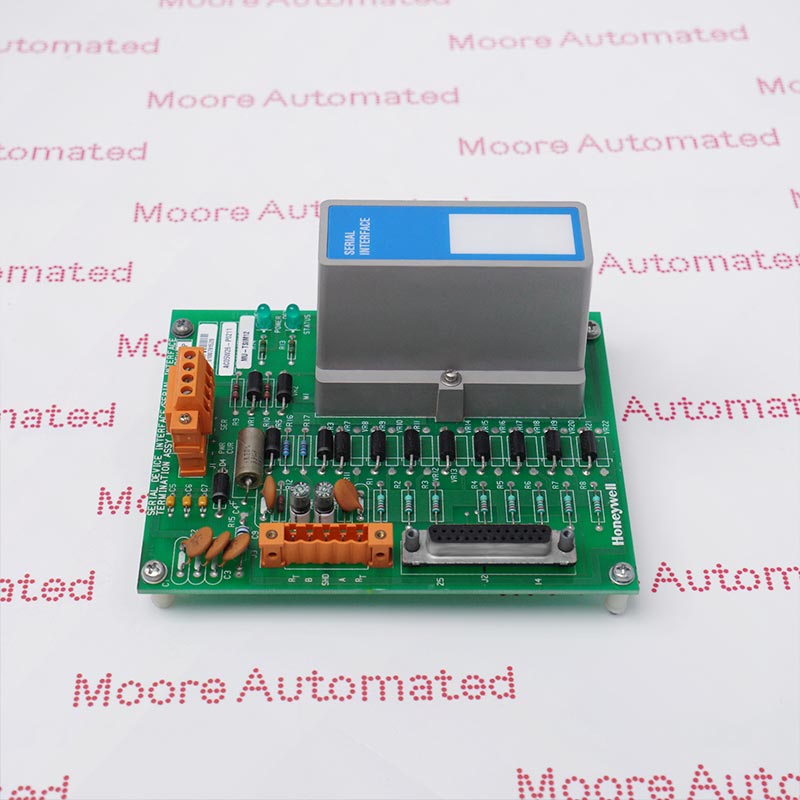

MU-TSIM12 51303932-426 belongs to the Honeywell Experion / TPS and performs the documented serial interface fta for modbus role in the Honeywell Experion PKS and TPS control system. The retained technical evidence records Interface Type: EIA-RS232-D or EIA-485; Number of Serial Ports: 2 per SIM, 1 per FTA; Power Adapter to FTA Distance: 300 meters (984 feet). The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Honeywell Experion / TPS receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The MU-TSIM12 51303932-426 Serial Interface FTA for Modbus is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Honeywell MU-TSIM12 51303932-426 Serial Interface FTA for Modbus Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Data Path: MU-TSIM12 51303932-426 performs the serial interface fta for modbus function within the Honeywell Experion / TPS. The retained documentation identifies interface type as EIA-RS232-D or EIA-485; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Hardware Fit: approve MU-TSIM12 51303932-426 only for the documented Honeywell Experion PKS and TPS control system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.

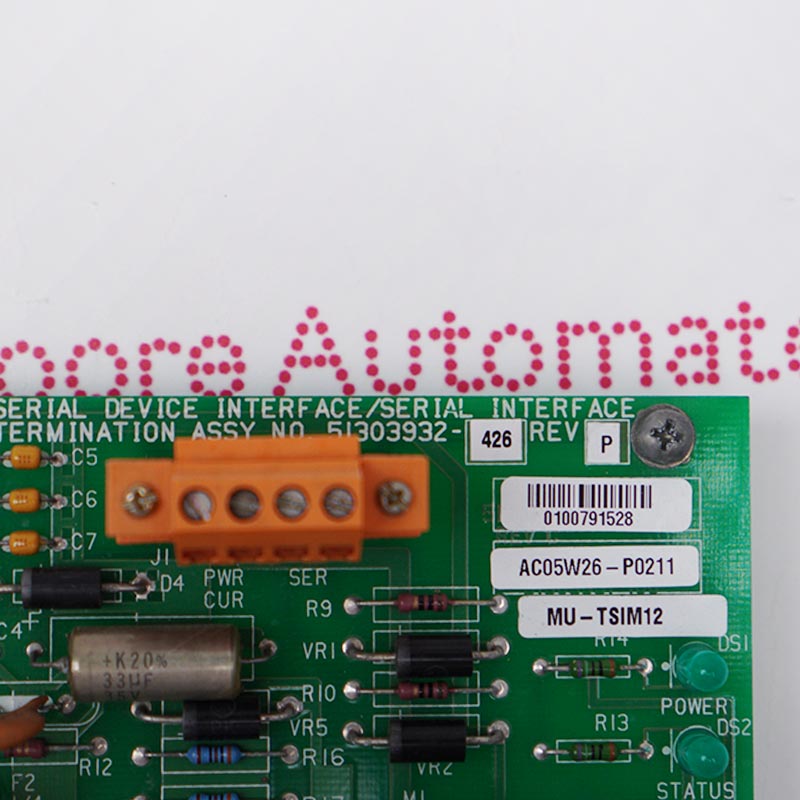

Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Service Checks: isolate the equipment, remove stored energy and inspect the receiving hardware before installing MU-TSIM12 51303932-426.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
