Features:
- Digital Output Modules for the documented Triconex fault-tolerant safety systems.
- Nominal Voltage: 24 V DC.
- Output Signals: 32, commoned.

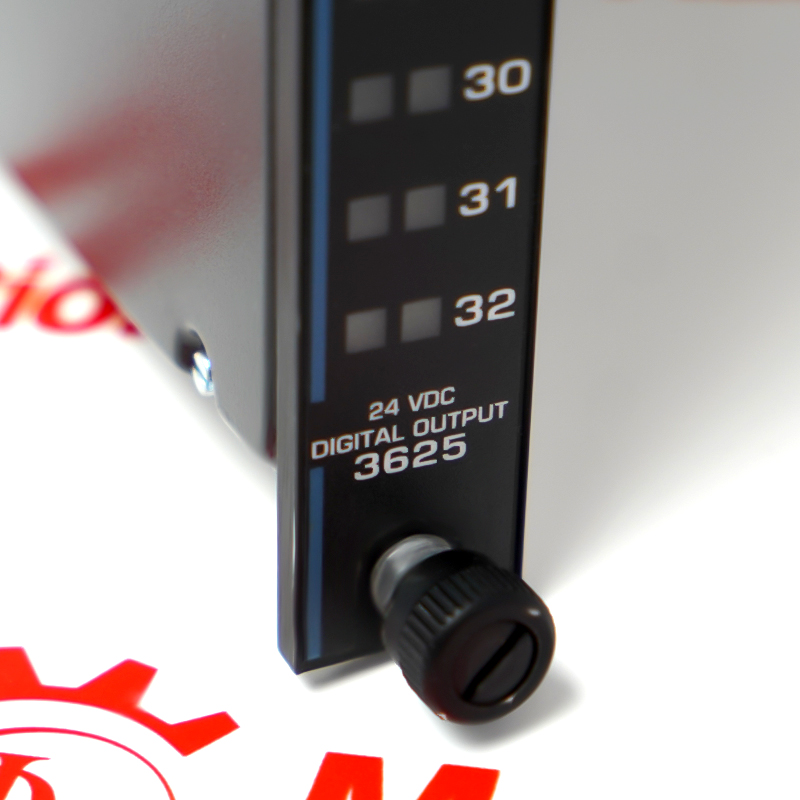

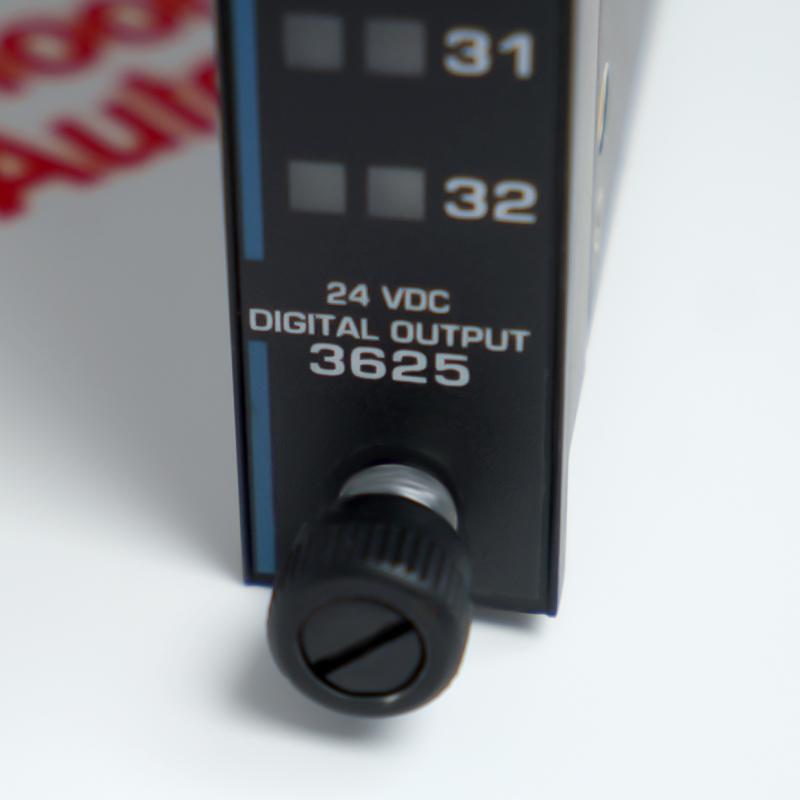

3625 belongs to the Triconex fault-tolerant safety systems and performs the documented digital output modules role in the Triconex Tricon and Trident safety architecture. The retained technical evidence records Nominal Voltage: 24 V DC; Output Signals: 32, commoned; Voltage Range: 16-32 VDC. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Triconex fault-tolerant safety systems receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The 3625 Digital Output Modules is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Triconex 3625 Digital Output Modules Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Signal Mapping: 3625 performs the digital output modules function within the Triconex fault-tolerant safety systems. The retained documentation identifies nominal voltage as 24 V DC; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Hardware Context: approve 3625 only for the documented Triconex Tricon and Trident safety architecture. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Functional Test: isolate the equipment, remove stored energy and inspect the receiving hardware before installing 3625.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
