- SZ-VH1 is identified by head type Standard, non-camera within the documented SZ-V safety laser scanners configuration.

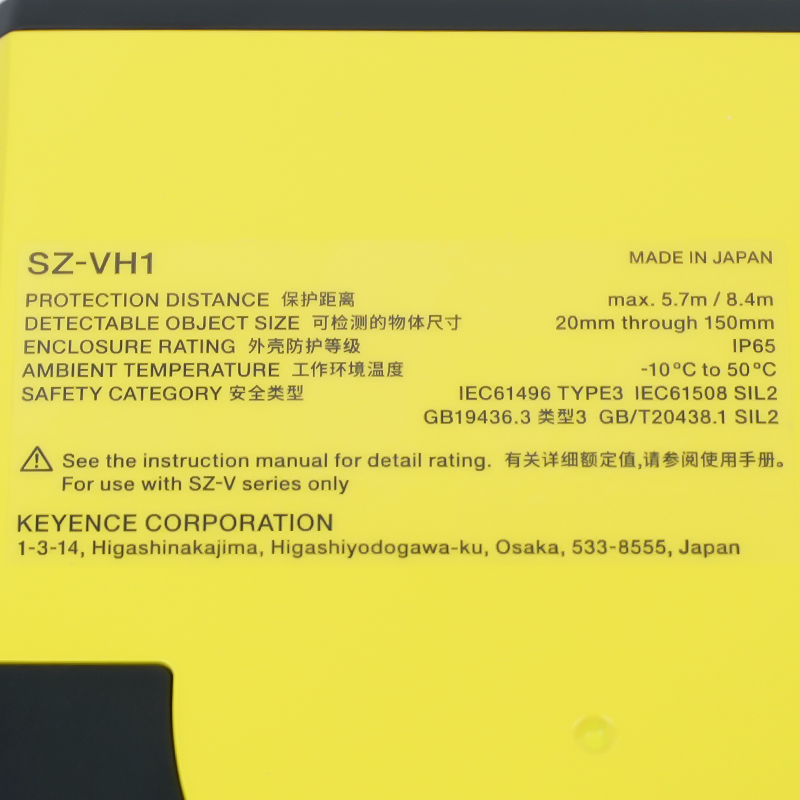

- The official specification gives detectable angle as 190 degrees (-5 to 185 degrees), which must be retained during selection.
- Commissioning must also preserve minimum object size (20, 30, 40, 50, 70 or 150 mm by setting) and the stated connection limits.

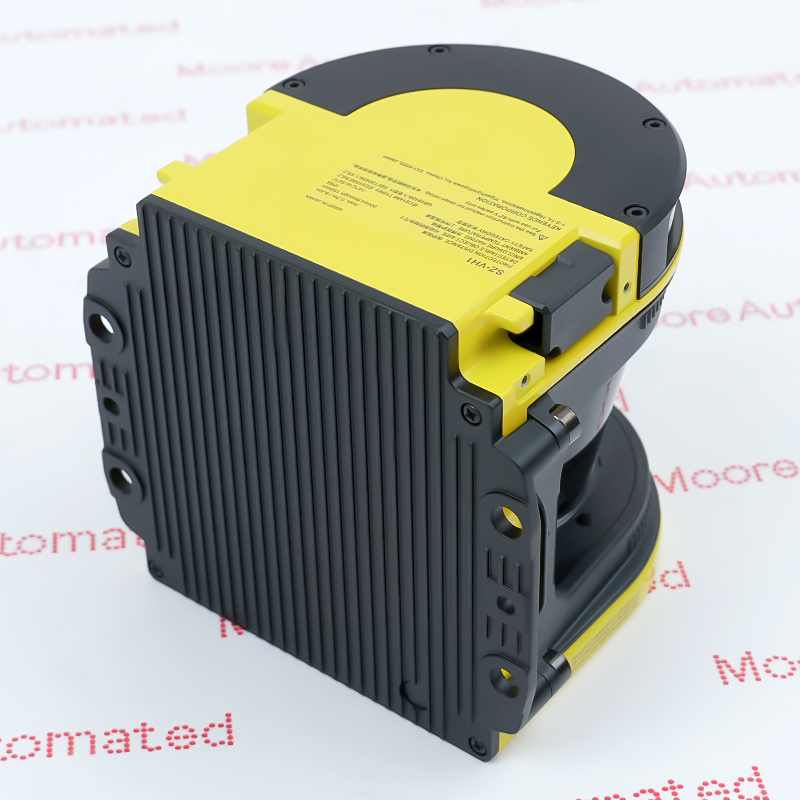

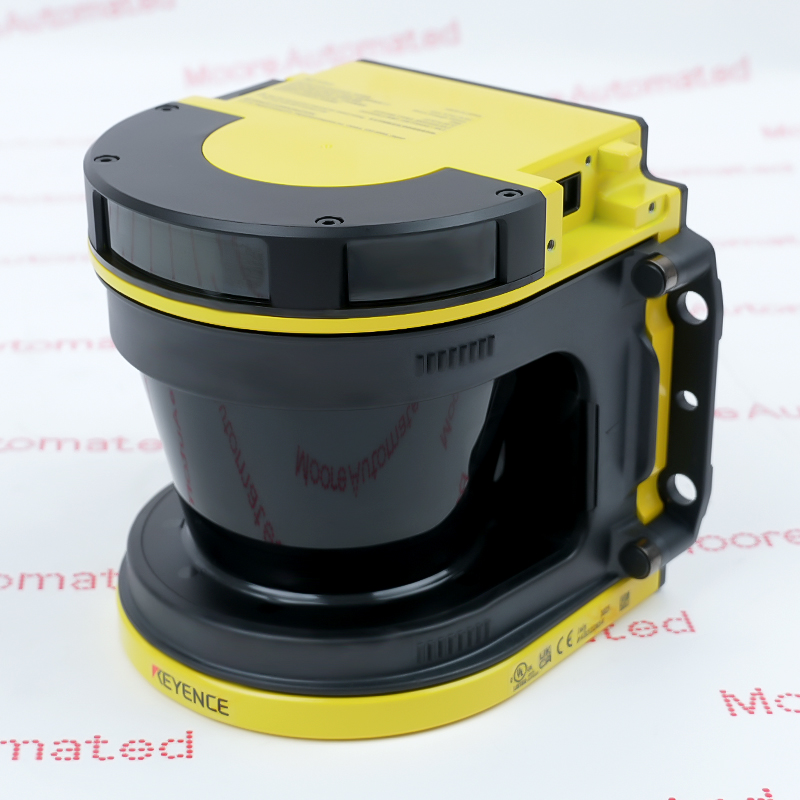

A standard scanner head for the modular SZ-V safety laser scanner. The head works with a compatible SZ-V display/control unit and system memory to detect objects across a 190-degree field; the non-camera VH1 head must not be confused with the VH1X camera version. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official SZ-V safety laser scanners documentation.
Moore Automated supports exact-item verification and spare-part enquiries for SZ-VH1.
No public single-model PDF was located for SZ-VH1; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete SZ-VH1 identity and compare head type, detectable angle and minimum object size with the installed design before approving a replacement.
Compatibility depends on the selected SZ-V04, SZ-V32 or network display/control unit, its system memory, connection cable and validated safety configuration. A head exchange must retain the approved protective-field and response-time calculation.
Mount the scanner to the KEYENCE dimensional and bracket instructions, keep the detection plane clear, connect the approved head cable, load the validated configuration and perform a full protective-field and OSSD safety test before restart.
