Features:

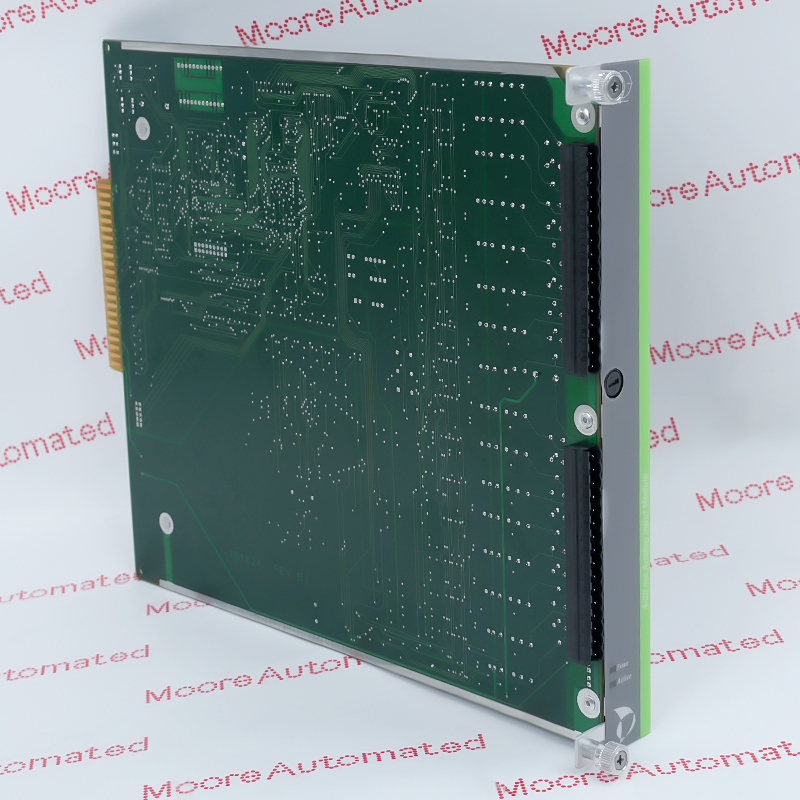

- 16-Channel Isolated Analog Input Module for the documented Metso maxPAC.
- Input Channels: 16 isolated analog input channels.
- Operating Mode: maxPAC or Model 564 compatibility mode.
IOP301 belongs to the Metso maxPAC and performs the documented 16-channel isolated analog input module role in the Metso maxDNA / maxPAC distributed I/O system. The retained technical evidence records Input Channels: 16 isolated analog input channels; Operating Mode: maxPAC or Model 564 compatibility mode; Bus Address Use: 2 addresses in maxPAC mode. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Metso maxPAC receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The IOP301 16-Channel Isolated Analog Input Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Metso IOP301 16-Channel Isolated Analog Input Module Manual(Datasheets), Link
Important Notice: The uploaded PDF documents IOP301 or its identified product family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Signal Mapping: IOP301 performs the 16-channel isolated analog input module function within the Metso maxPAC. The retained documentation identifies input channels as 16 isolated analog input channels; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Architecture Fit: approve IOP301 only for the documented Metso maxDNA / maxPAC distributed I/O system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Loop Testing: isolate the equipment, remove stored energy and inspect the receiving hardware before installing IOP301.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
