Features:
- EDS-405A-SS-SC is identified by switch layer Layer 2 managed within the documented EDS-405A managed Ethernet switches configuration.
- The official specification gives total ports as 5, which must be retained during selection.
- Commissioning must also preserve copper ports (3 x 10/100BaseT(X) RJ45) and the stated connection limits.

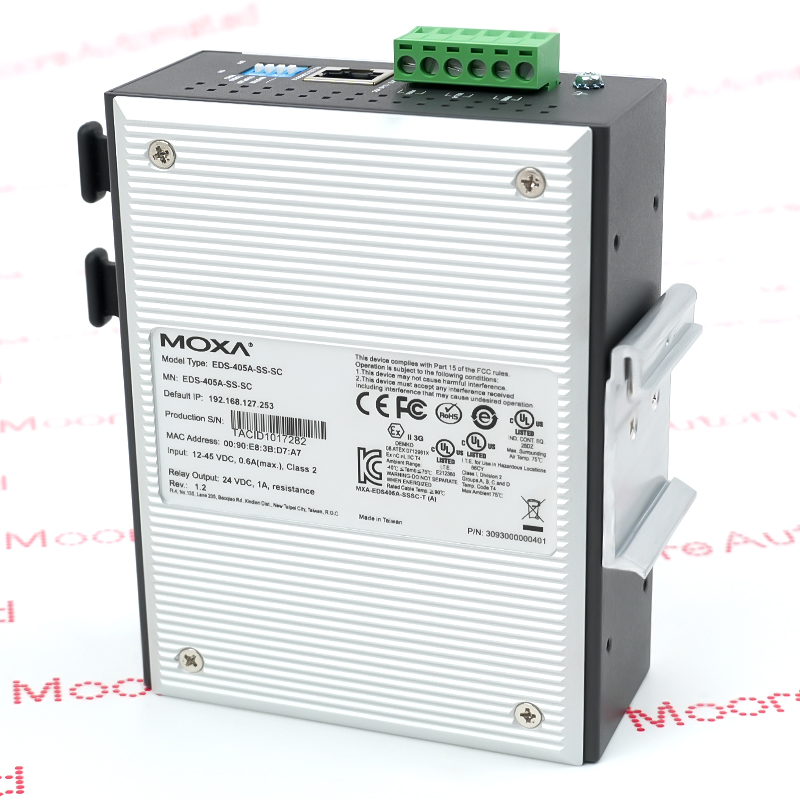

A five-port Layer 2 managed industrial Ethernet switch with three 10/100BaseT(X) RJ45 ports and two 100BaseFX single-mode SC fiber ports. The standard-temperature SS-SC model supports a 40 km typical single-mode link and network-management functions for deterministic industrial communications. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official EDS-405A managed Ethernet switches documentation.
Moore Automated supports exact-item verification and spare-part enquiries for EDS-405A-SS-SC.
No public single-model PDF was located for EDS-405A-SS-SC; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete EDS-405A-SS-SC identity and compare switch layer, total ports and copper ports with the installed design before approving a replacement.
Verify single-mode G.652 fiber, SC connectors, optical loss budget, 24/48 VDC supply, configured VLANs, redundancy, IP address and management protocol. Back up the running switch configuration.
Mount on DIN rail, bond the grounding screw, wire redundant power and relay contacts, clean and inspect SC connectors, confirm optical attenuation and restore the validated VLAN and management configuration.
