What is the Allen-Bradley PanelView series? Why is the PanelView series crucial for industrial automation?
The Allen-Bradley PanelView series is a range of industrial human-machine interface (HMI) terminals designed for machine and process visualization. These devices offer touchscreen or keyboard interaction, real-time monitoring of production data, alarm management, and seamless communication with PLC systems. Known for their reliability and tight integration with the Rockwell Automation ecosystem, PanelView terminals are widely used in manufacturing, energy, and process industries for efficient control, diagnostics, and operational visualization.
Basic Operating Procedures
Operating Allen-Bradley PanelView series equipment typically begins with powering on and accessing the Human Machine Interface (HMI). Operators can use touchscreens or buttons to switch between different screens to view equipment status, production data, and alarm information. When intervention is needed, control commands can be sent to the PLC via buttons, input boxes, or sliders to perform operations such as start, stop, and parameter adjustments. Simultaneously, the system records alarms and historical data, facilitating diagnosis and troubleshooting by maintenance personnel. The entire process emphasizes intuitiveness, real-time performance, and secure access control.
How to operate PanelView for equipment monitoring?
More Rockwell Automation Products Available

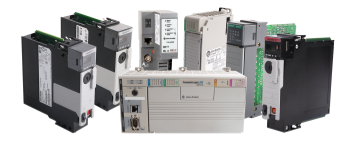

In addition to the Allen-Bradley PanelView HMI, Moore Automated offers a variety of mainstream PLCs and automation control products, including ControlLogix, CompactLogix, PLC-5, and the SLC 500 series. These control platforms meet a wide range of application needs, from large, complex production lines to small and medium-sized equipment. They can work in conjunction with PanelView HMIs to build complete automation solutions, achieving unified integration from field control and data acquisition to system monitoring, helping companies improve production efficiency and system reliability.
Unlock Smarter Factory Control with the 2711P-T6C5D/C

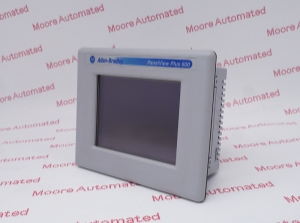

The Allen-Bradley 2711P-T6C5D/C is a high-performance touchscreen HMI terminal in the Allen-Bradley PanelView Plus 6 series, featuring a 6-inch color touchscreen and an enhanced graphical interface. It supports multi-touch operation, fast-response interface navigation, and seamless communication with ControlLogix or CompactLogix PLCs, displaying production data, alarm information, and operational control options in real time. Furthermore, this model boasts a rugged industrial design, environmental adaptability, and integrates with other automation equipment via Ethernet or serial interfaces, providing an intuitive, safe, and efficient operating experience for factory automation.
The Allen-Bradley 2711-B6C10 is a standard Allen-Bradley PanelView 600 operator terminal. It is powered by an 85-264VAC external power supply and features a 5-inch display, a built-in DeviceNet communication interface, and an RS232 interface for printer communication. It has ten (10) function keys and a touchscreen interface.
The 2711P-RN10C is a DeviceNet communication module manufactured by Allen Bradley, designed for seamless integration into industrial network systems. With a nominal input voltage of 24 V DC, this module can connect up to 64 nodes and is suitable for complex automation systems. It supports multiple network baud rates, including 125 kbps, 250 kbps, and 500 kbps, providing flexible communication speed options.
The Allen-Bradley T6C8L1 is a PanelView 600 operator terminal with embedded features and functionality that enable it to function as a human-machine interface (HMI). It enables real-time monitoring of connected machines or processes through an embedded color screen and touch interface, as well as a built-in Data Highway Plus (DH+) communication port.
The Allen-Bradley 2713P-T7WD1 is a PanelView 5310 user interface device. This visualization component is designed for ControlLogix 5570 and 5580, as well as CompactLogix L1, L2, and L3. The user interface features an Ethernet communication interface, a 7-inch color widescreen display, and is operated via a touchscreen. The terminal is powered by an external 18-30VDC power supply.
Automation Spare Parts & Controller
One Contact Person
At Moore Automated you will be working alongside one account manager who is assigned to any enquiry you request. This account manager has been fully trained and understands you are looking for the highest quality, best price and quickest lead-time possible. Your account manager will be completely open & honest and assigned to help you with even the smallest question at any time.
Q1:Through which mechanisms does PanelView integrate with PLCs and control networks?
PanelView communicates via Ethernet/IP and serial protocols, enabling seamless data exchange with ControlLogix, CompactLogix, SLC-500, or PLC-5 controllers for real-time control and monitoring.
Q2:What industrial environmental standards does PanelView equipment meet?
PanelView products are designed for harsh environments, featuring robust protection ratings (e.g., IP54/IP65), vibration and shock resistance, and a wide operating temperature range as specified in the technical specifications.
Q3:How does the PanelView system support data visualization and alarm diagnostics?
Built-in alarm, event, and trend objects provide context-sensitive operational insights, enabling operators to quickly assess process status and historical performance.
Q4:Why is vendor expertise so important when selecting PanelView components?
Specialty partners like Moore Automated offer PanelView and related PLC platform products, and provide technical guidance, configuration advice, and legacy system support for complex integration projects.
Q5:What are some ways to expand PanelView's functionality or storage?
External SD cards or USB modules can expand storage, speed up project deployment, simplify upgrade processes, and do not interrupt runtime operations. Please contact us for more details (miya@mvme.cn).
