Features:
- Logic module designed specifically for the Panelview Plus 6 series
- It supports Ethernet and RS-232 communication, enabling a variety of connectivity options
- Includes 512 MB of RAM and 512 MB of flash memory, of which approximately 79 MB is available for user applications

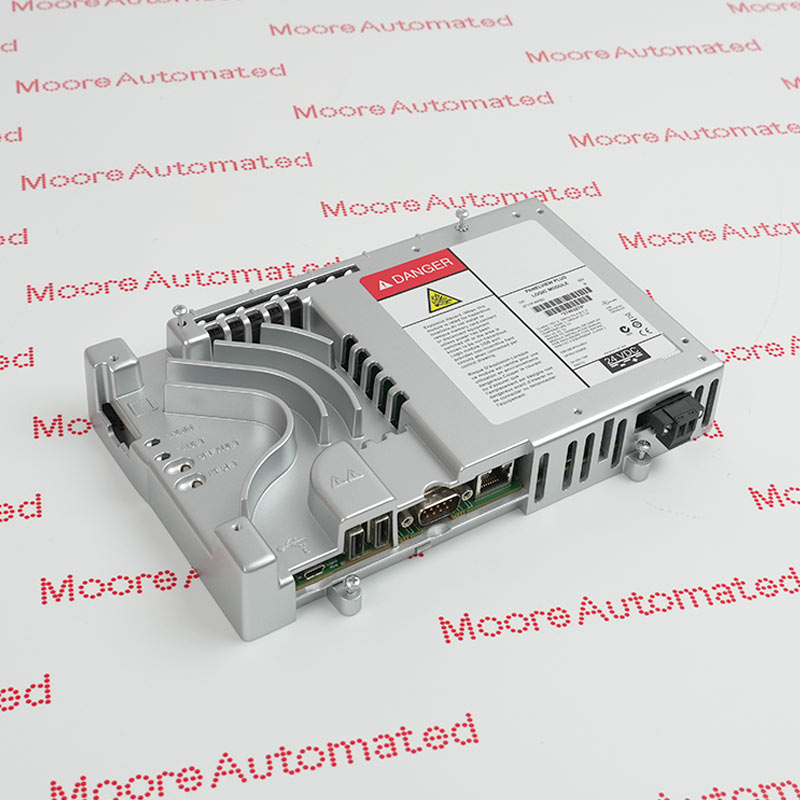

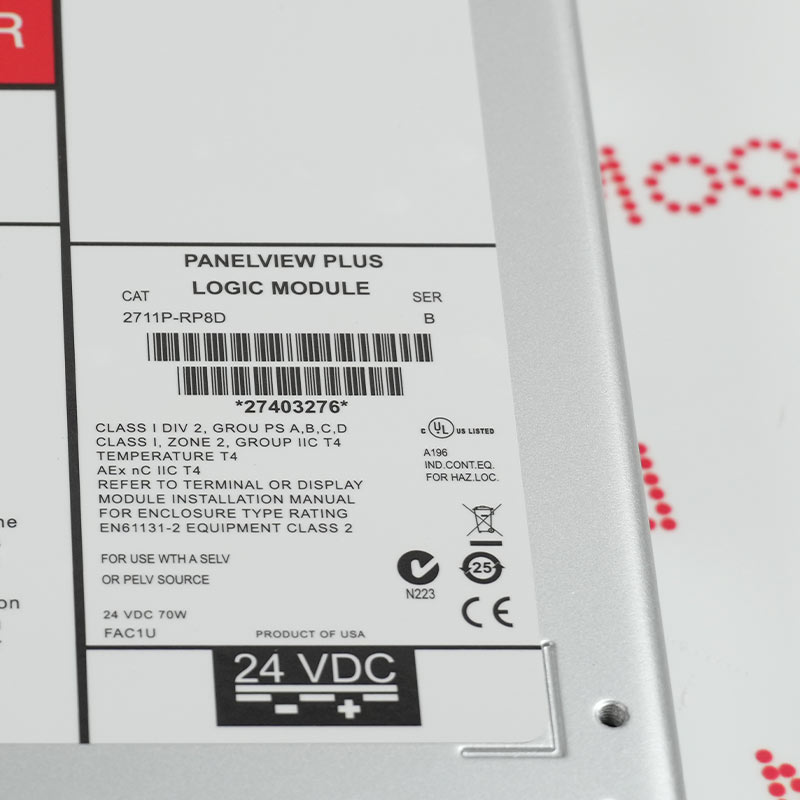

The 2711P-RP8D logic module is a component of the Allen Bradley Panelview Plus 6 series, designed to enhance the functionality of human-machine interface applications. It features DC input and ample memory capacity, including 512 MB of RAM and 512 MB of flash memory. Approximately 79 MB of flash memory is available for user-defined applications, providing sufficient space for storing critical data and programs.
The 2711P-RP8D module is specifically compatible with Panelview Plus 6 series terminals ranging from 700 to 1500. In terms of environmental specifications, the module operates stably in environments with temperatures ranging from 0 to 55 degrees Celsius and non-condensing relative humidity from 5% to 95%. In summary, this module is designed for efficient operation in a variety of industrial environments.
The 2711P-RP8D Allen Bradley PanelView Plus 6 Logic Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 2711P-RP8D PanelView Plus 6 Logic Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module boasts robust communication capabilities, supporting Ethernet and RS-232 protocols for easy integration into a wider range of control systems. It also features a network interface for connecting other communication modules, further enhancing its versatility. Designed specifically for marine applications and certified for marine use, this logic module ensures reliability in marine environments.
Human Machine Interface (HMI) Processing: It is the core processing unit of the PanelView Plus 6 700 to 1500 display terminals (7-inch to 15-inch screens).
Machine-Level Visualization: Used to run the FactoryTalk View Machine Edition (ME) runtime software, enabling operators to graphically monitor and control industrial machinery.
Industrial Connectivity: Enables data exchange between the HMI and PLCs (such as ControlLogix or CompactLogix) via Ethernet/IP or RS-232 interfaces.
Marine and Harsh Environments: This module is marine certified for use in marine control systems and offshore applications.
Revision Part #
Also known as
2711P-RP8D/A
2711P-RP8D Ser A, Series A, Rev A
2711P-RP8D/B
2711P-RP8D Ser B, Series B, Rev B
2711P-RP8D/X
2711P-RP8DX, Series X, Rev X
