What is the Genius I/O system? What industrial challenges does it solve?
Developed by GE Fanuc Automation, the Genius I/O system is a distributed fieldbus-based I/O platform designed for industrial automation and control environments. It enables reliable communication between PLCs and field devices such as sensors, actuators, and drives via the Genius bus network. By distributing I/O and placing modules closer to field devices, the system significantly reduces wiring complexity, improves installation efficiency, and enhances the overall system reliability of large or complex production facilities.
Durability and Long-Term Value
One of the key reasons for its continued use is its robust reliability and long-distance communication capabilities. Genius I/O supports longer cable lengths, multiple network nodes, and strong interference immunity, making it particularly suitable for harsh industrial environments such as steel mills, automotive manufacturing plants, and power plants. Its modular architecture supports incremental expansion and easy node replacement without requiring major system redesign, thus helping to extend the lifespan of traditional automation systems.
Why is Genius I/O still widely used in many industrial plants?
Architecture and Typical Application Scenarios
At the heart of the Genius I/O architecture is a bus controller that communicates with multiple distributed I/O modules via the Genius bus. Each node provides local diagnostics and status reporting, accelerating troubleshooting and predictive maintenance. Typical applications include production line control, process automation, remote monitoring stations, and other mission-critical operations requiring reliable communication. Even with the continuous development of industrial Ethernet technology, Genius I/O systems continue to be widely deployed and supported in many existing automation infrastructures.

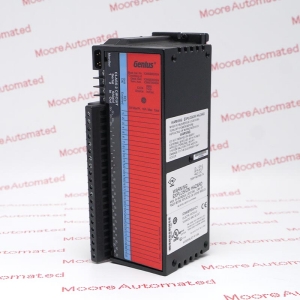

The IC660TBD024 is a 24-point discrete input module designed for GE Fanuc Automation's Genius I/O platform. It allows direct connection of field input signals (typically from pushbuttons, limit switches, proximity sensors, and other discrete devices) to the Genius bus network. The module supports 24VDC input signals and provides built-in diagnostics, status indication, and fault reporting to help operators quickly identify line or equipment problems. Its rugged, industrial-grade design and seamless integration with the Genius bus controller make it ideal for distributed control architectures requiring reliable, real-time input acquisition.
The IC660HHM501S is a portable handheld monitor designed for use with the GE Fanuc Automation Genius I/O system for configuration and diagnostics. It allows technicians to directly view module status, read fault information, and perform basic setup or troubleshooting on-site. With its simple display and keyboard interface, it is primarily used during commissioning and maintenance for quick access and management of Genius I/O devices.
The IC660TBR100 is a terminal block for the GE Fanuc Automation Genius I/O system. It serves as the wiring and connection base for compatible relay output modules (such as the IC660BBR100), providing terminals for field device connections and supporting reliable signal distribution in industrial control applications. Designed for harsh environments, this component ensures a stable electrical interface between field devices and I/O modules.
The IC660EBA104 is an electronic assembly module for the GE Fanuc Automation Genius I/O system. As the core electronic component of this modular analog I/O module, it supports input and output current loop signals (typically 4–20 mA) for connecting industrial sensors and actuators. This module integrates signal conditioning, isolation, and diagnostics functions, enabling reliable operation in harsh industrial environments and serving as part of a distributed control architecture.
The IC660EBD021 is an electronic component in the GE Fanuc Automation Genius I/O system. As a control electronics component of a 16-channel input/output I/O module, it enables communication between field devices (such as sensors and actuators) and the PLC system. This module supports configurable I/O functions and built-in diagnostics, making it suitable for reliable signal acquisition and control in industrial automation environments.
Automation Spare Parts & Controller
Stability Guarantee
Reliable spare parts and controllers are essential for maintaining optimal system performance and minimizing downtime. Moore Automated’s high-quality components ensure seamless integration, precise control, and extended equipment life, enabling industries to maintain productivity and operational efficiency in harsh environments.
The GE Genius I/O System, provided by GE Fanuc Automation, is a distributed I/O solution that utilizes the Genius bus to connect PLCs to remote field devices, thereby reducing wiring complexity and enhancing the diagnostic capabilities of industrial automation systems.
Q2. In which fields is the Genius I/O System typically used?
It is commonly used in heavy industries such as manufacturing, power plants, and water treatment plants, and is particularly suitable for traditional GE PLC systems that require stable long-distance I/O communication.
Yes, it is still used in many existing GE Genius I/O systems because replacing the entire control system is costly, and many industrial sites continue to operate older equipment.
Q4. What role does Moore Automated play in these products?
Moore Automated is a professional supplier of industrial automation components, providing support for traditional systems such as GE Genius I/O, including replacement modules such as the IC660TBD024, to ensure system maintenance and continuous operation.
Q5. Why do companies choose Moore Automated?
Companies choose Moore Automated because it helps them quickly locate discontinued or hard-to-find automation components, ensuring system operation without having to upgrade the entire control system.
