Features:

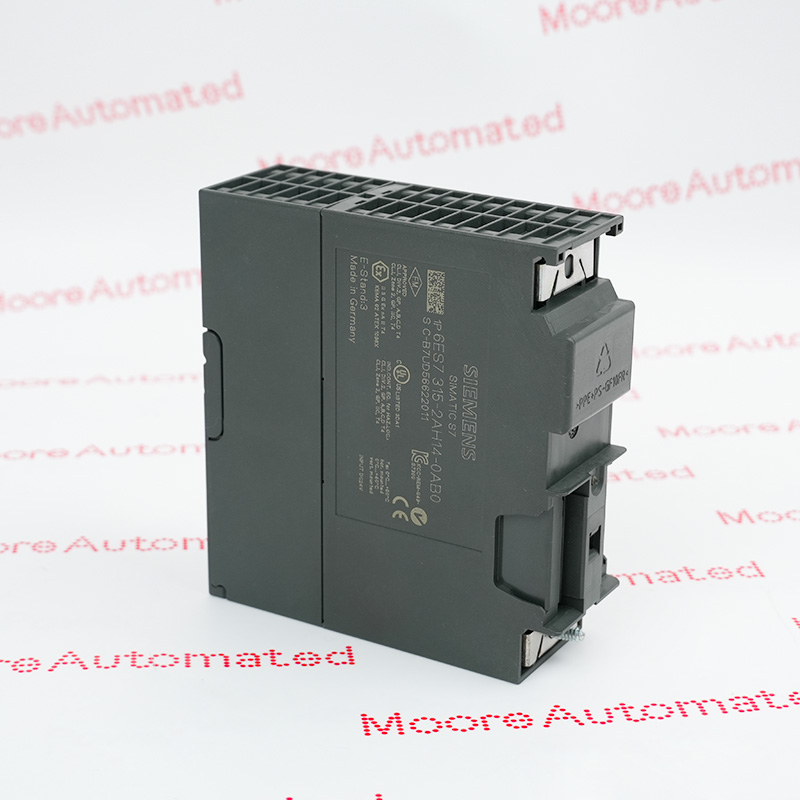

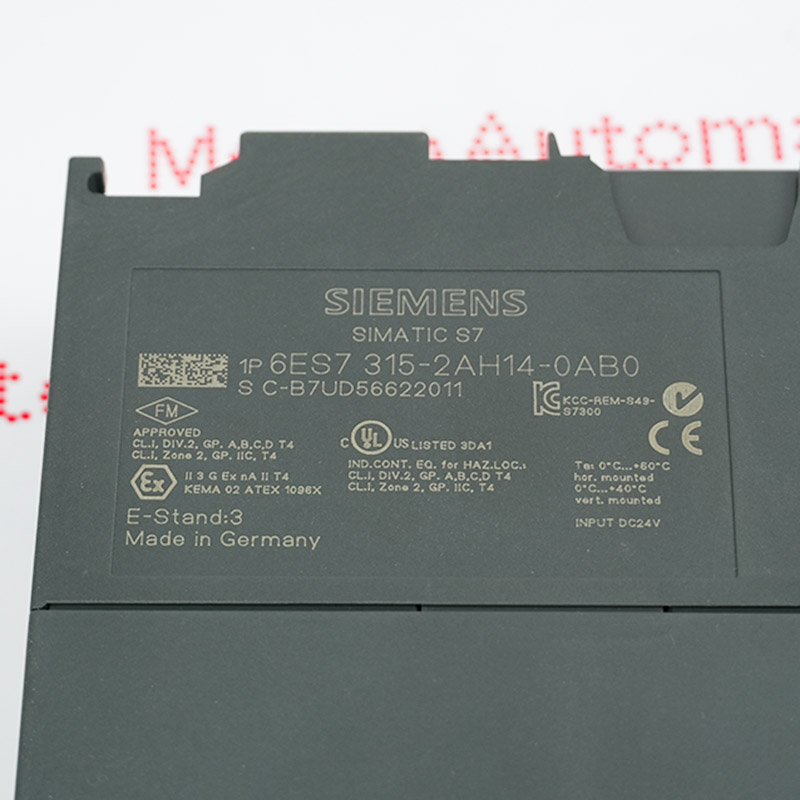

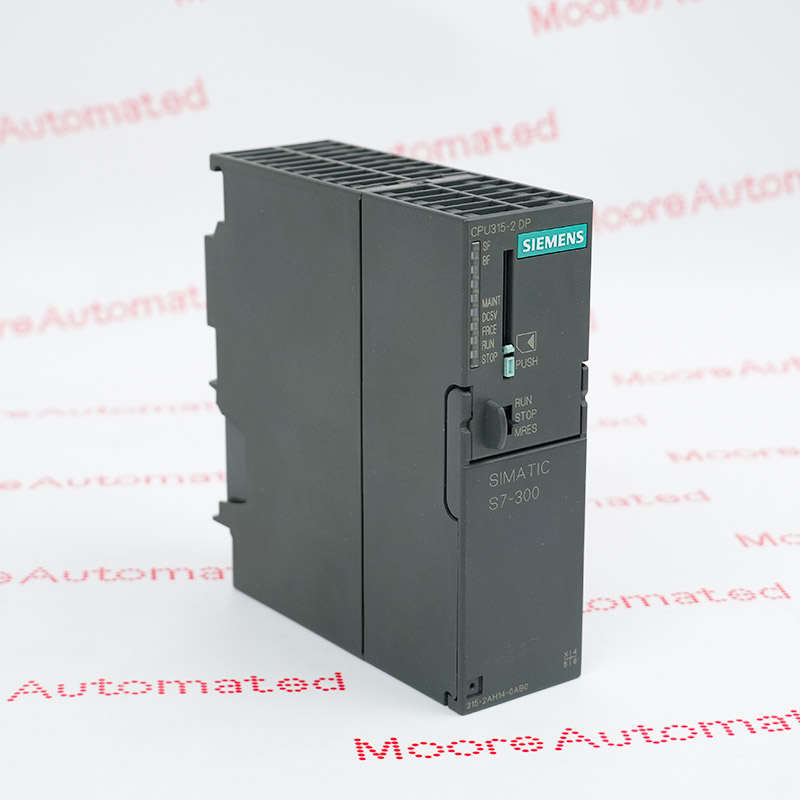

- SIMATIC S7-300, CPU 315-2DP central processing unit with MPI
- Integrated power supply 24 V DC work memory 256 KB
- 2nd interface DP master/device Micro Memory Card required
This module is responsible for processing user programs, managing input and output signals, and coordinating the real-time operation of the entire control system. With its efficient instruction processing capabilities and stable system architecture, it supports various complex control logics and is suitable for manufacturing production lines, process control systems, and basic industrial automation scenarios.
In industrial applications, the 6ES7315-2AH14-0AB0 boasts excellent communication scalability and system integration capabilities, enabling data interaction with distributed I/O, human-machine interfaces (HMIs), and monitoring systems to achieve coordinated operation of centralized control and distributed execution.
The 6ES7315-2AH14-0AB0 Siemens CPU Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7315-2AH14-0AB0 CPU central processing unit MANUAL(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7315-2AH14-0AB0 operates by running user programs through a periodic scanning mechanism, mainly consisting of three stages: input sampling, logic operation, and output refresh. The system first reads the field input signals and stores them in the image area. Then, it processes and calculates the data according to the user-written control logic. Finally, the results are output to the execution device, thereby achieving real-time closed-loop control of the industrial process.
Production and Packaging Lines: Used to manage complex functions in automated manufacturing environments.
Distributed I/O Architecture: Ideal for building distributed systems with multiple I/O devices distributed throughout a factory.
Machinery Manufacturing: Commonly used in specialized industrial machinery requiring fast processing and reliable communication.
Retrofitting and Maintenance: As a classic product in the S7-300 series, it is often used as a high-quality spare part for maintaining existing automated systems.
