Features:

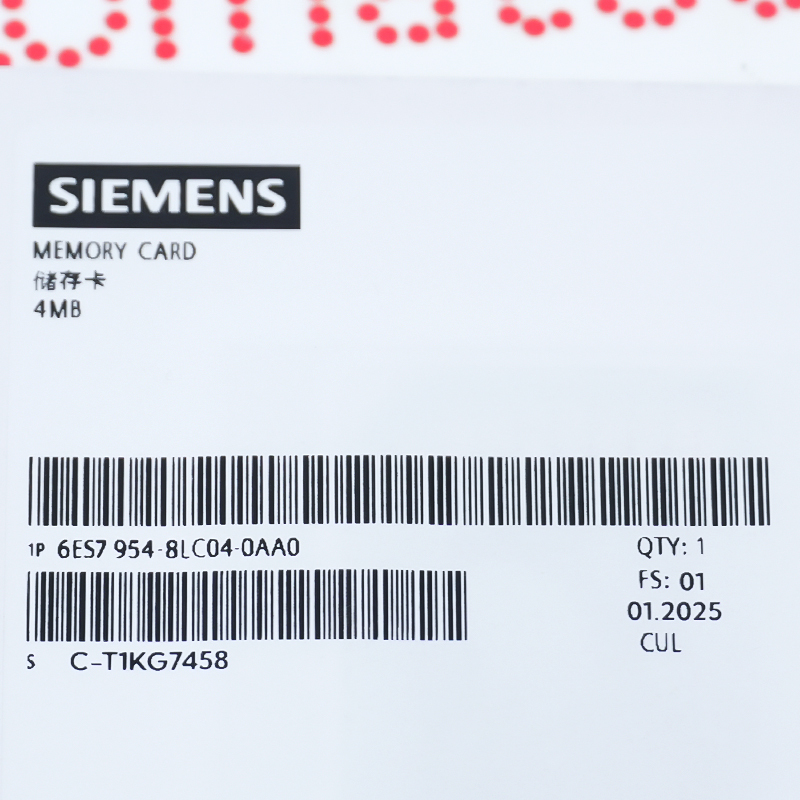

- 6ES7954-8LC04-0AA0 is identified by memory capacity 4 MB within the documented SIMATIC Memory Cards for S7-1x00 and SINAMICS configuration.
- The official specification gives memory technology as 3.3 V flash, which must be retained during selection.
- Commissioning must also preserve storage type (Non-volatile) and the stated connection limits.

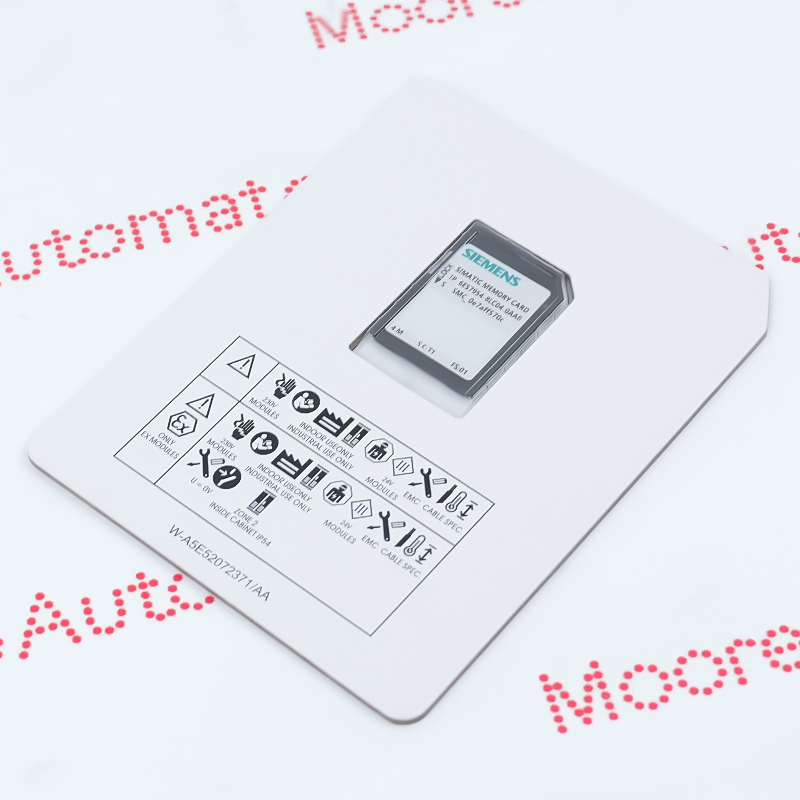

An active 4 MB SIMATIC Memory Card using 3.3 V flash storage for supported S7-1200/S7-1500 CPUs and SINAMICS equipment. The card stores user programs, configuration and device data and must be selected by its complete LC04 article number and required capacity. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official SIMATIC Memory Cards for S7-1x00 and SINAMICS documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 6ES7954-8LC04-0AA0.
Siemens 6ES7954-8LC04-0AA0 4 MB 3.3 V flash memory card manual, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete 6ES7954-8LC04-0AA0 identity and compare memory capacity, memory technology and storage type with the installed design before approving a replacement.
Check the exact CPU or SINAMICS device manual, firmware and required project size. Preserve the original card image and protection settings before moving or replacing non-volatile program storage.
Power down when required by the target device, handle the card with ESD precautions, create a verified project backup, insert it in the correct orientation and confirm CPU startup and diagnostics.
