Features:
- Integrated digital, analog and relay I/O supports compact machine-control panels without a full remote rack.
- A PROFINET interface connects engineering, HMI and controller communications within the configured network.
- The current V4.7 hardware provides 150 KB work memory and supports expansion by signal and communication modules.

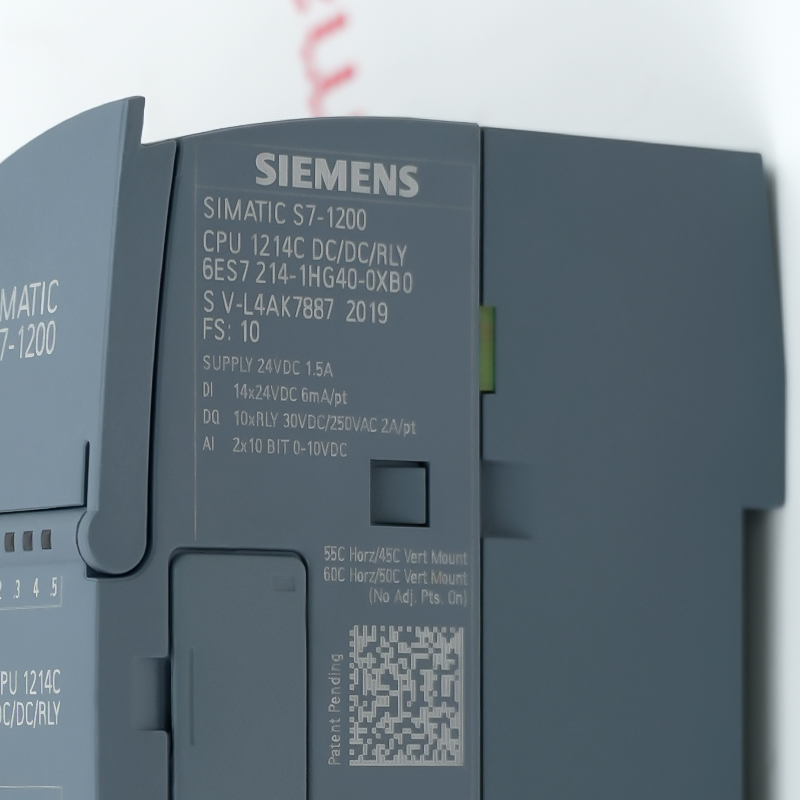

The Siemens 6ES7214-1HG40-0XB0 is a SIMATIC S7-1200 CPU 1214C DC/DC/relay with 14 integrated 24 V DC digital inputs, 10 relay outputs rated 2 A, two 0–10 V analog inputs and 150 KB integrated work memory.
Manufacturer reference: Siemens Industry Mall record and English data sheet for 6ES7214-1HG40-0XB0.
Exact-model verification and sourcing support are available for 6ES7214-1HG40-0XB0.
Siemens 6ES7214-1HG40-0XB0 official documentation and relevant product resources, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Map all 14 digital inputs, 10 relay outputs and two analog inputs to the original project. Verify input commons, relay supply groups, inductive-load suppression and the analog signal reference before energization.
Restore the device name, IP parameters, topology and configured communication partners from the controlled TIA Portal project. Check online diagnostics before the machine is allowed to resume automatic operation.
The CPU supports one signal board, up to eight signal modules and up to three communication modules within the published power and configuration limits. Confirm every installed module and the backplane current budget.
