Features:
- Four configurable analog outputs support ±10 V, 0-20 mA and 4-20 mA signals in an S7-1200 station.
- The module provides 14-bit voltage and 13-bit current resolution with diagnostics for supported fault conditions.
- A compact 24 VDC design, 100 m shielded-cable allowance and standard S7-1200 configuration suit distributed machine control.

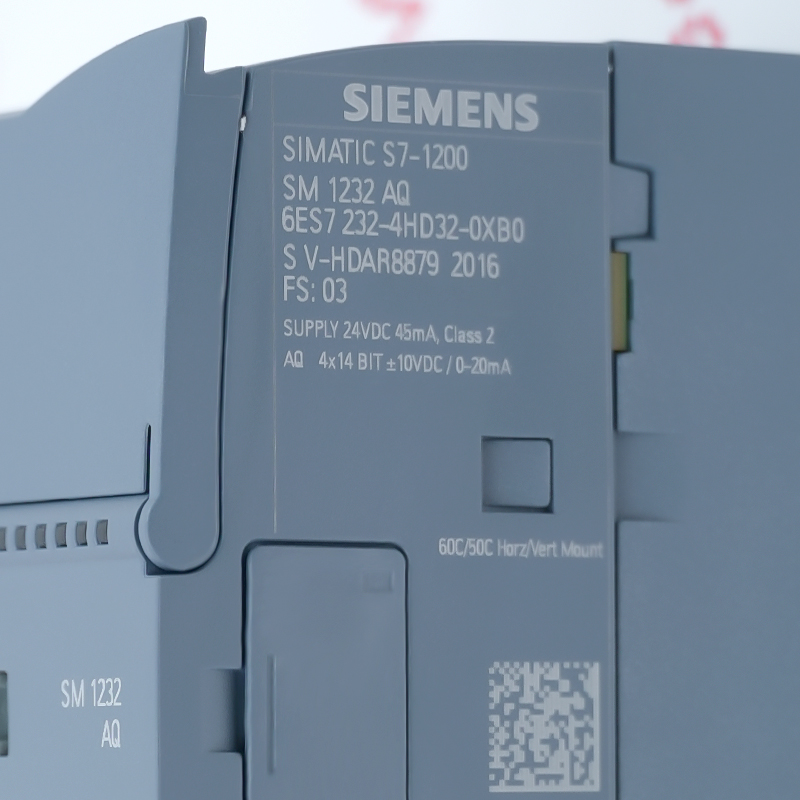

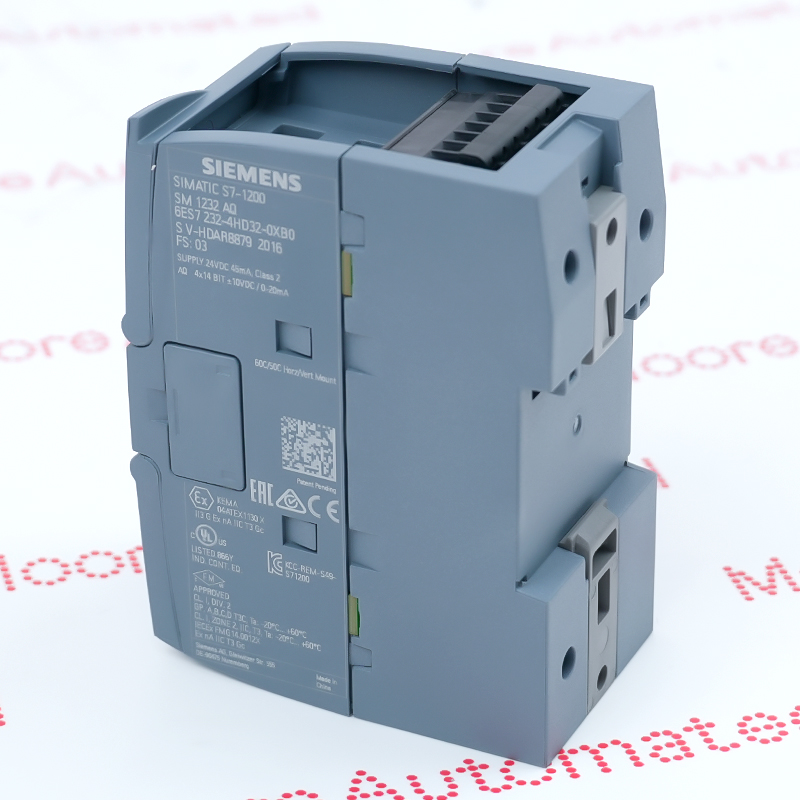

A SIMATIC S7-1200 SM 1232 module providing four analog outputs selectable for ±10 V, 0-20 mA or 4-20 mA operation. Voltage channels use 14-bit resolution and current channels use 13-bit resolution; the module operates from 24 VDC and requires the correct front connector, channel configuration and load limits. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official SIMATIC S7-1200 SM 1232 analog output modules documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 6ES7232-4HD32-0XB0.
Siemens 6ES7232-4HD32-0XB0 Four-channel analog output module exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Configure each channel for voltage or current and confirm range, substitute value and diagnostic behavior in TIA Portal.
Keep voltage loads above 1 kΩ, current loads below 600 Ω and shielded routes within the documented 100 m limit.
Test every channel with a meter or safe load before reconnecting final actuators and enabling automatic control.
