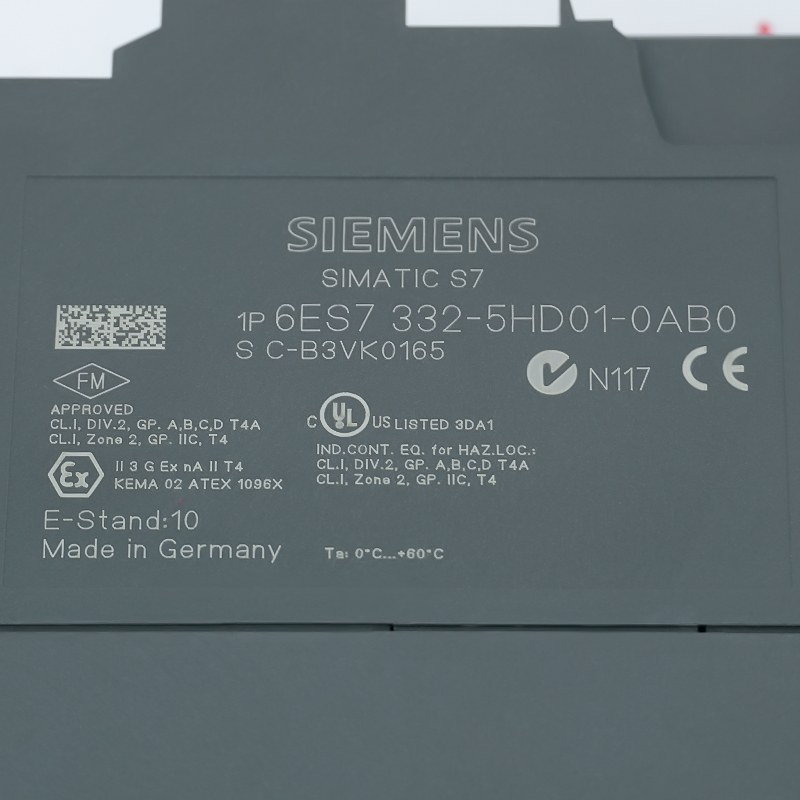

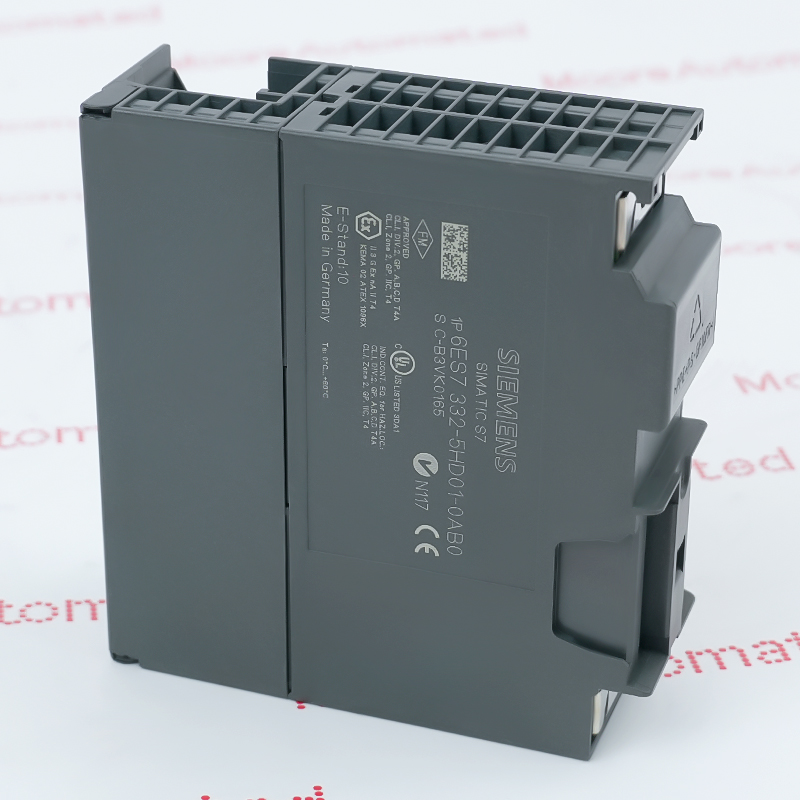

      Siemens 6ES7332-5HD01-0AB0
      Siemens 6ES7332-5HD01-0AB0
      Siemens 6ES7332-5HD01-0AB0
      Siemens 6ES7332-5HD01-0AB0
      Siemens 6ES7332-5HD01-0AB0
      Siemens 6ES7332-5HD01-0AB0

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available
      Four-channel analog output module

      6ES7332-5HD01-0AB0

      Product Information:

      The Siemens 6ES7332-5HD01-0AB0 is a SIMATIC S7-300 SM 332 isolated analog output module with four voltage/current channels, 11/12-bit resolution and diagnostics. It supports the documented active-backplane arrangement for removal and insertion during operation.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          The Siemens 6ES7332-5HD01-0AB0 is a SIMATIC S7-300 SM 332 isolated analog output module with four voltage/current channels, 11/12-bit resolution and diagnostics. It supports the documented active-backplane arrangement for removal and insertion during operation. Selection must preserve the four-channel assignment, configured voltage or current ranges, 20-pin connector and external 24 V DC supply. Confirm safe substitute values and connected load limits before enabling the outputs.

          Source boundary

          Official source: Siemens SiePortal product record and official S7-300 module data.
        • APPLICATIONS

          Where it may be used

          Apply this output module only where the configured signal ranges, loads, diagnostics and front-connector wiring agree with the existing S7-300 project.

          Valve command outputs

          Generates configured analog references for compatible valve positioners and process actuators.

          Drive reference outputs

          Provides isolated voltage or current setpoints to drives using the selected signal range.

          Four-loop signal renewal

          Restores four documented command channels while retaining the validated address and wiring.

          Active-rack maintenance

          Supports controlled module exchange when the rack uses the specified active backplane.
      Technical specifications for

      6ES7332-5HD01-0AB0

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Siemens
      • Product Category:
        PLC and Machine Control
      • Product family:
        SIMATIC S7-300
      • Module type:
        SM 332 analog output module
      • Analog outputs:
        4 isolated channels
      • Voltage ranges:
        0 to 10 V; 1 to 5 V; -10 to +10 V
      • Current ranges:
        0 to 20 mA; 4 to 20 mA; -20 to +20 mA
      • Resolution:
        Up to 12 bit
      • Conversion time:
        0.8 ms
      • External supply:
        24 V DC
      • Maximum L+ no-load current:
        240 mA
      • Backplane current:
        60 mA maximum at 5 V DC
      • Typical power loss:
        3 W
      • Diagnostics:
        Supported
      • Isolation test voltage:
        500 V DC
      • Front connector:
        20-pin
      • Product weight:
        Approximately 220 g
      • Lifecycle:
        Product cancellation / spare part
      • Stock Availability:
        20
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      SM 332 4 AO U/I 6ES7 332-5HD01-0AB0 S7-300 SM332 isolated analog output 6ES73325HD010AB0 6ES7332 5HD01 0AB0

      Information

      Overview Manuals Analog Range Setup Diagnostic Behavior Active-Bus Service

      Features:

      • Four isolated outputs can be parameterized for the documented voltage or current ranges.
      • Up to 12-bit resolution and 0.8 ms conversion support compact multi-loop command generation.
      • Diagnostics and active-backplane compatibility aid controlled maintenance of an engineered S7-300 rack.
      The Siemens 6ES7332-5HD01-0AB0 is a SIMATIC S7-300 SM 332 isolated analog output module with four voltage/current channels, 11/12-bit resolution and diagnostics. It supports the documented active-backplane arrangement for removal and insertion during operation.

      Source reference: Siemens SiePortal product record and official S7-300 module data.

      Exact-item verification and sourcing support are available for 6ES7332-5HD01-0AB0.
      Siemens 6ES7332-5HD01-0AB0 official documentation and verified product resources, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Parameterize each channel for its required voltage or current range and confirm the connected load, open-circuit behavior and substitute value before enabling the process.

      Use the module and CPU diagnostics to identify configuration, supply and channel faults. Preserve the original diagnostic settings so replacement does not change plant alarm behavior.

      Removal and insertion during operation require the documented active backplane and an approved maintenance procedure. Verify front-connector keying, channel isolation and safe output states before exchange.

      Technical notes

      The Siemens 6ES7332-5HD01-0AB0 is a SIMATIC S7-300 SM 332 isolated analog output module with four voltage/current channels, 11/12-bit resolution and diagnostics. It supports the documented active-backplane arrangement for removal and insertion during operation. Source: Siemens SiePortal product record and official S7-300 module data. Match 6ES7332-5HD01-0AB0, the SM 332 four-output function, 20-pin front connector and installed rack arrangement. Other SM 332 variants can have different channel counts and electrical ranges. Back up the hardware configuration and channel parameters, isolate field energy where required, transfer the connector without altering conductors, then test every output at a safe command value.

      Output Module Identity

      Match 6ES7332-5HD01-0AB0, the SM 332 four-output function, 20-pin front connector and installed rack arrangement. Other SM 332 variants can have different channel counts and electrical ranges.

      Range & Load Checklist

      Back up the hardware configuration and channel parameters, isolate field energy where required, transfer the connector without altering conductors, then test every output at a safe command value.

      Customs & Shipping Data

      • Packed shipping dimensions
        Confirmed after final packing
        Manufacturer packaging record: 15.0 × 12.8 × 5.0 cm.
      • Packed shipping weight
        Confirmed after final packing
        Net product weight: 0.252 kg (Siemens product record).
      • HS / customs code
        85389091
        Published in the Siemens product record; confirm destination-country tariff requirements before shipment.
      • Country of origin
        Germany
        Published in the Siemens product record.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 6ES7332-5HD01-0AB0

      • Which voltage ranges can the four outputs generate?

        The documented ranges are 0–10 V, 1–5 V and -10 to +10 V, selected through the S7-300 hardware configuration.

      • Are current outputs available on the same hardware?

        Yes. The module supports 0–20 mA, 4–20 mA and -20 to +20 mA ranges when correctly parameterized and wired.

      • What resolution should be used in engineering calculations?

        Siemens specifies up to 12-bit resolution; the effective resolution depends on the selected output range.

      • Does the module report diagnostic faults?

        Diagnostics are supported. The exact messages depend on channel configuration, external supply, wiring and CPU diagnostic handling.

      • Can it be removed while the rack remains active?

        Only a rack using the documented active backplane and an approved maintenance procedure supports removal/insertion in operation.

      • Why must the 20-pin connector be checked before ordering?

        Several S7-300 analog-output variants look similar. Connector type, channel count, range set and order number must all match.

      • Where are the electrical limits documented?

        The Manuals tab links to the official Siemens S7-300 module data manual, while the Siemens product record supplies lifecycle and logistics data.

      • What information helps verify a spare module?

        Provide the complete order number, quantity, module-front photo, rack type, configured ranges, destination and delivery requirement.
