Features:
- Yokogawa AIP830-101 S2 is a dedicated operation keyboard for single-loop control in CENTUM process-automation systems. It combines mode-selection and confirmation-key functions in a console- or VESA-mounted operator interface, allowing direct loop adjustments while preserving the documented PC connection, panel layout and assigned station configuration.

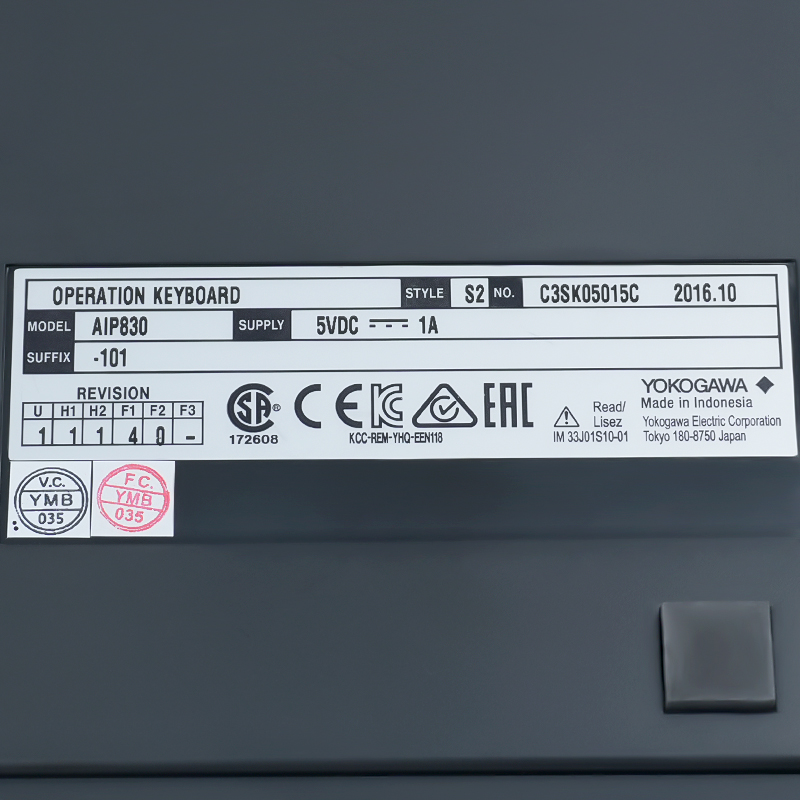

- Confirm model AIP830, suffix -101, PC connection, console mounting, VESA option and operator-station configuration before replacement.
- Isolate the connected operator station, preserve USB and console assignments, secure the keyboard or VESA bracket and retain the documented panel layout.
Verify mode selection, confirmation-key response, all operator controls and the connected CENTUM station display before operational handover.
The AIP830-101 gives an operator direct single-loop control and confirmation functions at the documented CENTUM workstation. Its console connection, mounting method and assigned station configuration must remain consistent with the original operator interface.
Official source boundary: Open the official Yokogawa AIP830 product specification PDF. Unverified nearby-model values are withheld.
AIP830-101 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete model, article number and installed configuration before replacement. All links open in a new page.
Verify mode selection and operator-key response at the assigned console.
Retain the Type A confirmation-key behavior defined by suffix 0.
Confirm USB connection, mounting and screen association before handover.
