Features:
- Sixteen digital output channels for documented ProSafe-RS applications.
- Designed for 24 VDC final-element control within configured safety functions.
- S33 execution, field wiring and safety logic must be matched exactly.

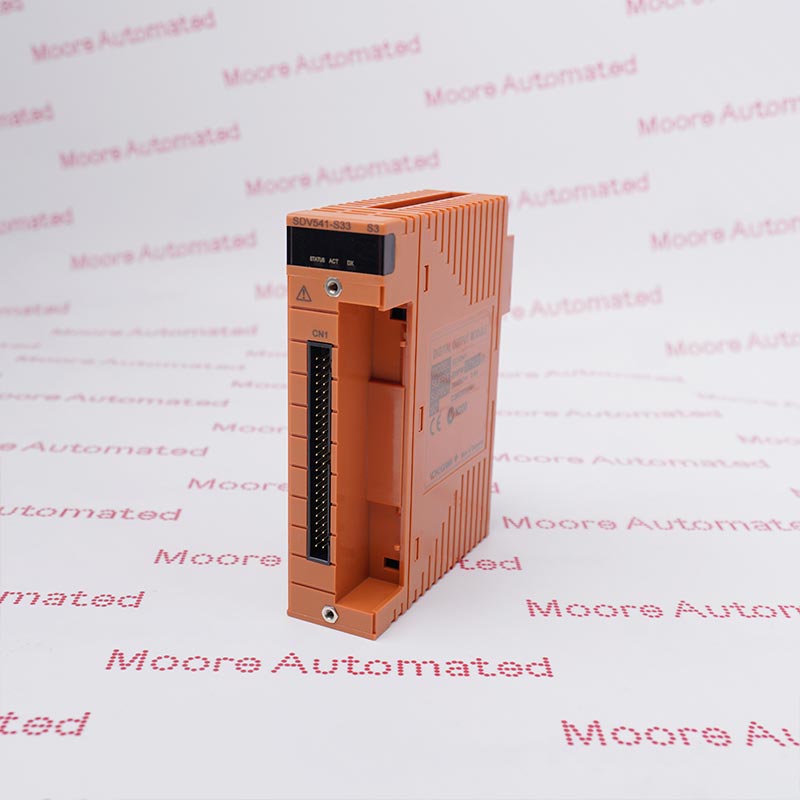

SDV541-S33 is a Yokogawa ProSafe-RS 16-channel digital output module for controlling 24 VDC final elements in safety instrumented functions. The S33 execution must remain matched to its node, baseplate, field wiring, output loading and safety application configuration, including the approved cause-and-effect and proof-test records.
Confirm the complete SDV541-S33 code, ProSafe-RS node and slot, baseplate, 24 VDC field supply, channel loading, wiring and approved safety application before replacement. verify module diagnostics, safe-state behavior, individual output operation and the approved safety-function proof test before process release.
Official source boundary: Use the exact English manufacturer document and installed project record for compatibility decisions.
SDV541-S33 technical documentation and verified Moore Automated resources.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm each channel, final element, safe-state action and cause-and-effect reference.
Match 24 VDC feeds, commons, terminal assembly and output load to the cabinet design.
Exercise outputs under the approved test plan and record diagnostics and device response.
