Features:
- The 128 kB program-memory configuration executes IEC 61131-3 machine logic while preserving the I/O and supply identity encoded by 1SAP121100R0071.
- Onboard resources combine 6 digital inputs, 6 relay outputs, 2 analog inputs and 1 analog output with Ethernet and RS-485 communication for a compact controller that can be extended by up to ten compatible I/O modules.
- The relay output stage, 100-240 V AC supply and separately selected terminal blocks must be matched to the installed wiring before the CPU is commissioned.

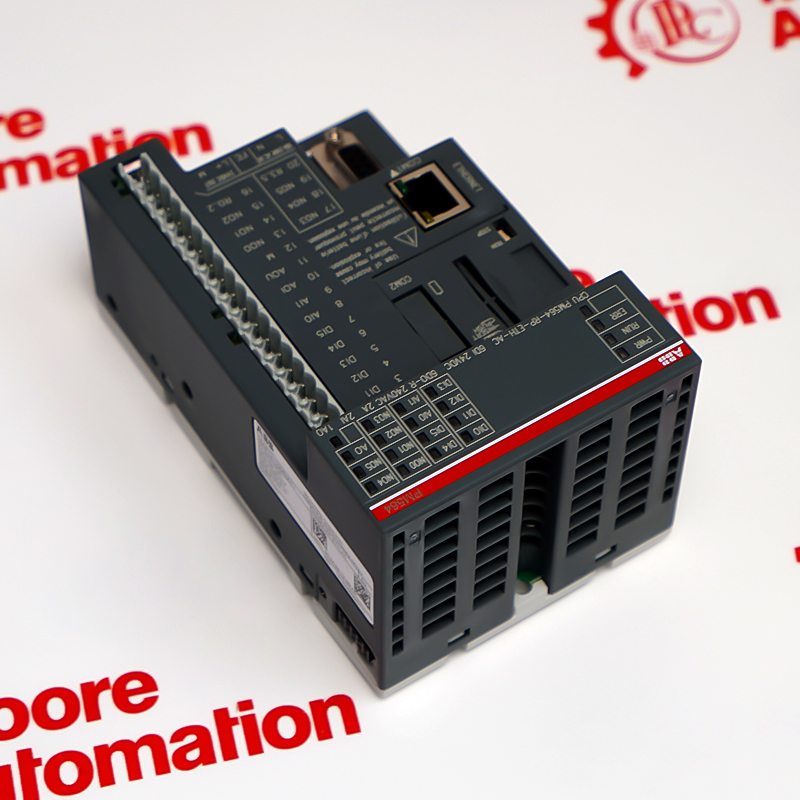

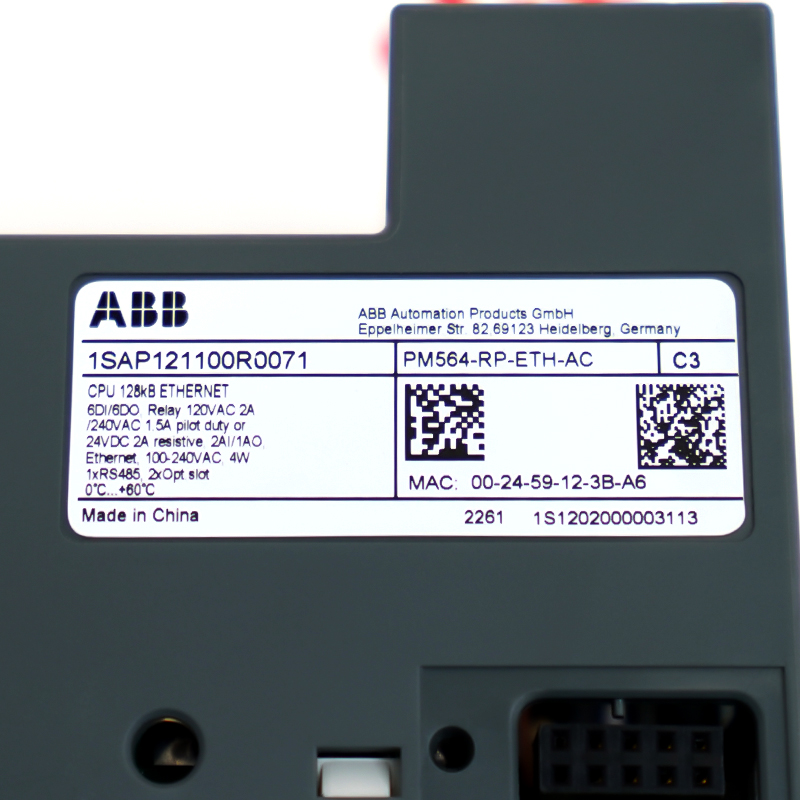

ABB identifies PM564-RP-ETH-AC 1SAP121100R0071 as a AC500-eCo programmable logic controller with 128 kB program memory, integrated Ethernet and 6 digital inputs, 6 relay outputs, 2 analog inputs and 1 analog output. The relay-output configuration and 100-240 V AC supply are fixed by the complete order code, so nearby PM554, PM556, PM564 and PM566 variants are not interchangeable by housing alone. The CPU supports IEC 61131-3 programming through Automation Builder, an integrated RS-485 COM1 port and an optional second serial interface. Ethernet variants provide approved programming and communication services including Modbus TCP, HTTP, FTP, SNTP, DHCP and UDP. Up to ten S500 or S500-eCo I/O modules may be attached within the documented system limits. Pluggable terminal blocks and optional clock, serial or memory accessories are selected separately. A replacement check therefore covers the full article number, supply, output type, onboard I/O, terminal style, firmware and retained application project.
ABB PM554, PM556, PM564, PM566 Processor Module Data Sheet 3ADR010065 Rev. 11 (2024-01-05).
Moore Automated supports exact-item verification and spare-part enquiries for the ABB PM564-RP-ETH-AC 1SAP121100R0071.
ABB PM564-RP-ETH-AC 1SAP121100R0071 official processor-module data sheet (excerpt), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the cabinet is designed for the documented 100-240 V AC CPU supply and retains the correct protective device. Do not substitute the 24 V DC PM564-RP-ETH without redesign.
Identify relay commons, field loads and both analog input circuits before moving conductors. Restore analog scaling and the single analog-output assignment from a checked project backup.
Record the IP address, enabled services, COM settings and optional accessory modules. Match the complete R0071 order code before commissioning the replacement.
