Features:
- The 512 kB program-memory configuration executes IEC 61131-3 machine logic while preserving the I/O and supply identity encoded by 1SAP121500R0071.
- Onboard resources combine 6 digital inputs, 6 transistor outputs, 2 analog inputs and 1 analog output with Ethernet and RS-485 communication for a compact controller that can be extended by up to ten compatible I/O modules.
- The transistor output stage, 24 V DC supply and separately selected terminal blocks must be matched to the installed wiring before the CPU is commissioned.

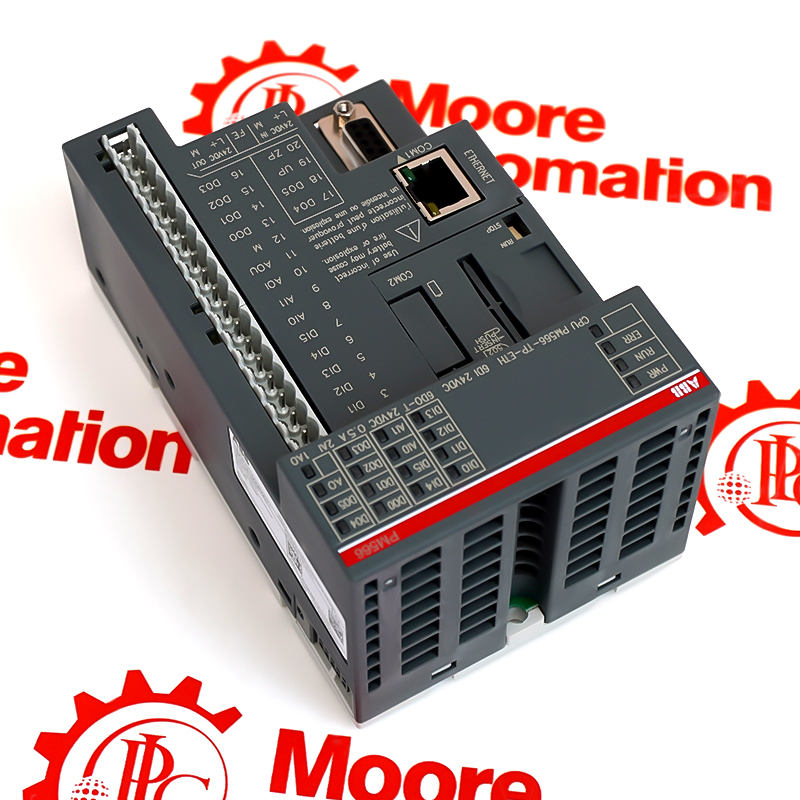

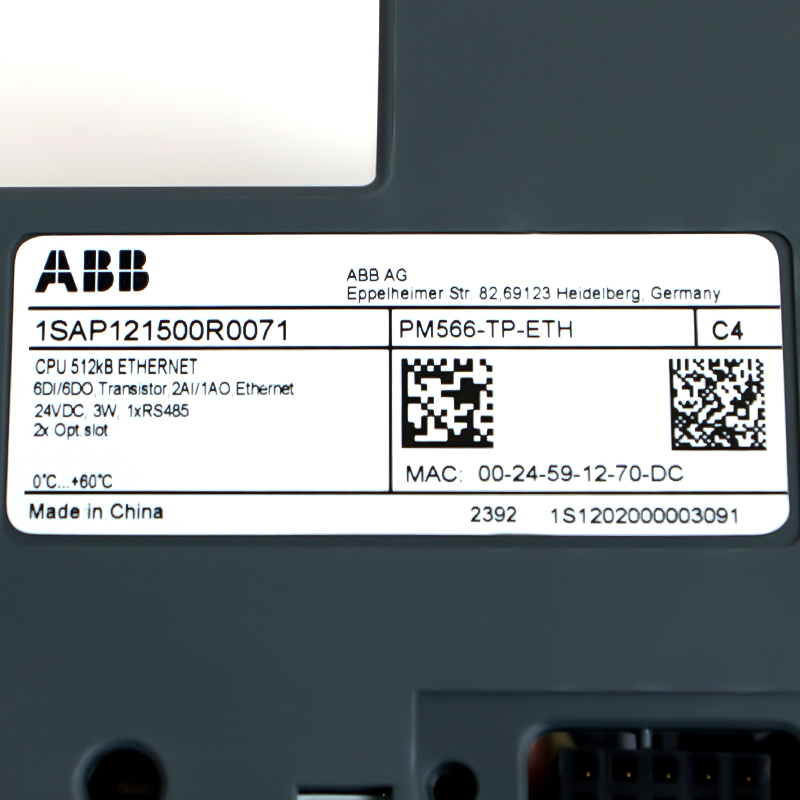

ABB identifies PM566-TP-ETH 1SAP121500R0071 as a AC500-eCo programmable logic controller with 512 kB program memory, integrated Ethernet and 6 digital inputs, 6 transistor outputs, 2 analog inputs and 1 analog output. The transistor-output configuration and 24 V DC supply are fixed by the complete order code, so nearby PM554, PM556, PM564 and PM566 variants are not interchangeable by housing alone. The CPU supports IEC 61131-3 programming through Automation Builder, an integrated RS-485 COM1 port and an optional second serial interface. Ethernet variants provide approved programming and communication services including Modbus TCP, HTTP, FTP, SNTP, DHCP and UDP. Up to ten S500 or S500-eCo I/O modules may be attached within the documented system limits. Pluggable terminal blocks and optional clock, serial or memory accessories are selected separately. A replacement check therefore covers the full article number, supply, output type, onboard I/O, terminal style, firmware and retained application project.
ABB PM554, PM556, PM564, PM566 Processor Module Data Sheet 3ADR010065 Rev. 11 (2024-01-05).
Moore Automated supports exact-item verification and spare-part enquiries for the ABB PM566-TP-ETH 1SAP121500R0071.
ABB PM566-TP-ETH 1SAP121500R0071 official processor-module data sheet (excerpt), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the larger program target and restore the six digital inputs, six transistor outputs, two analog inputs and one analog output from the verified project.
Assign high-speed inputs, interrupt functions and PWM outputs only to documented onboard channels. Validate timing and electrical levels with the machine I/O design.
Check Ethernet, COM1 and any optional COM2 configuration before startup. Reconfirm analog scaling and safe output states before enabling actuators.
