- ABB S800 I/O DO810 BSE008510R1
- 16-channel digital output module
- It provides sixteen 24 V DC current-sourcing transistor output channels

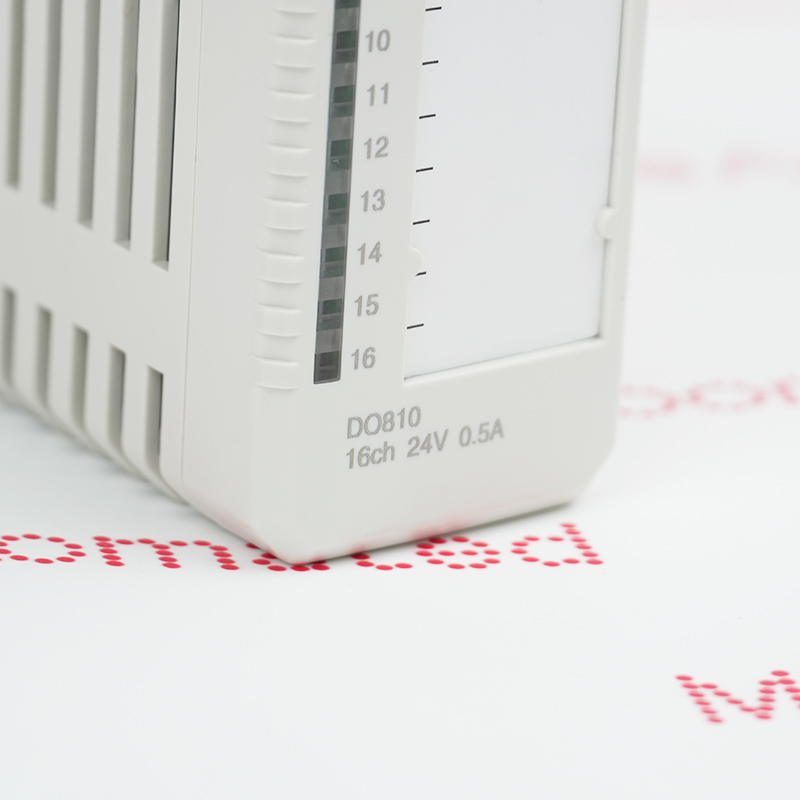

The ABB DO810 3BSE008510R1 is a 16-channel digital output module in the ABB S800 I/O. The manufacturer specifies it provides sixteen 24 V DC current-sourcing transistor output channels. Two isolated groups of eight channels drive field loads in an S800 station. Its ordering identity combines DO810 with 3BSE008510R1; both references should be checked when selecting a replacement. Engineering confirmation should also cover load current, 24 V DC field supply, output polarity and TU8xx termination unit and the installed base or terminal hardware before the unit is placed into service.
Values are based on the manufacturer's official ABB S800 I/O documentation. Final selection must be verified against the complete article number and installed configuration.
The ABB DO810 3BSE008510R1 16-channel digital output module is supported by Moore Automated for verified industrial replacement and spare-part requirements.
ABB DO810 3BSE008510R1 16-channel digital output module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
DO810 3BSE008510R1 should be engineered using the official ABB S800 I/O documentation, with the stated 24 V DC transistor outputs matched to the configured signal path.
Before installation, confirm load current, 24 V DC field supply, output polarity and TU8xx termination unit, the associated base or terminal hardware, and the field-side electrical conditions shown in the manufacturer's instructions.
Use the complete article number when comparing units. Channel configuration, connected equipment and any safety or communication requirements must remain consistent with the verified design.
