- DO818 3BSE069053R1 is the complete listed product identity for the supplied hardware execution.
- The documented hardware is an ABB 32-channel 24 v dc digital output module selected for its assigned equipment role.
- Installation requires a verified match to Advant S800 I/O, the connected assemblies and the approved configuration.
DO818 3BSE069053R1 is an ABB 32-channel 24 v dc digital output module selected by its complete product identity and documented equipment role. Its suitability depends on the installed Advant S800 I/O system, hardware execution, interfaces and application requirements matching the supplied unit. Visual similarity or a shortened code is not proof of interchangeability.
Before replacing DO818 3BSE069053R1, record the full nameplate, installed position, connector or terminal arrangement, paired equipment and relevant ABB service information. After installation, verify power, communication and control interfaces, complete the approved functional checks and confirm stable operation before returning the equipment to service.
The DO818 3BSE069053R1 ABB 32-channel 24 V DC digital output module is supplied subject to exact-item verification. Current revision, lifecycle status, availability and supplied scope are confirmed in the written quotation.
ABB DO818 3BSE069053R1 documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
Two groups of sixteen channels

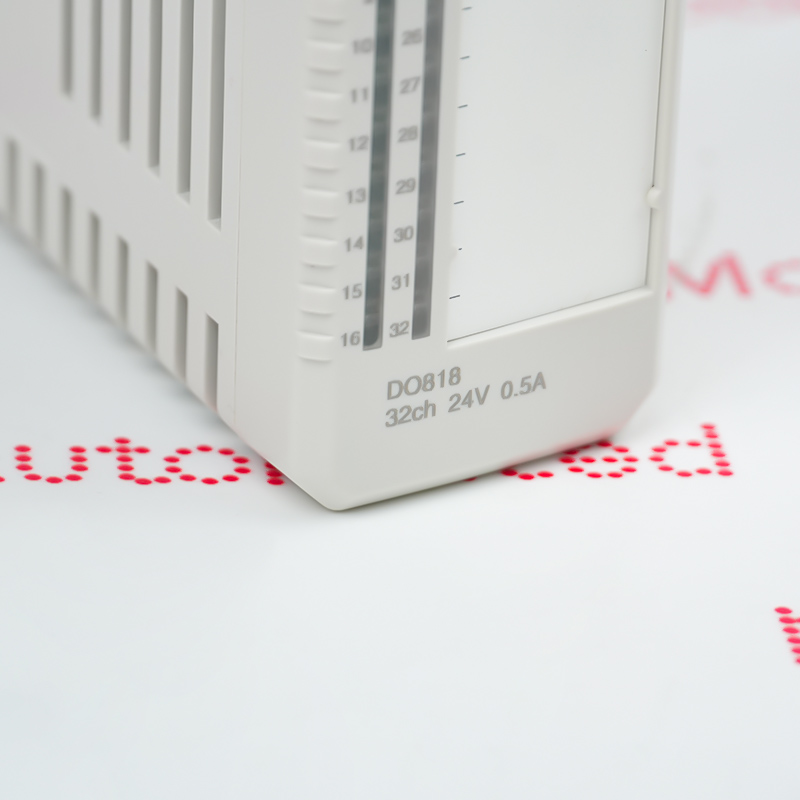

DO818 supplies 32 documented 24 V DC outputs. Confirm channel allocation, field polarity and the 0.5 A channel load before applying power to the replacement module.
Termination hardware
ABB specifies TU818, TU819 or TU830 for DO818. The installed MTU, terminal numbering and field cable arrangement must match the station documentation.
Output and diagnostic testing
After installation, verify ModuleBus recognition, channel mapping, commanded output state, load response and short-circuit diagnostics before the equipment returns to service.
