Features:

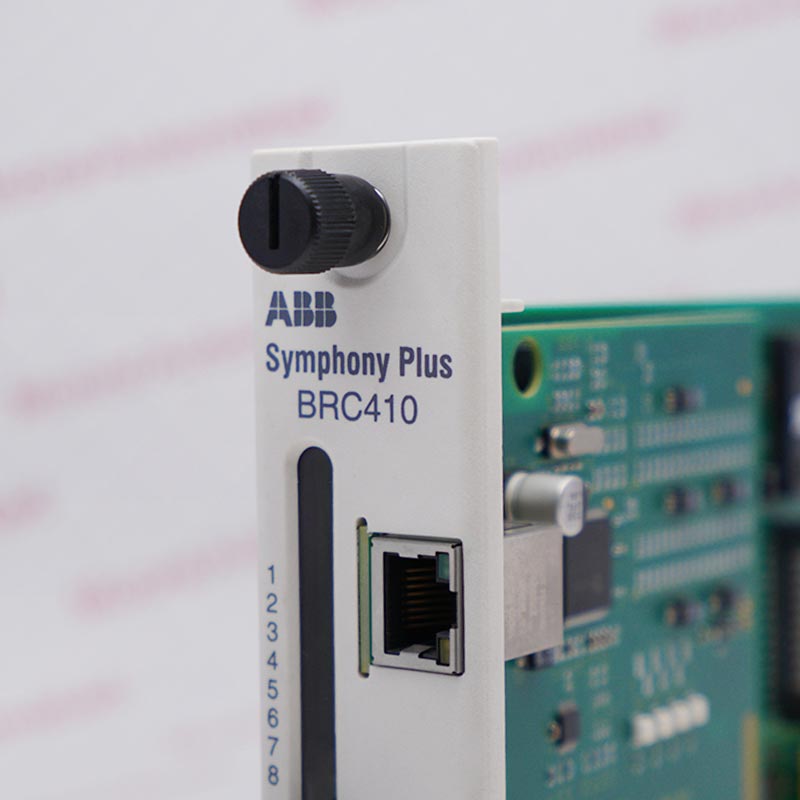

- Symphony Plus (S+ HR / Harmony Rack) High-Performance Bridge Controller
- High-speed processor architecture equipped with expanded NVRAM and Flash memory to support massive control loop configurations and sequence-of-events logging
- Capable of executing up to several thousand function blocks with loop execution speeds configurable down to milliseconds
The Harmony Rack series is a high-performance, high-capacity rack-mount controller designed for distributed control systems (DCS). As a core upgrade and functionally compatible component of the INFI 90 OPEN system, this controller is designed for managing demanding and complex process control applications, offering processing capacity up to 30,000 function blocks.
At the hardware level, it can directly connect to Harmony modular I/O and Harmony rack I/O, and seamlessly supports the S800 I/O series modules via IOR 800, enabling flexible management of analog and digital field channels. At the software level, the module supports multiple mainstream industrial programming languages, including C, function codes, and Batch 90.
The SPBRC410 ABB Controller with Modbus TCP Interface Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SPBRC410 Controller with Modbus TCP Interface Module INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SPBRC410 is fully programmed and configured using ABB S+ Engineering (Composer) software. Within the software, engineers build logic using standard function blocks (CAD drawings) and load the configuration into the module via the plant network. It supports Configuration in RUN (CiR), meaning minor logic modifications or I/O re-assignments can be downloaded to the active controller on a live running plant without tripping the process line.
Furthermore, this module fully supports a dual-redundancy architecture design, enabling smooth and uninterrupted control switching in the event of a main controller failure or anomaly, thereby ensuring the continuous and safe operation of critical industrial production lines. The module operates as follows: The onboard microprocessor, as the core of the entire control system, cyclically acquires process input signals from various field I/O modules via the I/O expansion bus.
Based on pre-compiled control logic and algorithms stored in its internal non-volatile random access memory (NVRAM) and flash memory, the microprocessor performs high-speed real-time calculations and logical processing on this data, and sends the generated control commands back to the process-level actuators through the output channel. During this process, its built-in Modbus TCP communication protocol stack encapsulates real-time process data into standard TCP/IP packets, supporting bidirectional data export and import with the control network via Ethernet interface, and responding in real-time to asynchronous control commands from operator stations or higher-level SCADA systems.
