      ABB SPHSS13
      ABB SPHSS13
      ABB SPHSS13
      ABB SPHSS13
      ABB SPHSS13
      ABB SPHSS13

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Saturday, September 19
      Fast Shipping Available

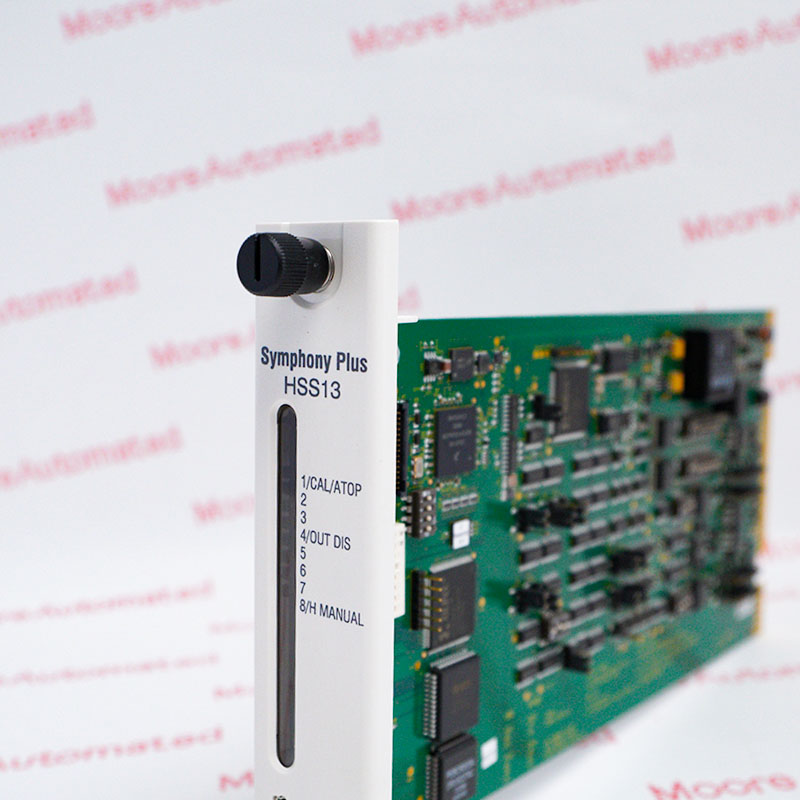

      Hydraulic Servo Module

      SPHSS13

      Spare Part Number

      PNYSPHSS13

      Product Information:

      The ABB SPHSS13 is a hydraulic servo module for the Symphony Plus Harmony platform. It provides closed-loop hydraulic servo positioning with LVDT feedback for demanding control applications.

      The ABB SPHSS13 is documented with four ac/dc lvdt analog inputs, two configurable servo outputs, three isolated digital inputs and one isolated output. These characteristics define the signal, network, or control role that must be matched during replacement.

      The ABB SPHSS13 requires compatible ABB rack, backplane, termination, wiring, and configuration resources. Verify the complete model, field signal requirements, and lifecycle path before installation.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs

      Technical specifications for

      SPHSS13

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        ABB
      • Product Category:
        DCS Systems
      • Spare Part Number:
        YSPHSS13
      • Estimated shipping dimensions:
        3.556 x 17.78 x 29.845 cm
      • Weight:
        0.28 kg
      • Tariff Code:
        853710
      • Country of origin:
        Sweden
      • Place of shipment:
        Xiamen, Fujian, China
      • LVDT inputs:
        4 AC/DC inputs
      • LVDT excitation outputs:
        2
      • Excitation frequency:
        400 Hz to 15 kHz
      • Servo outputs:
        2; ±300 mA, 4–20 mA, or 20–160 mA
      • Digital inputs:
        3 isolated
      • Digital outputs:
        1 isolated
      • Operating temperature:
        0 to 70 °C
      • Power:
        +5 V 576 mA; +15 V 15 mA; −15 V 12 mA; +24 V 335 mA
      • Stock Availability:
        9
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      SPHSS13 YSPHSS13

      Information

      Overview Manuals Signal Handling Integration Details Application Guidance

      Features:

      • Four AC/DC LVDT analog inputs
      • Two configurable servo outputs
      • Three isolated digital inputs and one isolated output
      • LVDT excitation from 400 Hz to 15 kHz
      The ABB SPHSS13 is a hydraulic servo module in the Symphony Plus Harmony family. It provides closed-loop hydraulic servo positioning with LVDT feedback for demanding control applications. Its ordering identity should be checked exactly against the installed module before procurement.

      ABB documentation identifies four ac/dc lvdt analog inputs, two configurable servo outputs, three isolated digital inputs and one isolated output. Use the approved rack position, termination hardware, power arrangement, and system configuration specified for the application.

      The ABB SPHSS13 remains identified in ABB Symphony Plus documentation and may be supplied by Moore Automated subject to confirmed stock and revision.
      ABB SPHSS13 Hydraulic Servo Module Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Signal Handling

      ABB SPHSS13 provides closed-loop hydraulic servo positioning with LVDT feedback for demanding control applications. Official ABB documentation identifies four ac/dc lvdt analog inputs, two configurable servo outputs, three isolated digital inputs and one isolated output.

      Integration Details

      Match the complete SPHSS13 order identity with the installed ABB rack, backplane, termination unit, field signal, power supply, and engineering configuration. Commission the replacement only after wiring and channel assignments have been verified.

      Application Guidance

      Active/Available from OEM. Use ABB product documentation to verify the active hardware revision and compatible accessories. Moore Automated supplies high-quality ABB replacement modules and spare parts to help reduce customer downtime.

      Technical notes

      ABB SPHSS13 is a hydraulic servo module for Symphony Plus Harmony. Its technical selection depends on four ac/dc lvdt analog inputs, two configurable servo outputs, three isolated digital inputs and one isolated output, together with the correct rack position, termination hardware, field wiring, and system configuration. Confirm the complete model and documented lifecycle path before replacement or commissioning.
      PRODUCT & ORDER FAQS

      Questions buyers ask about SPHSS13

      • How can I identify the ABB SPHSS13 module?

        Confirm the front label and complete model code SPHSS13. ABB documentation classifies it as a hydraulic servo module in the Symphony Plus Harmony family.

      • What is the compatibility of ABB SPHSS13?

        Use SPHSS13 only with the compatible ABB rack, backplane, termination hardware, and system configuration. Key compatibility points include two configurable servo outputs.

      • What applications use ABB SPHSS13?

        It is used where the control system must provides closed-loop hydraulic servo positioning with LVDT feedback for demanding control applications.

      • What should be checked before installing SPHSS13?

        Isolate power, verify the assigned rack slot, field wiring, termination hardware, signal type, and configuration before inserting or replacing the module.

      • Is ABB SPHSS13 available from stock?

        Availability is subject to the confirmed revision and condition. Moore Automated can check current stock and supply options for SPHSS13.

      • What warranty applies to ABB SPHSS13?

        Moore Automated supplies the confirmed unit with its stated commercial warranty. Request the quotation for the exact warranty term and condition coverage.

      • How is ABB SPHSS13 shipped?

        The module can be prepared for shipment from Xiamen, Fujian, China, with a stated handling time of 3 days and fast-shipping service when available.
      All FAQ
      MORE PARTS IN THE SAME PROJECT?

      Search another part number

      Use the exact manufacturer number where possible.
      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          WHY BUYERS WORK WITH MOORE AUTOMATED

          Clear checks before you commit

          Product-specific verification and written commercial details help purchasing and maintenance teams reduce mismatch risk.

          • Pre-shipment inspection

            Products are inspected before dispatch to verify model, condition and applicable specifications.

          • Documentation available

            Product photos, packaging photos, certificates and datasheets can be provided when available.

          • Clear commercial terms

            Condition, warranty, lead time, included items and shipping terms are stated clearly in writing.

          • 20+ years of experience

            Over 20 years of experience in industrial automation and hard-to-source legacy parts.

          • Product Lifecycle Stage

            Active/Available from OEM

            ABB SPHSS13 is active/available from oem. ABB documentation lists the module within the Symphony Plus portfolio; confirm the required hardware revision at ordering. Moore Automated supplies high-quality ABB replacement modules and spare parts. Practical supply and compatibility support helps customers reduce downtime.
